Electronic Brake Control Module

TERMINALS OF ECU

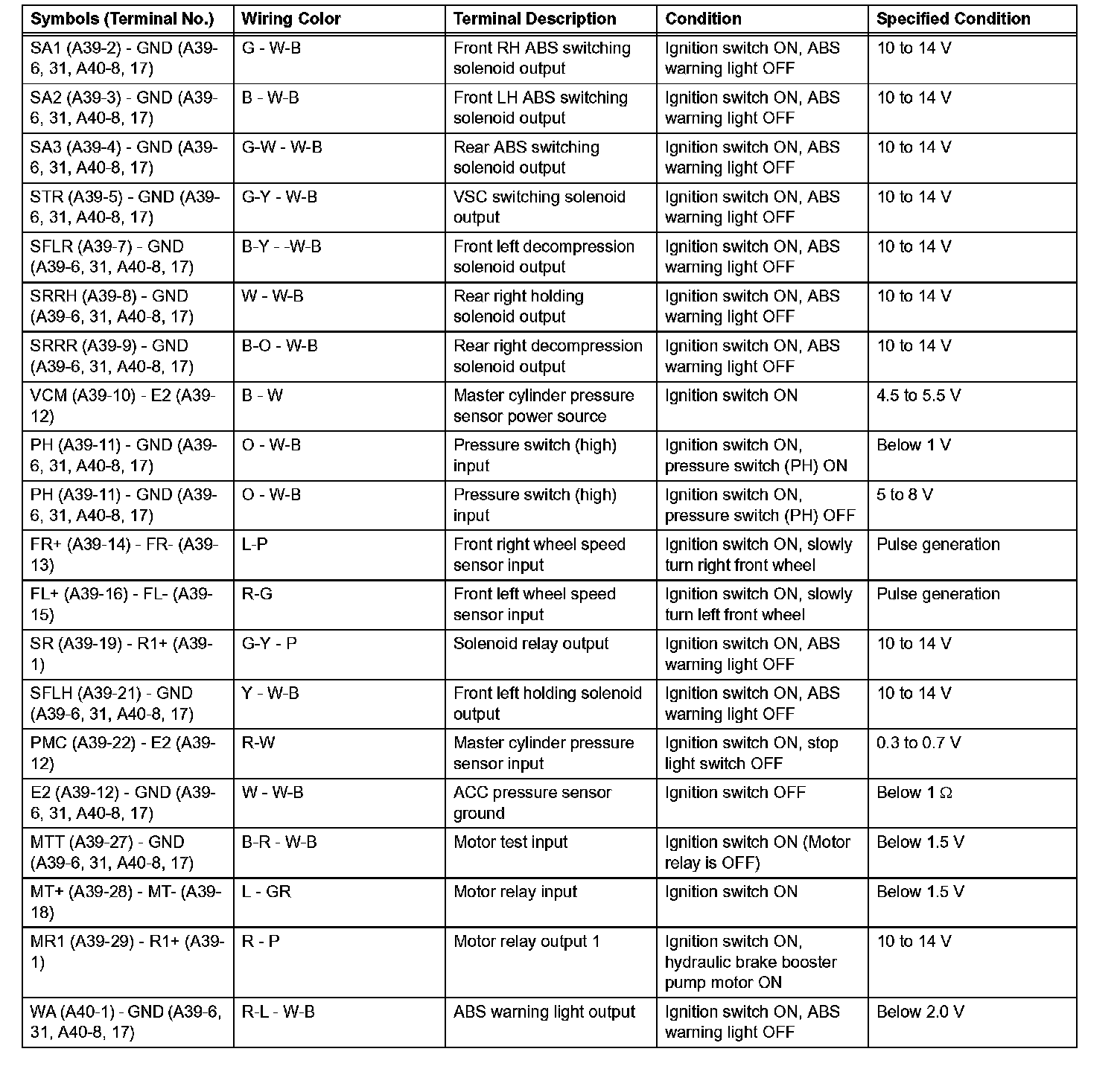

SKID CONTROL ECU (PART 1):

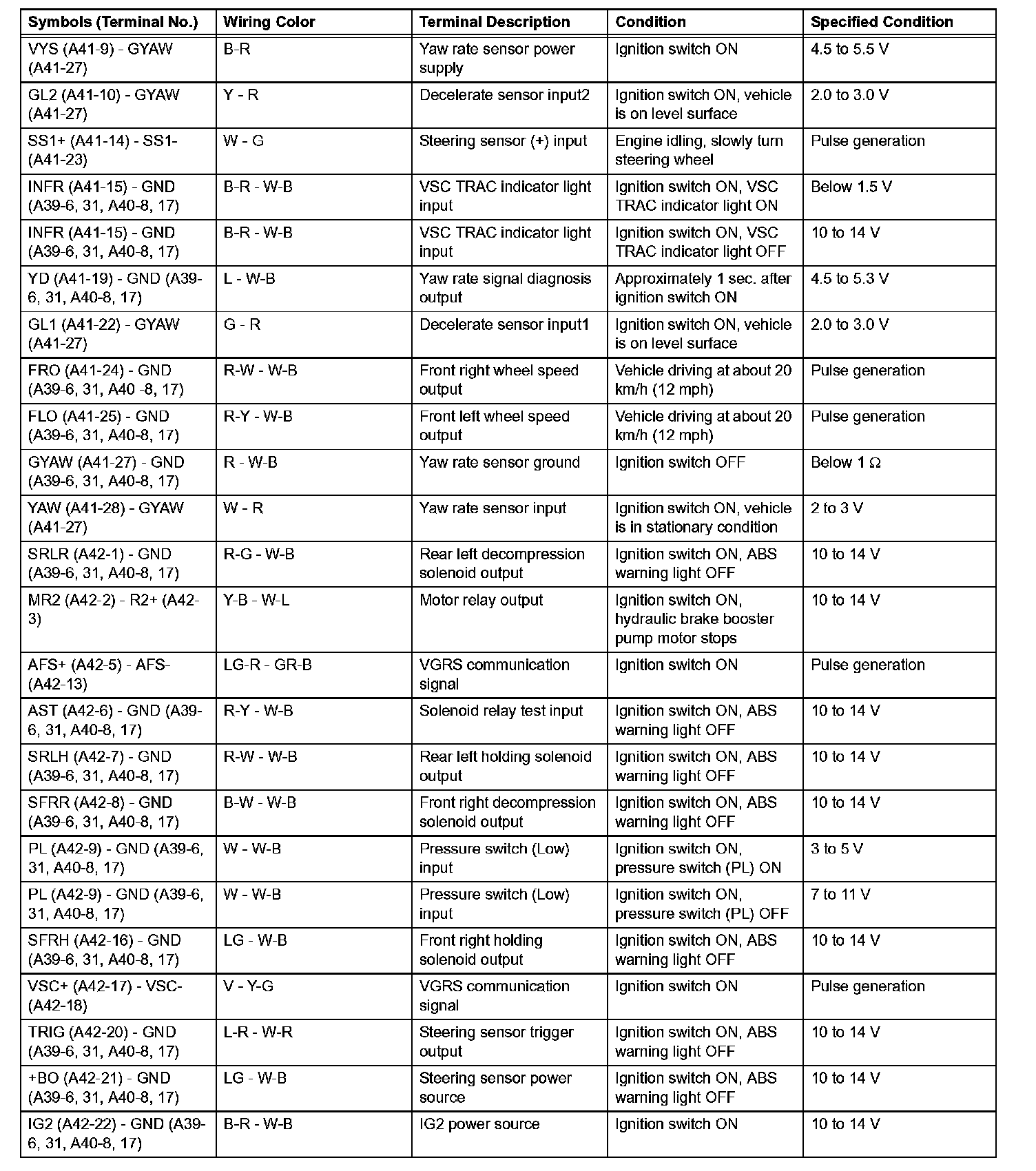

SKID CONTROL ECU (PART 2):

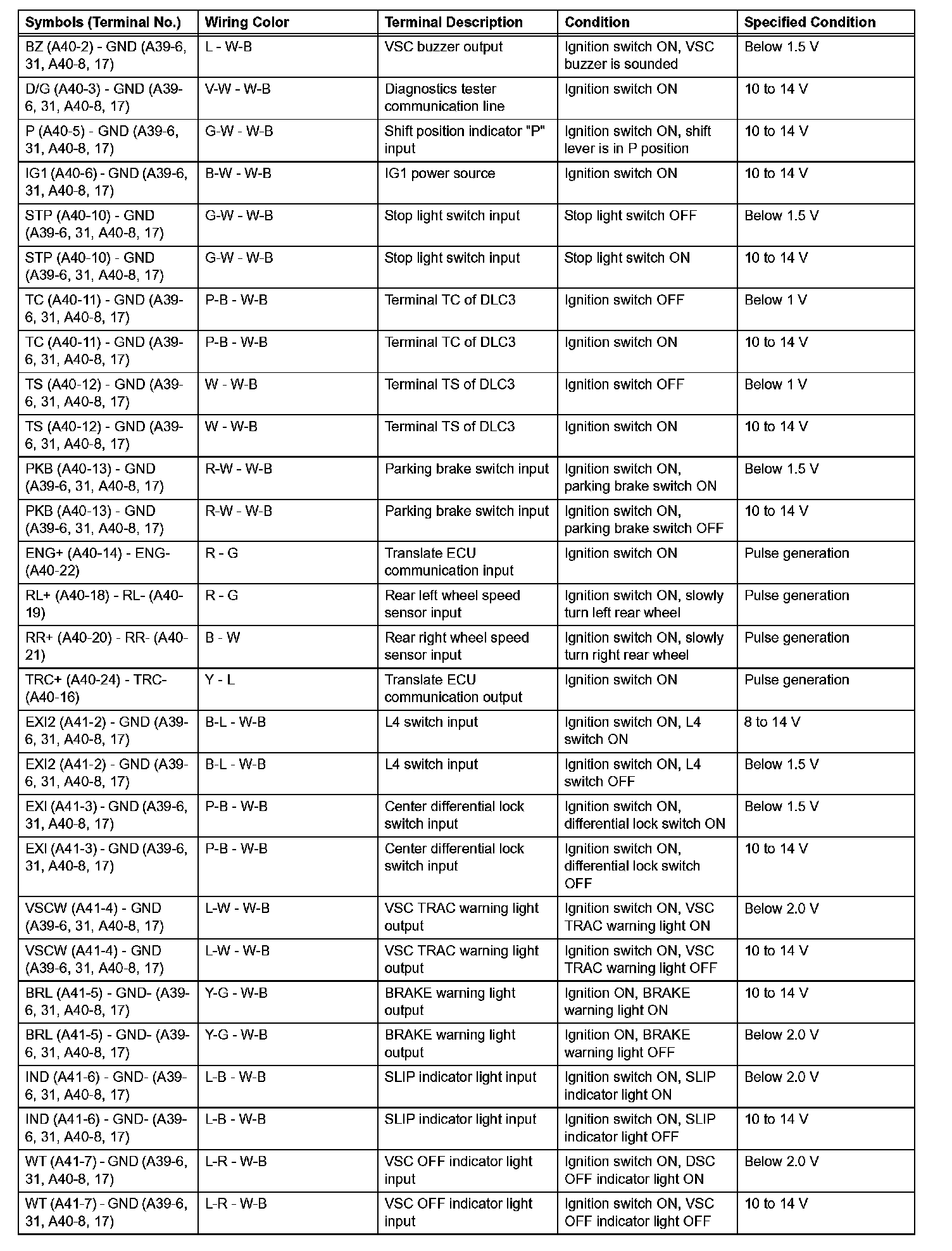

SKID CONTROL ECU (PART 3):

SKID CONTROL ECU (PART 4):

TRANSLATE ECU (PART 1):

TRANSLATE ECU (PART 2):
