Radiator Fan: Notes

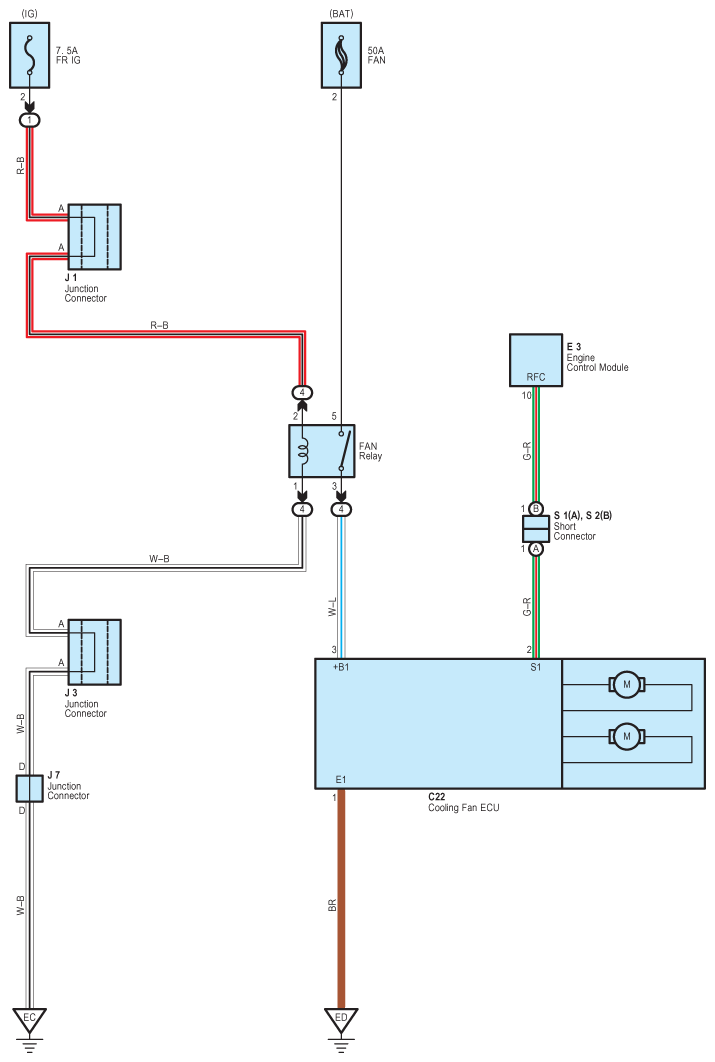

Fig 1: Radiator Fan System Wiring Diagram
G08913939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
