Fuel Lid Opener: Notes

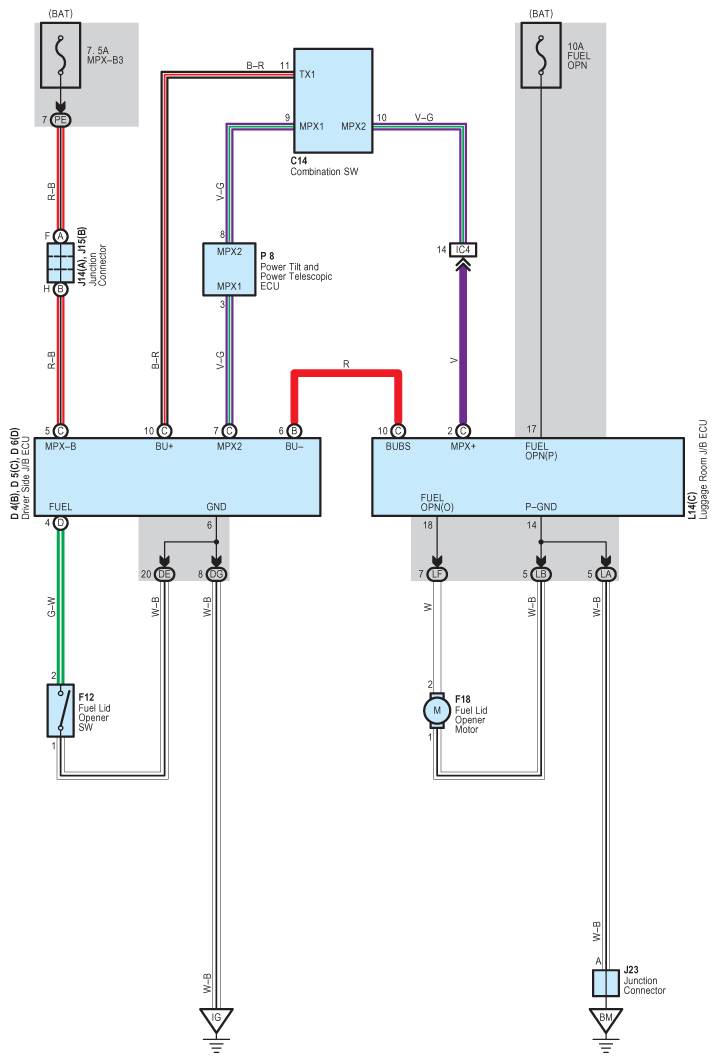

Fig 1: Fuel Lid Opener System Wiring Diagram
G08913816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
