Automatic Glare-Resistant EC Mirror: Notes

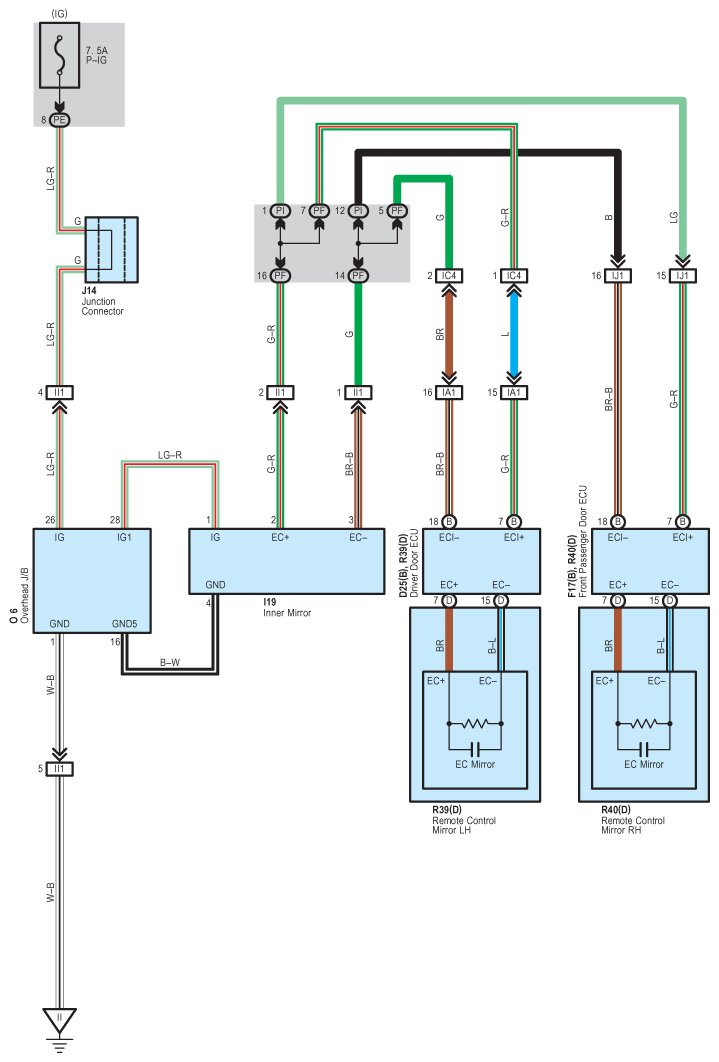

Fig 1: Automatic Glare-Resistant EC Mirror System Wiring Diagram
G08913917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
