Rear Seat Control Switch Power Source Circuit: Wiring Diagram

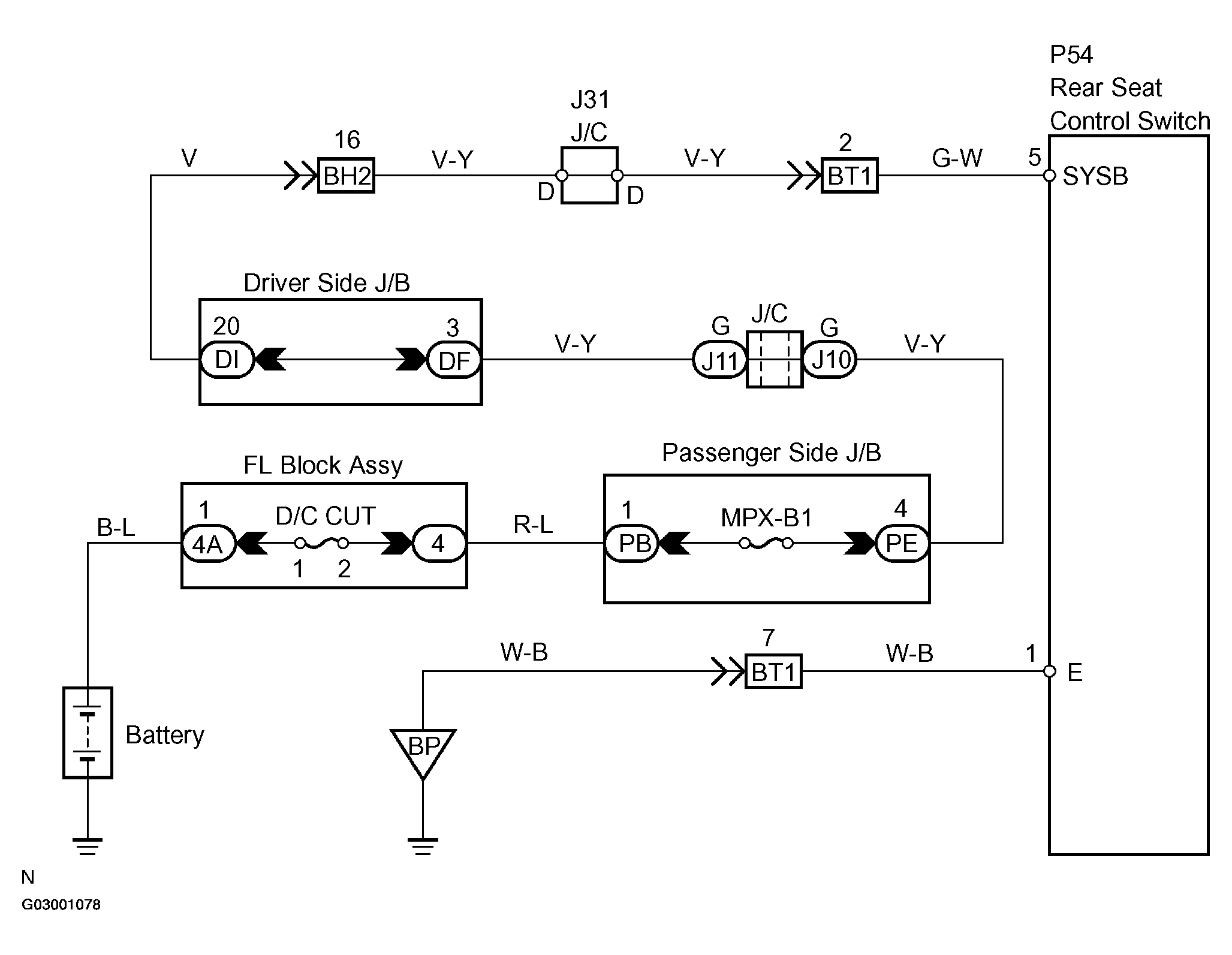

Fig 1: Rear Seat Control Switch Power Source - Wiring Diagram
G03001078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
