Navigation Check Mode (GPS Information)

HINT:

• This mode displays GPS satellite information.
• Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

1. Enter diagnostic mode (see  DIAGNOSTIC START-UP/FINISH   ).
   Fig 1: Displaying Diagnostic Menu

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Select "Navigation Check" from the "Diagnosis MENU" screen.
   Fig 2: Displaying Navigation

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Select "GPS Information" from the "Navigation Check" screen.

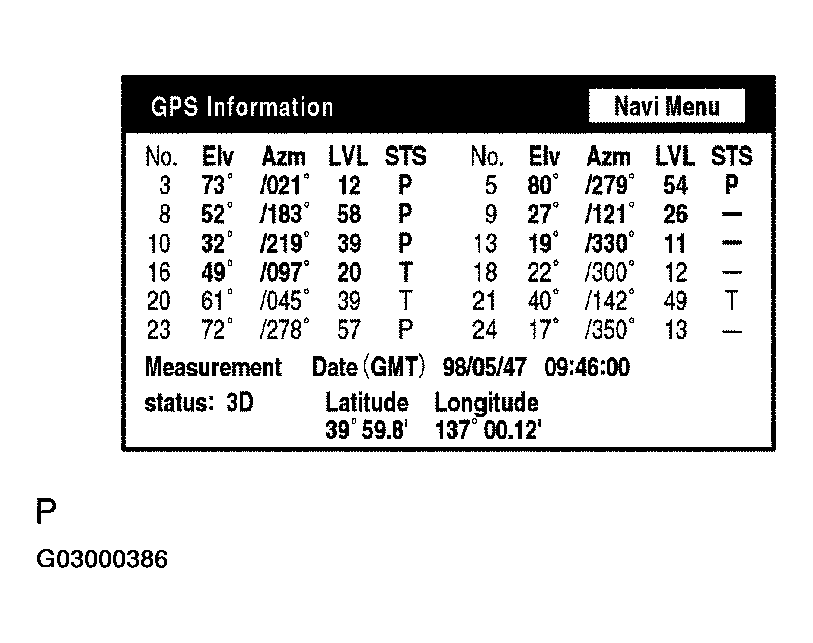

   Fig 3: Identifying GPS Information Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. When GPS information is displayed, check the GPS conditions.

   HINT:

   This screen is updated once per second when input signals to the vehicle are changed.
