LS 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Engine Control Module

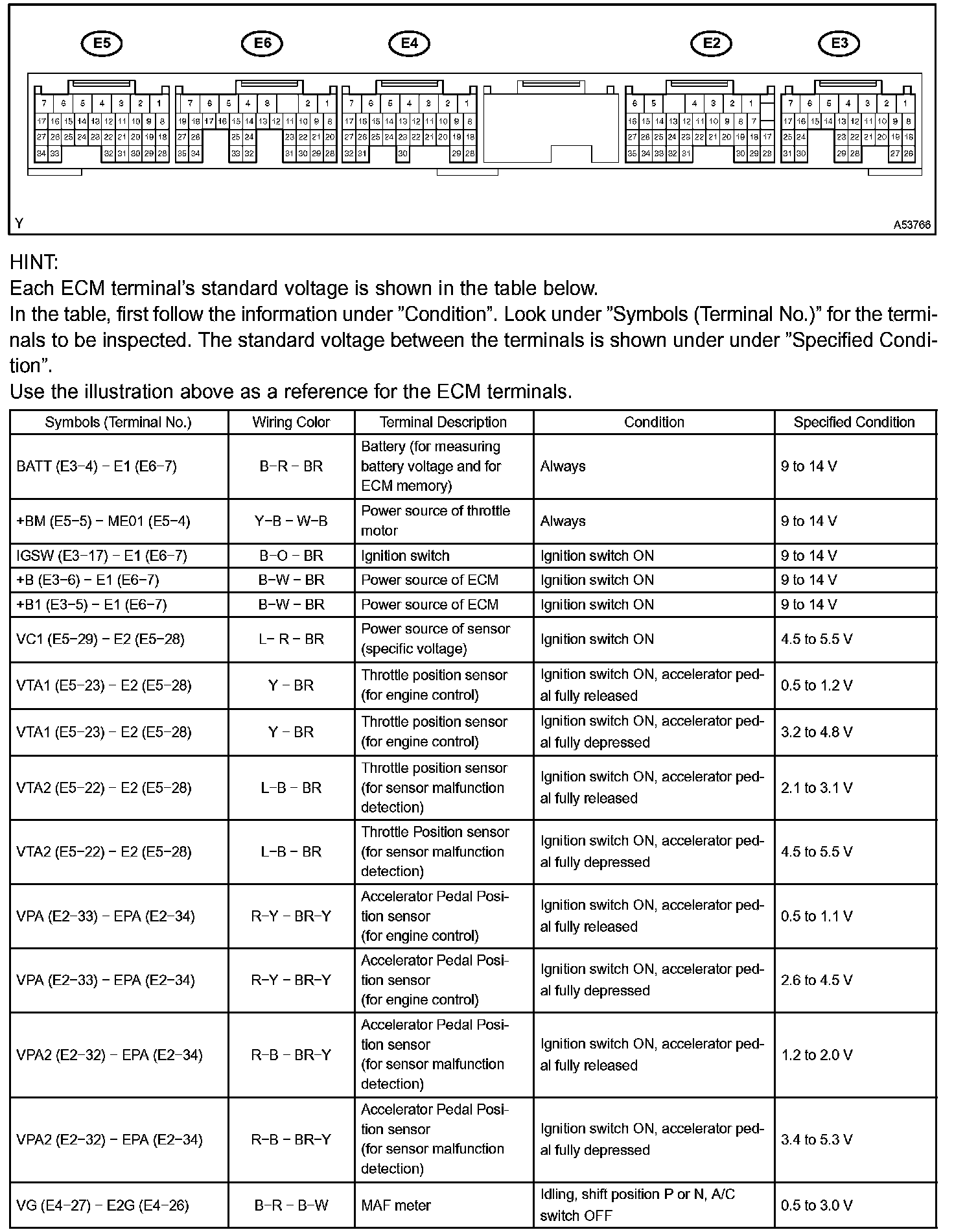

Terminals Of ECM/Pinouts (Part 1):

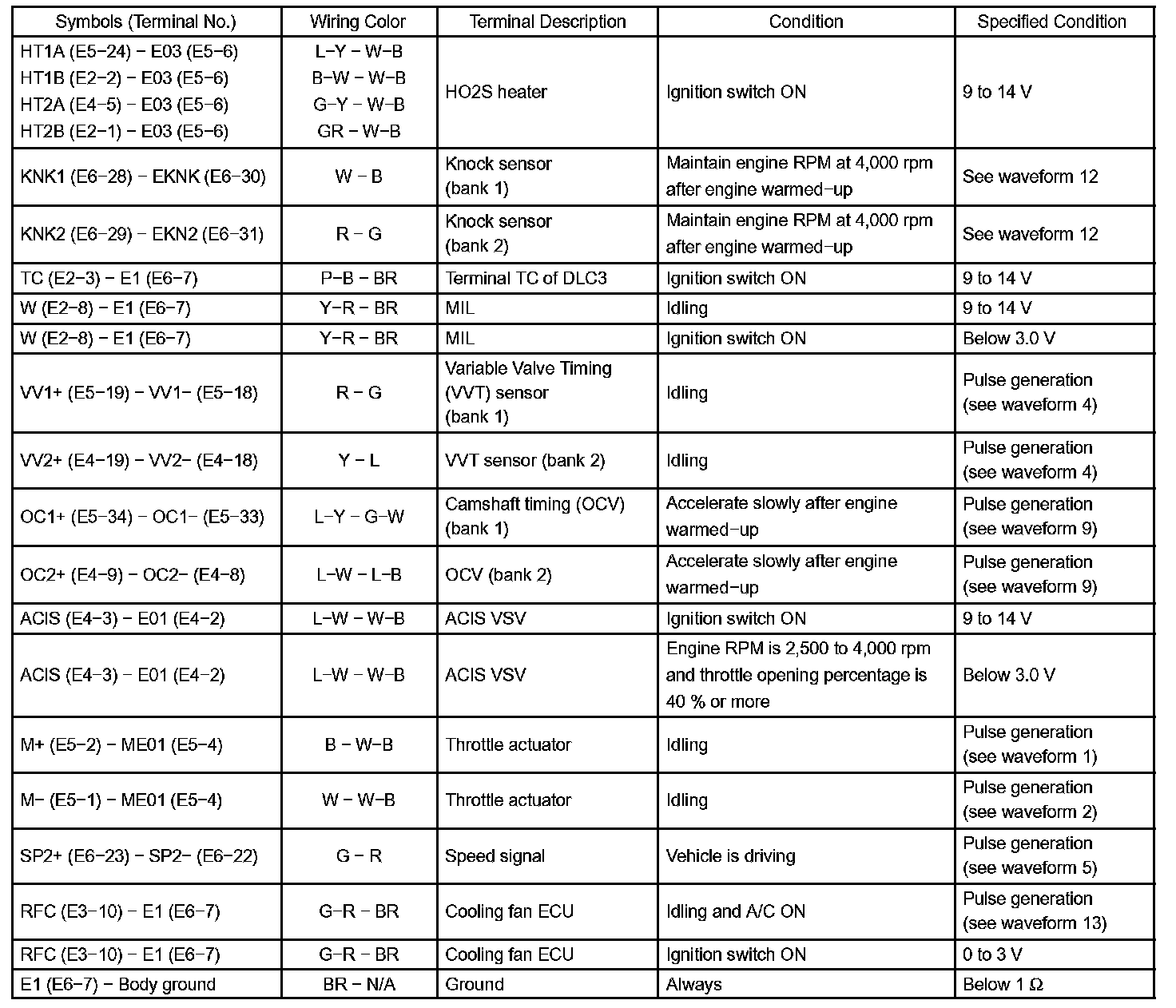

Terminals Of ECM/Pinouts (Part 2):

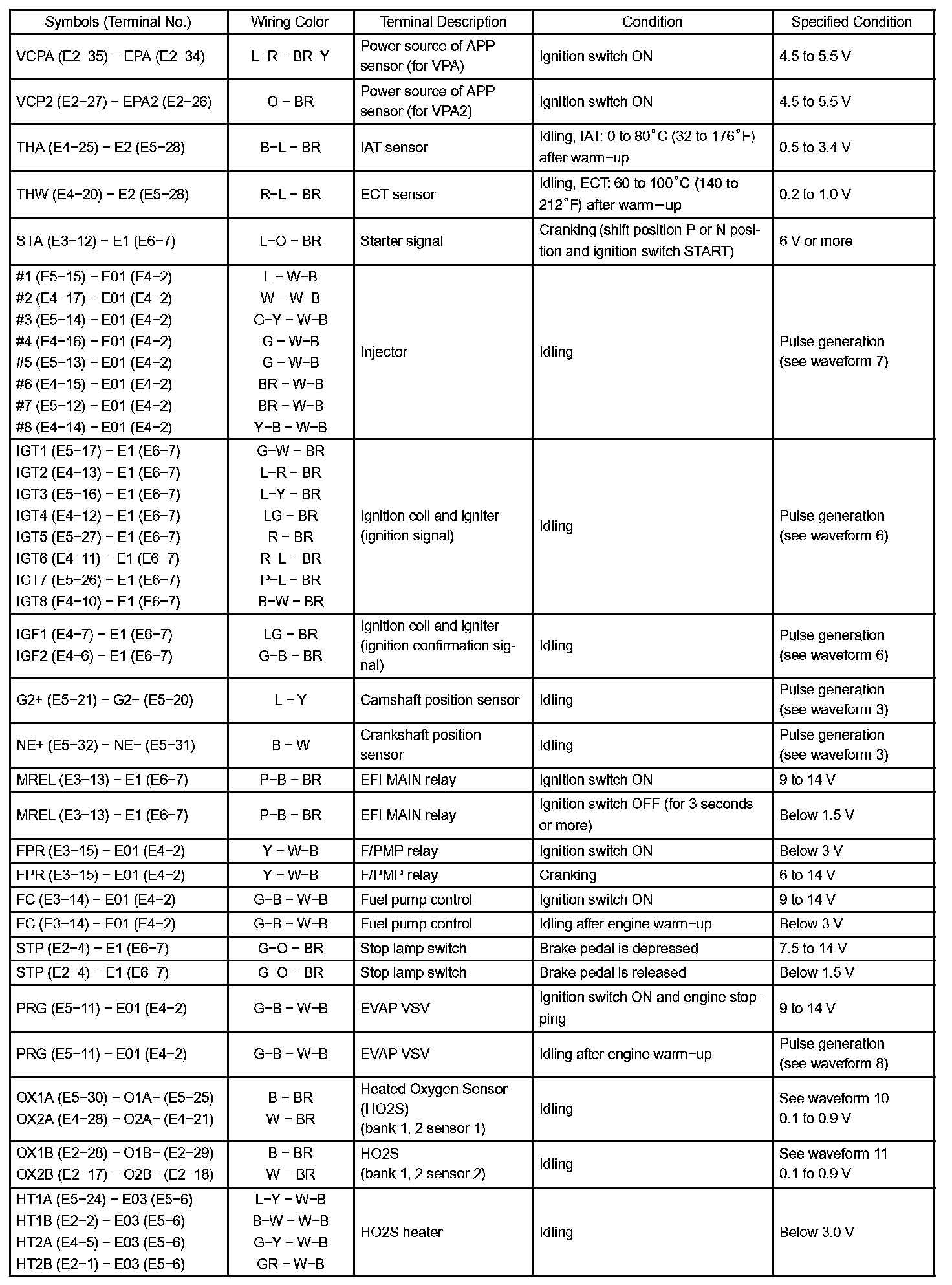

Terminals Of ECM/Pinouts (Part 3):
Oscilloscope Waveform 1:

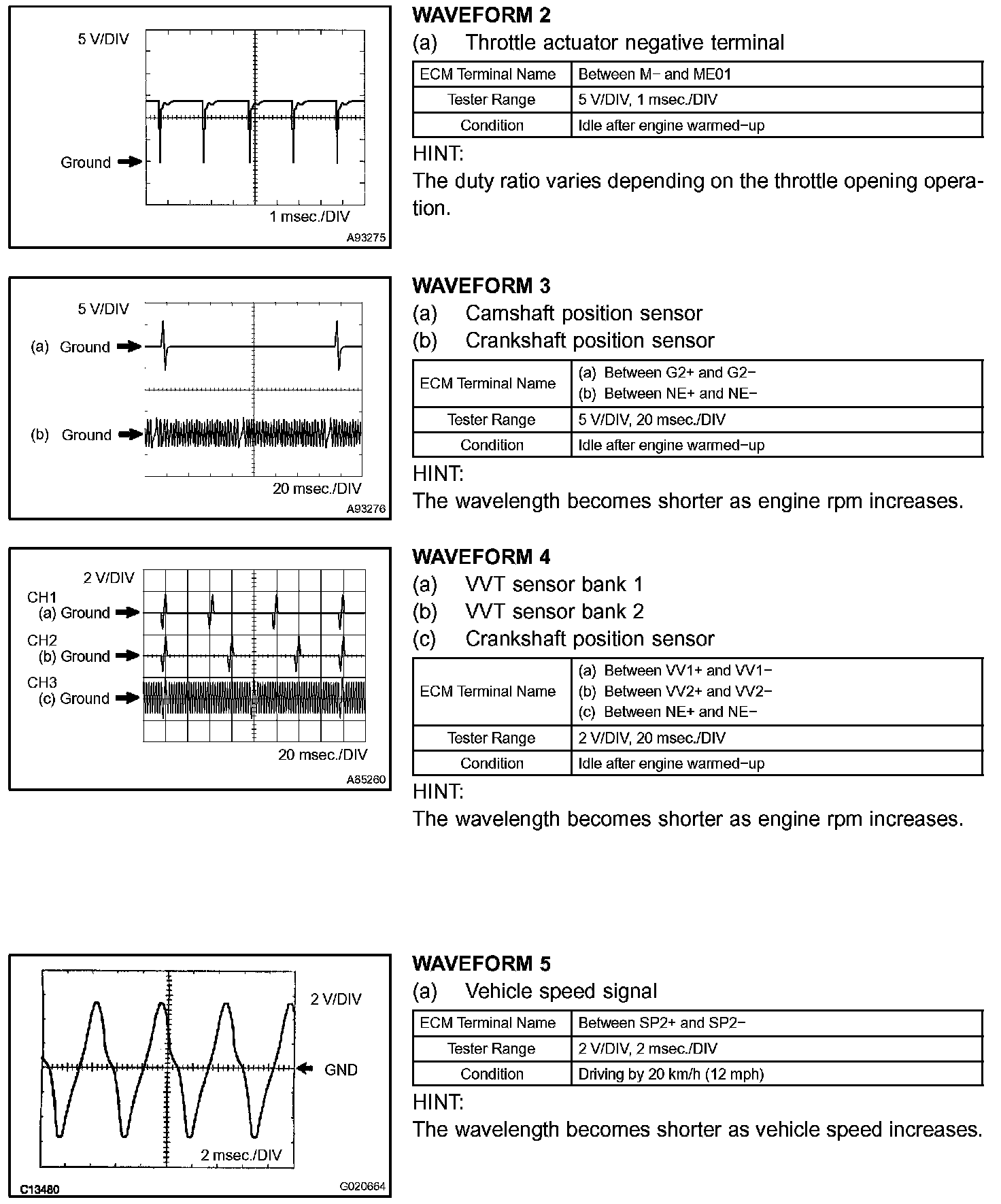

Oscilloscope Waveforms 2 - 5:

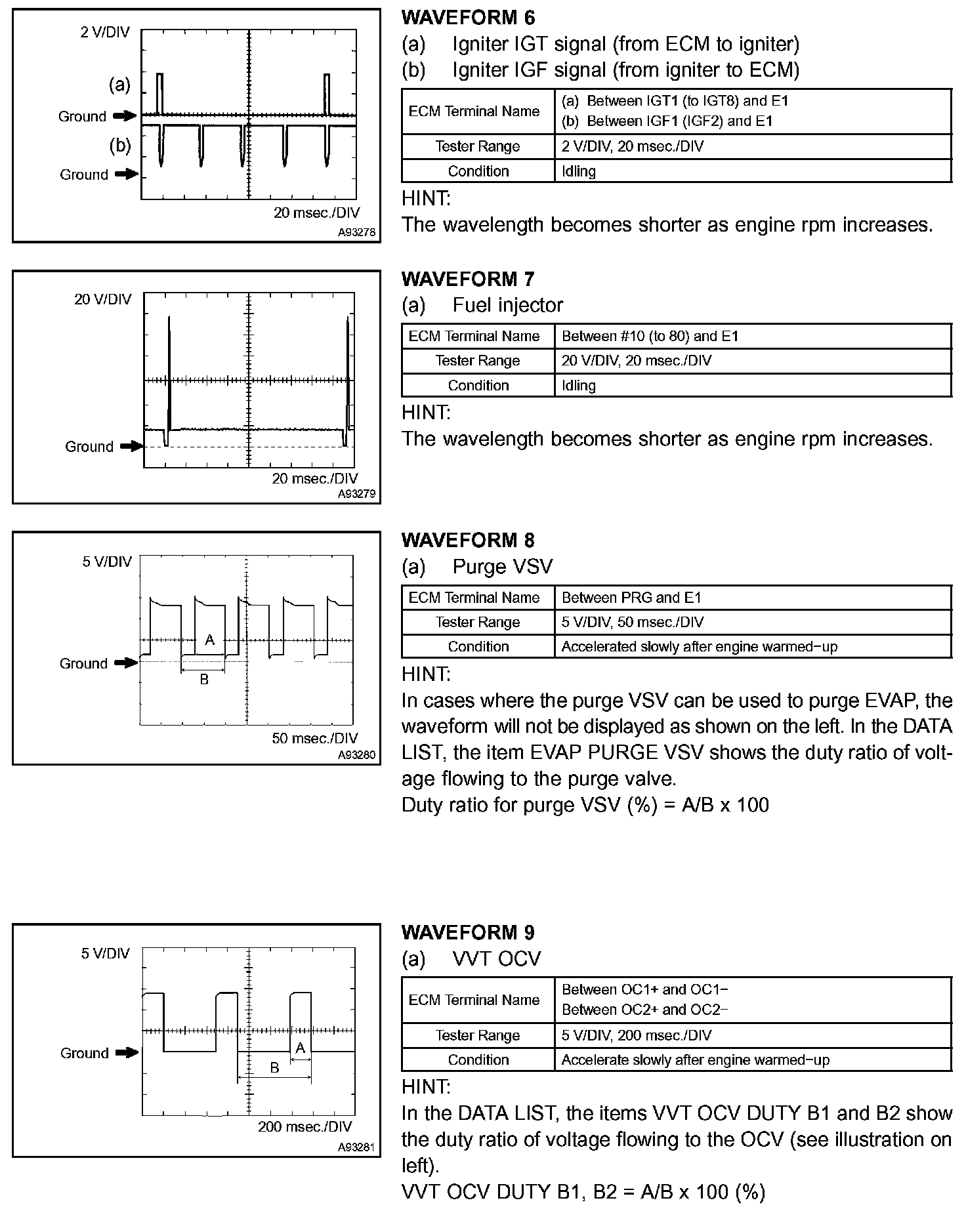

Oscilloscope Waveforms 6 - 9:

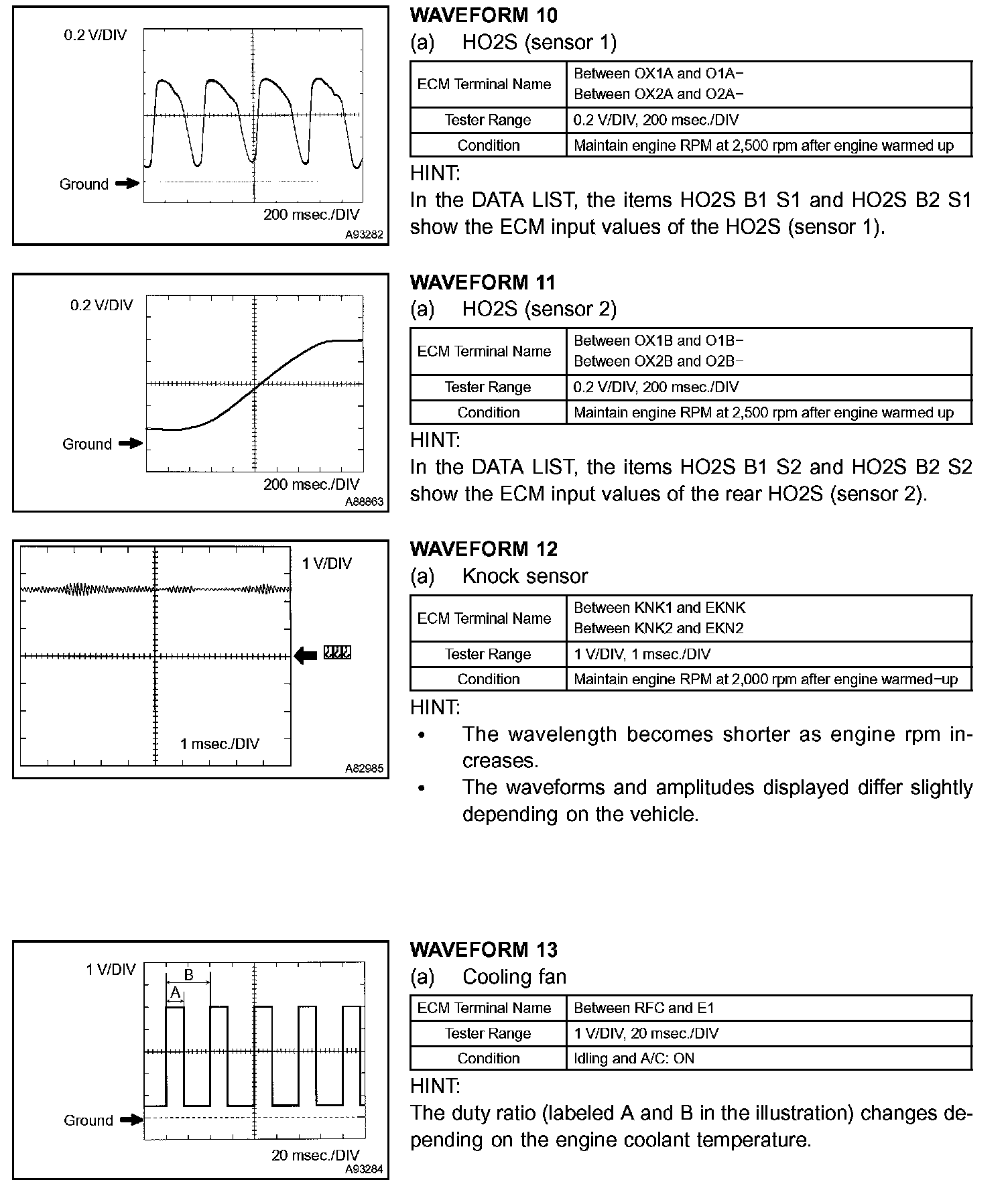

Oscilloscope Waveforms 10 - 13:
