Child Restraint Seat Anchor Bracket: Installation

INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY
1. Install the child restraint seat anchor bracket sub-assembly with the 2 bolts.
Torque: 31 N*m (316 kgf*cm, 23 ft.*lbf)
INSTALL BENCH TYPE REAR SEATBACK ASSEMBLY (See REASSEMBLY )
INSTALL REAR SEAT CENTER HEADREST ASSEMBLY
INSTALL REAR SEAT HEADREST ASSEMBLY
INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY (See REASSEMBLY )

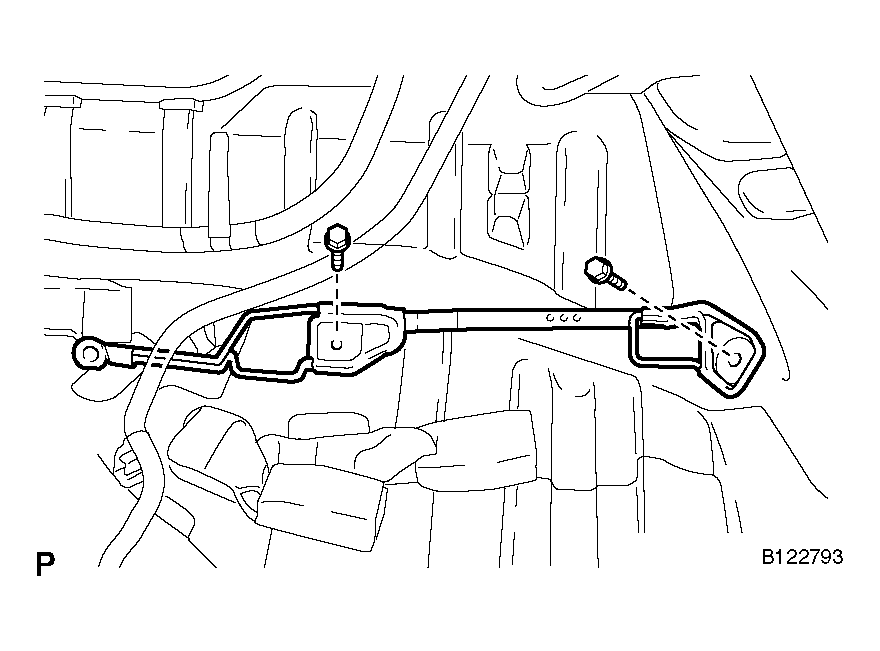

Fig 1: Installing Child Restraint Seat Anchor Bracket Sub-Assembly With Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
