Seat Heater without Climate Control Seat: Notes

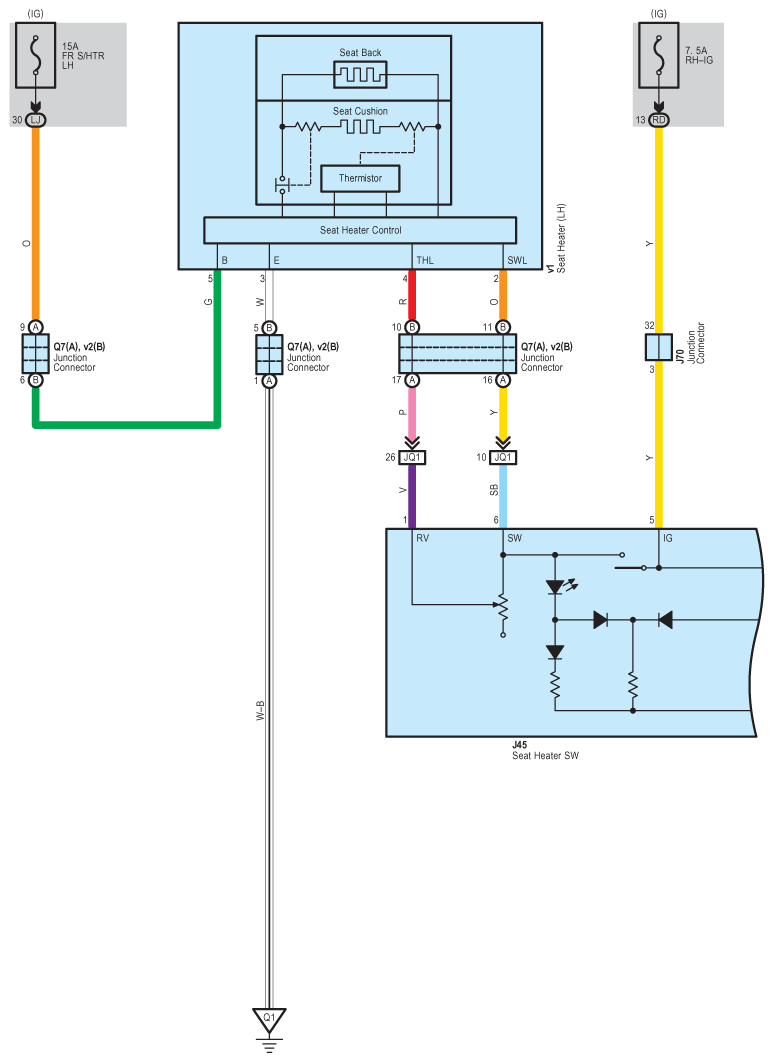

Fig 1: Seat Heater Without Climate Control Seat - Wiring Diagram (1 Of 2)
G08927370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

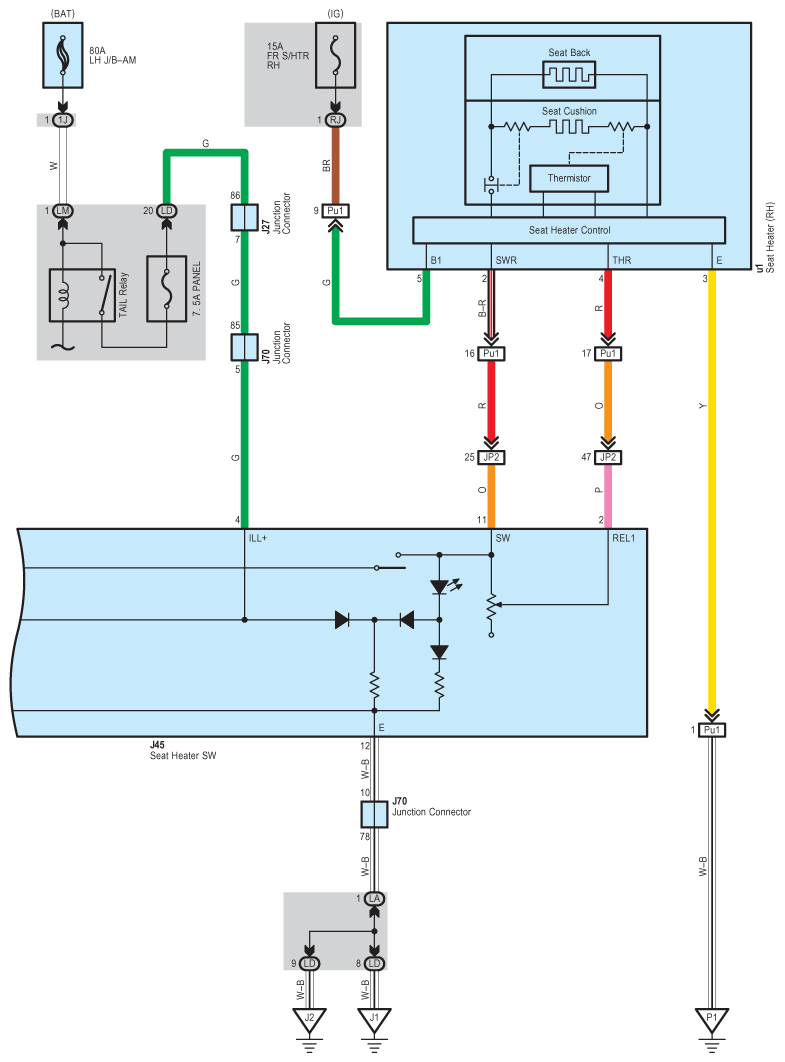

Fig 2: Seat Heater Without Climate Control Seat - Wiring Diagram (2 Of 2)
G08927371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
