Throttle Body: Inspection

  1. INSPECT THROTTLE BODY
    1. Measure the resistance between the terminals.

    Standard resistance

    STANDARD RESISTANCE

    Tester Connection Condition Specified Condition
    1 (M-) - 2 (M+) 20°C (68°F) 0.3 to 100 Ω
    3 (E2) - 5 (VC) 20°C (68°F) 1.2 to 3.2 Ω

    If the result is not as specified, replace the throttle body.

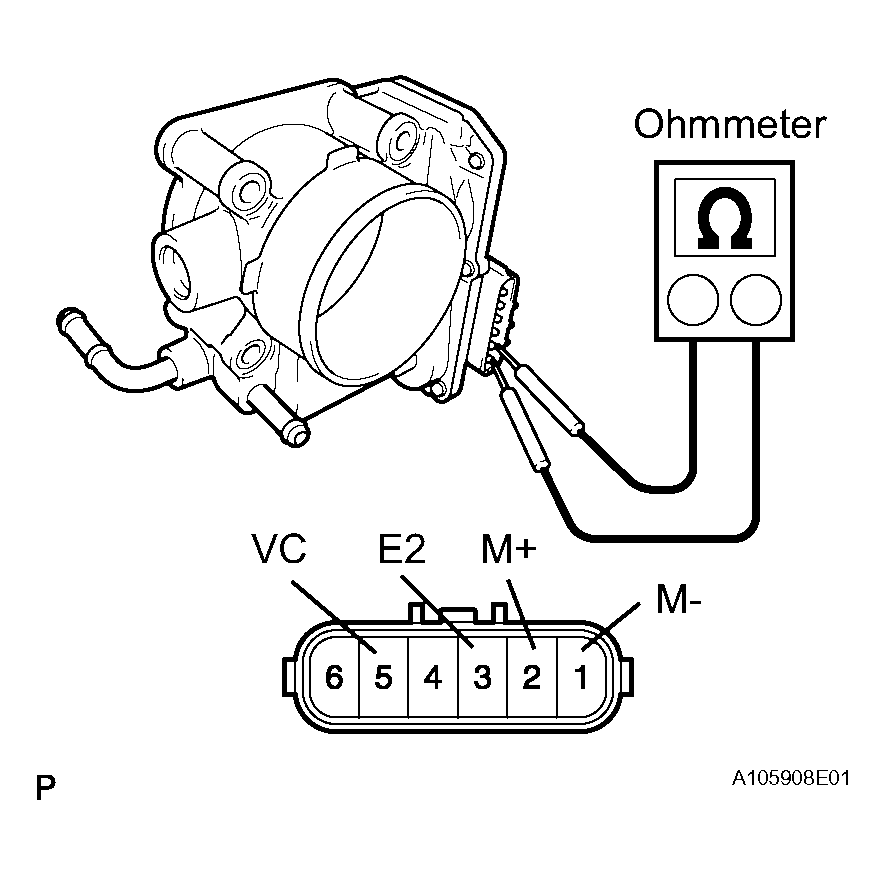

    Fig 1: Measuring Resistance Between Throttle Body Terminals
    G04043934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
