Parts Location

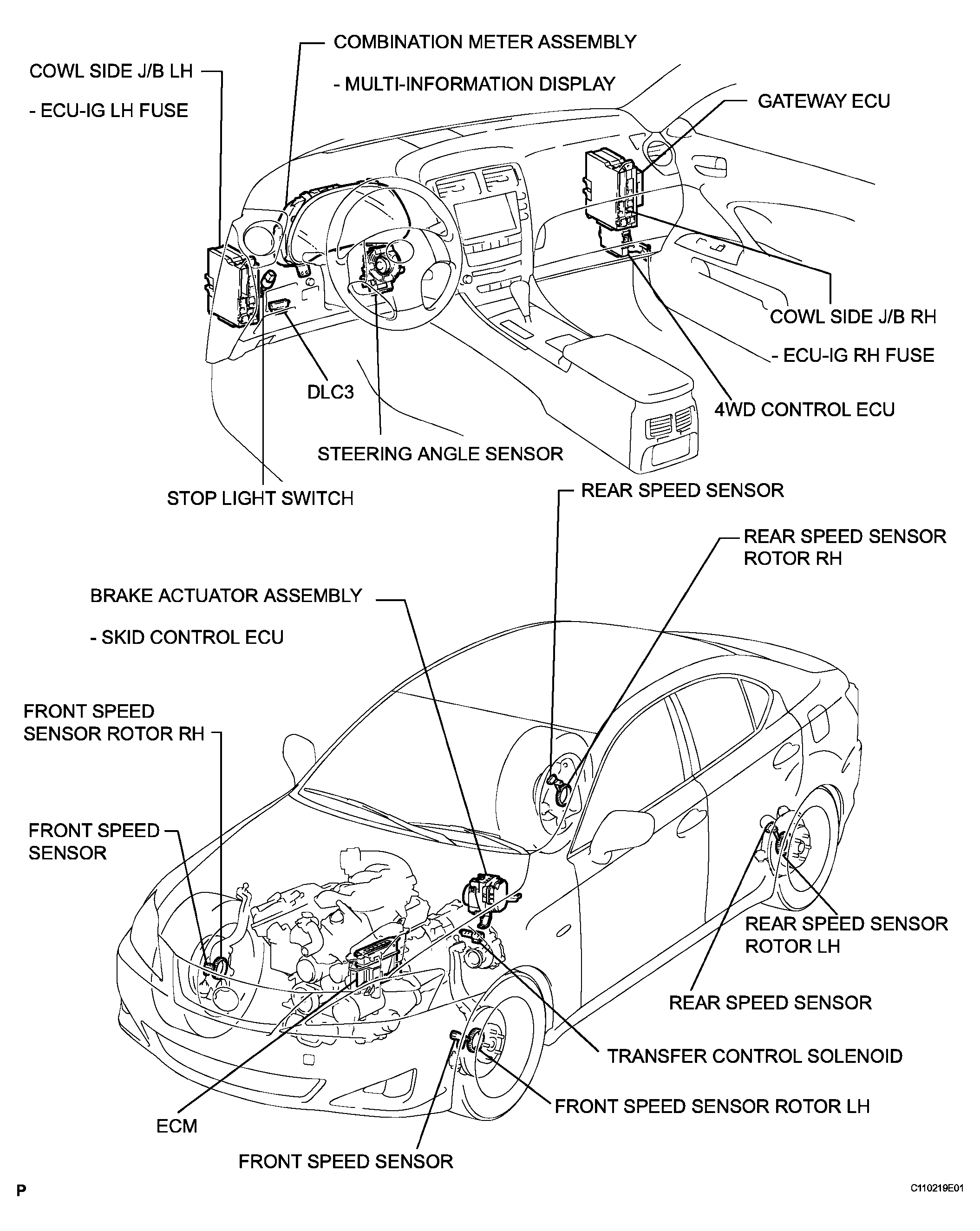

Fig 1: Four Wheel Drive Control System Parts Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
