Valve Body Assembly: Components

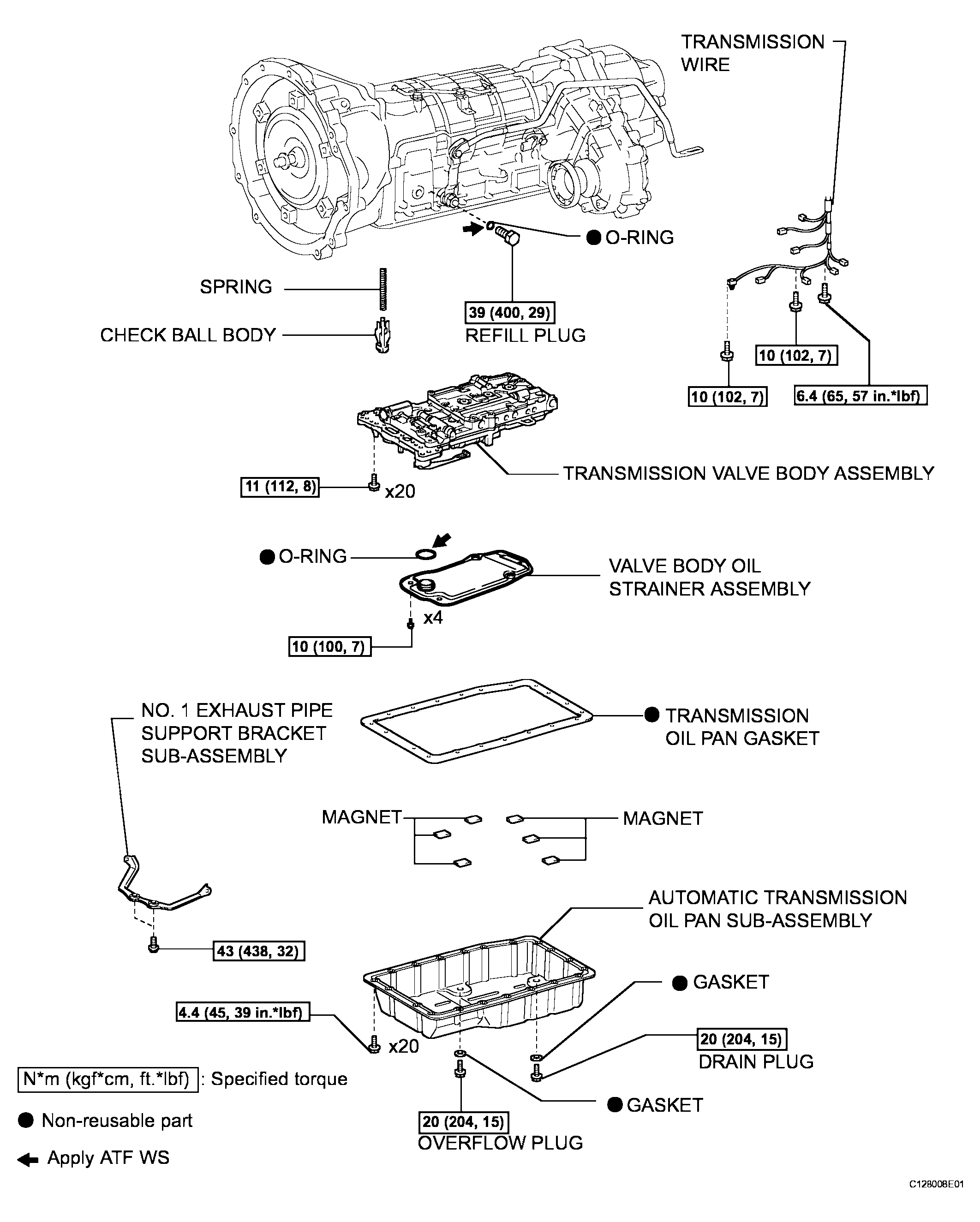

Fig 1: Valve Body Assembly Replacement Components With Torque Specifications (1 Of 2)
G04045270Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

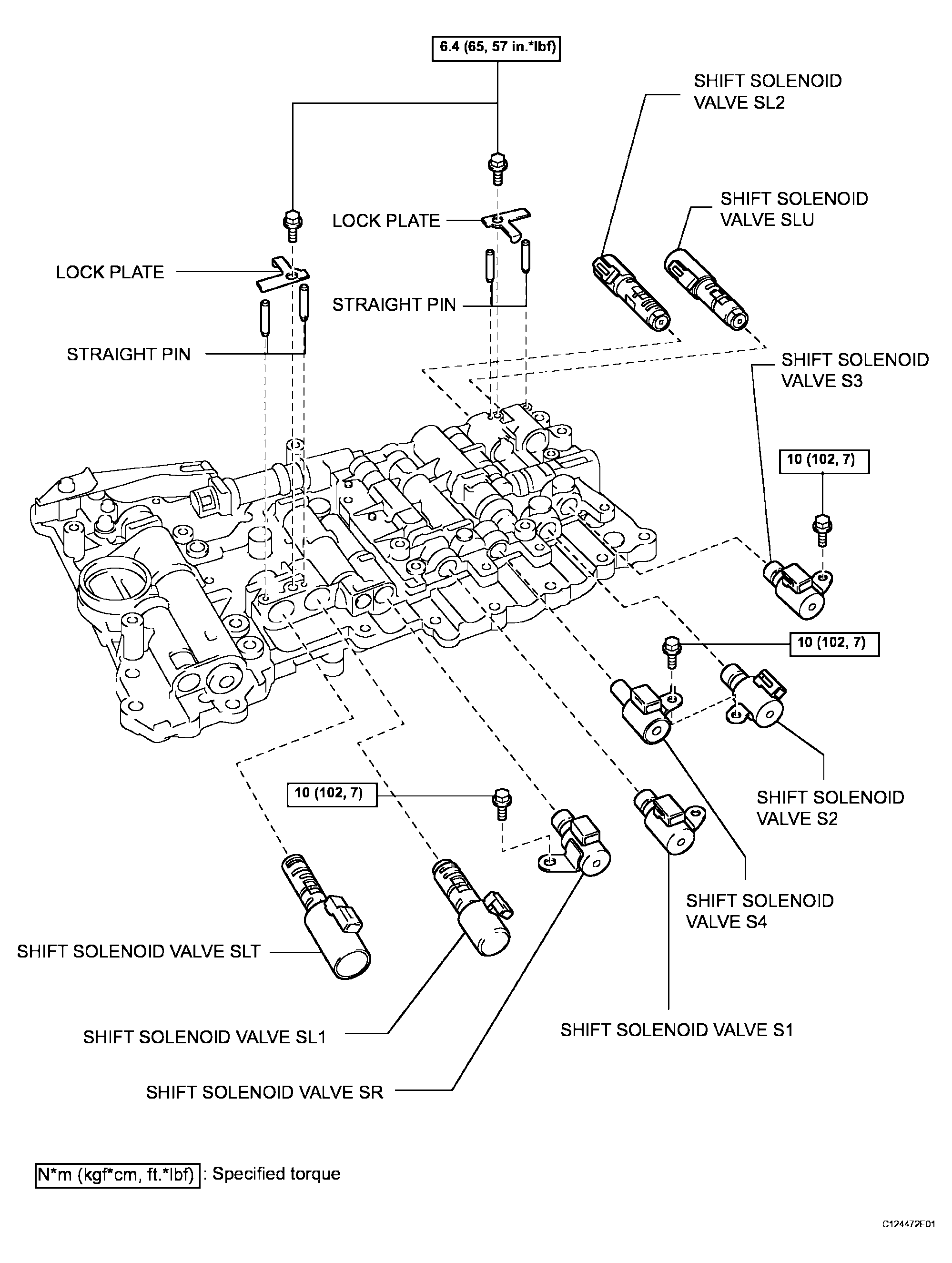

Fig 2: Valve Body Assembly Replacement Components With Torque Specifications (2 Of 2)
G04045271Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
