Pattern Select Switch: Removal

  1. REMOVE FRONT DOOR SCUFF PLATE LH (See step 50 in  REMOVAL  )
  2. REMOVE FRONT DOOR OPENING TRIM COVER LH (See step 27 in  REMOVAL  )
  3. REMOVE SIDE INSTRUMENT PANEL LH (See step 28 in  REMOVAL  )
  4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (See step 30 in  REMOVAL  )
  5. REMOVE SWITCH BASE
    1. Disengage the 4 claws, and remove the switch base from the lower instrument panel finish panel.

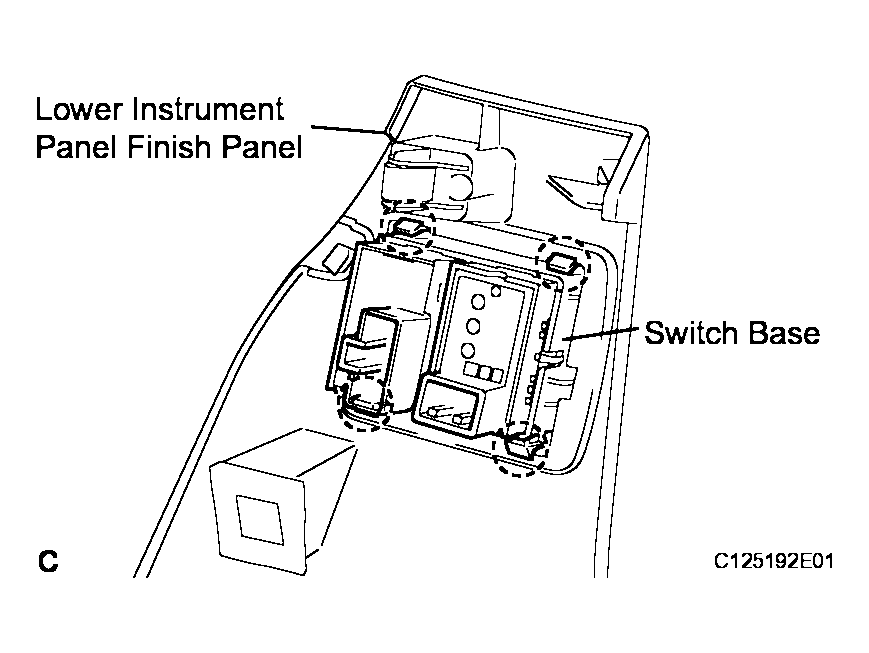

      Fig 1: Removing Switch Base From Lower Instrument Panel Finish Panel
      G04045309Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  6. REMOVE NO. 1 PATTERN SELECT SWITCH ASSEMBLY
    1. Disengage the 2 claws, and remove the pattern select switch from the switch base.
    Fig 2: Removing Claws & Pattern Select Switch From Switch Base
    G04045310Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
