Park/Neutral Position Switch: Components

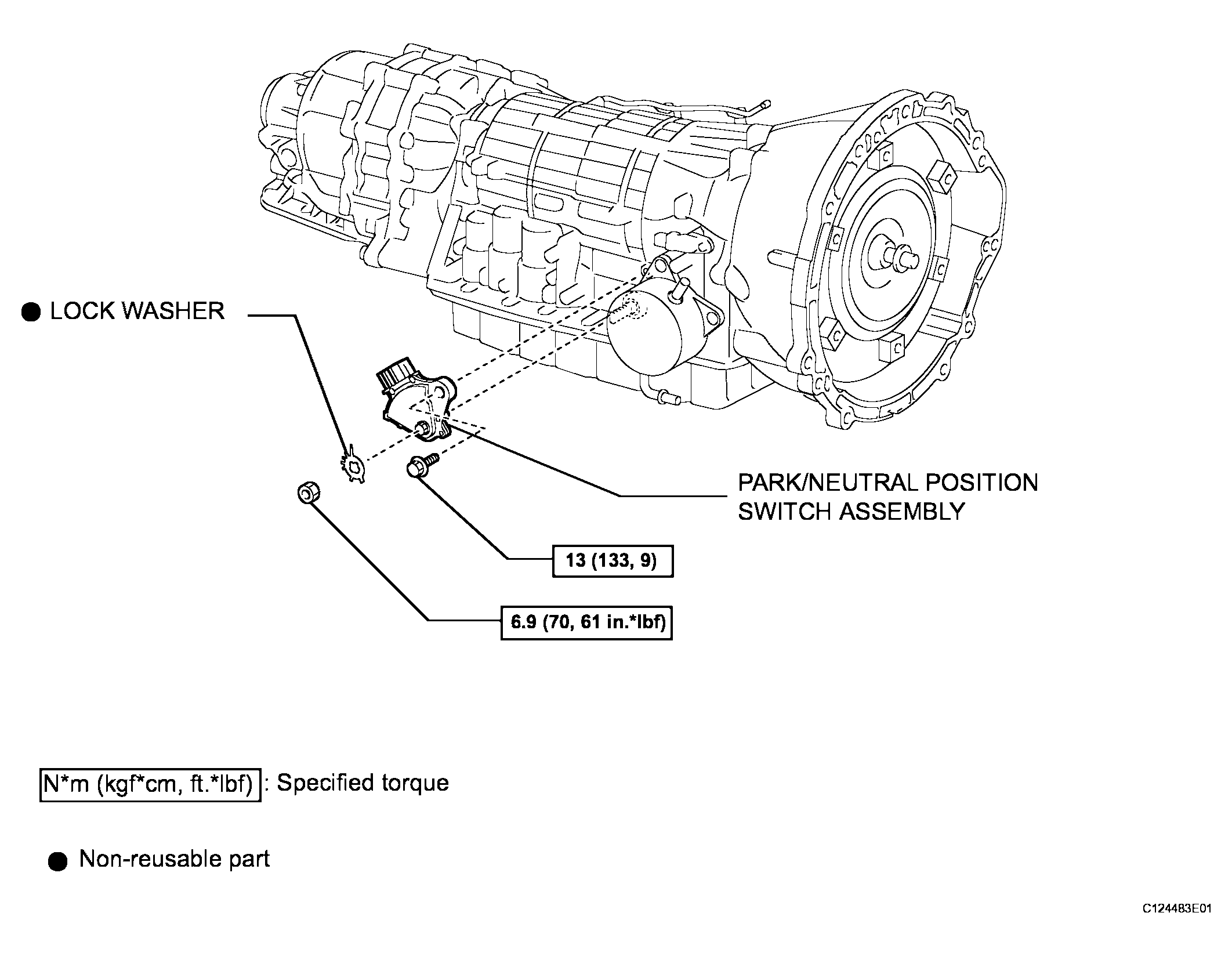

Fig 1: Park/Neutral Position Switch Replacement Components With Torque Specifications
G04045258Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
