Automatic Transmission Unit: Components

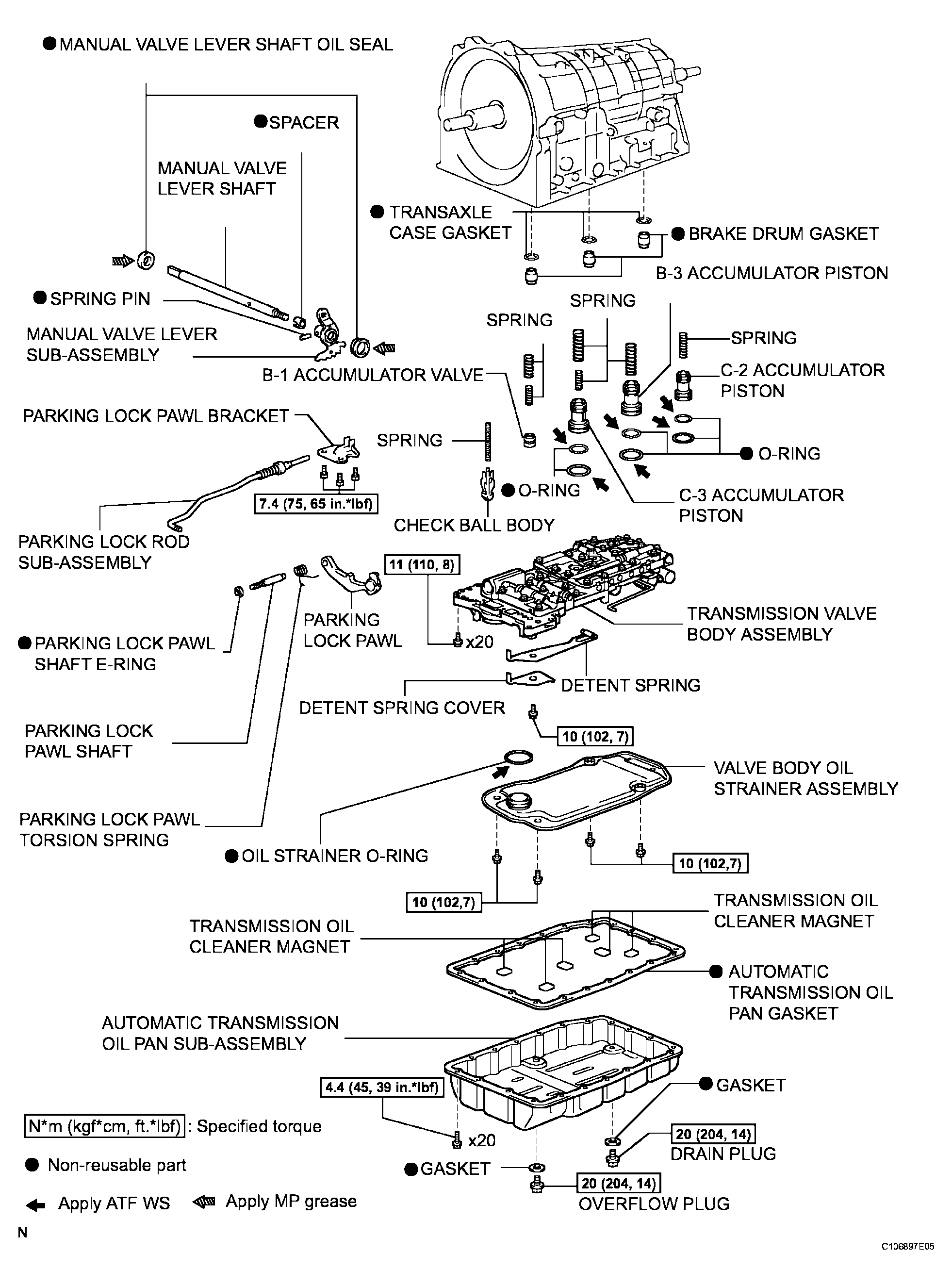

Fig 1: Automatic Transmission Unit Components (1 Of 5) With Torque Specifications

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

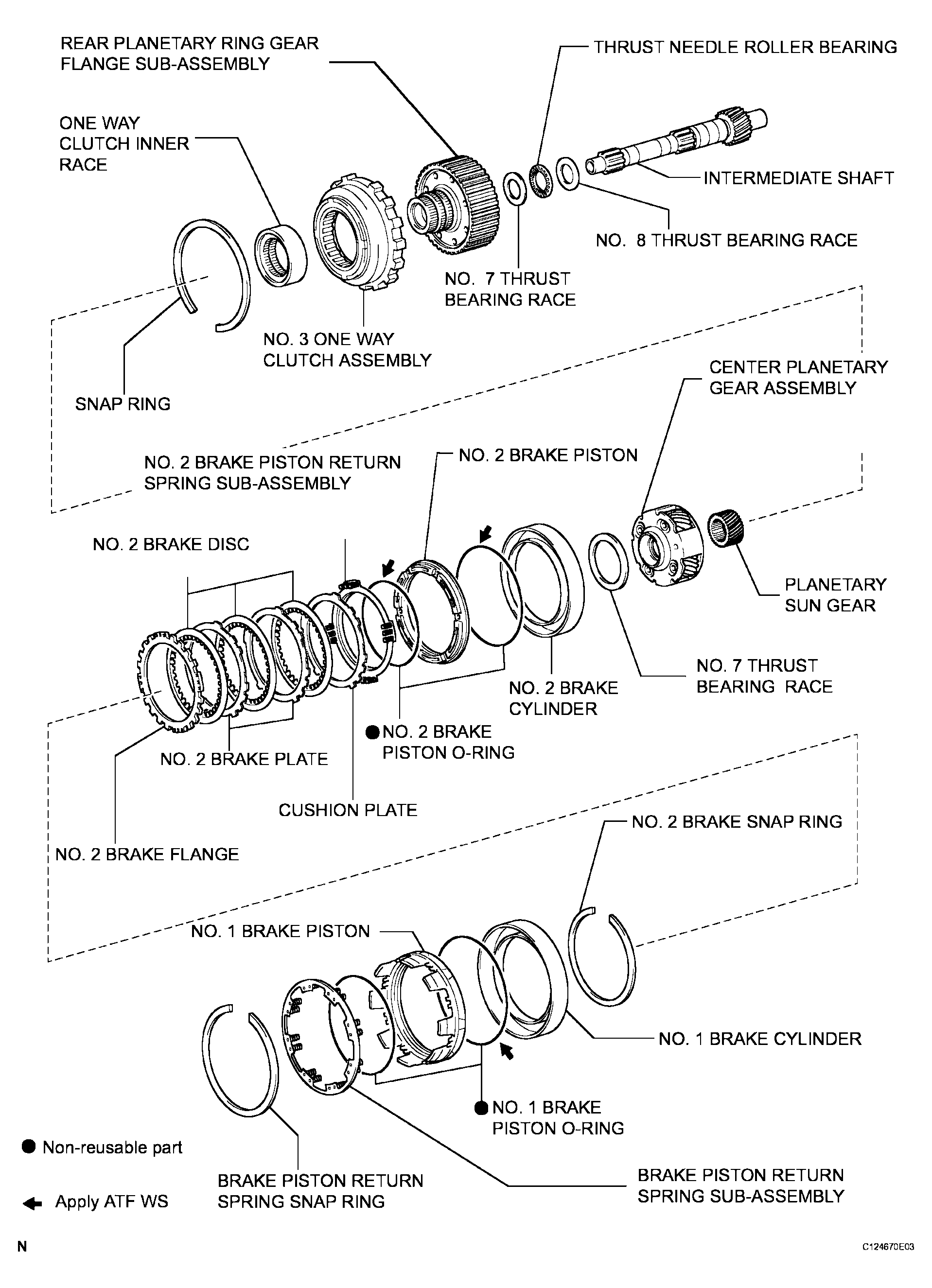

Fig 2: Automatic Transmission Unit Components (2 Of 5) With Torque Specifications

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

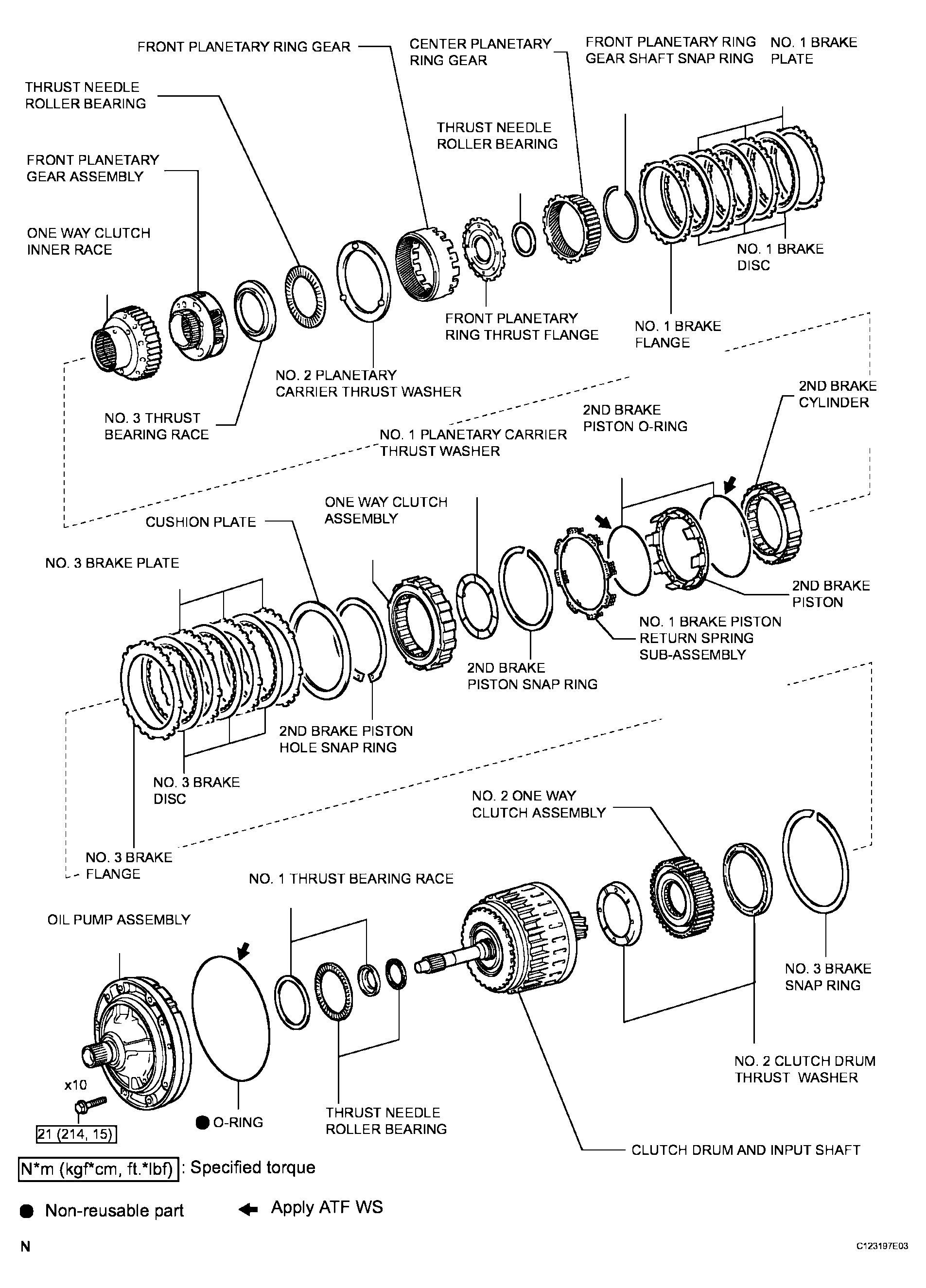

Fig 3: Automatic Transmission Unit Components (3 Of 5) With Torque Specifications

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

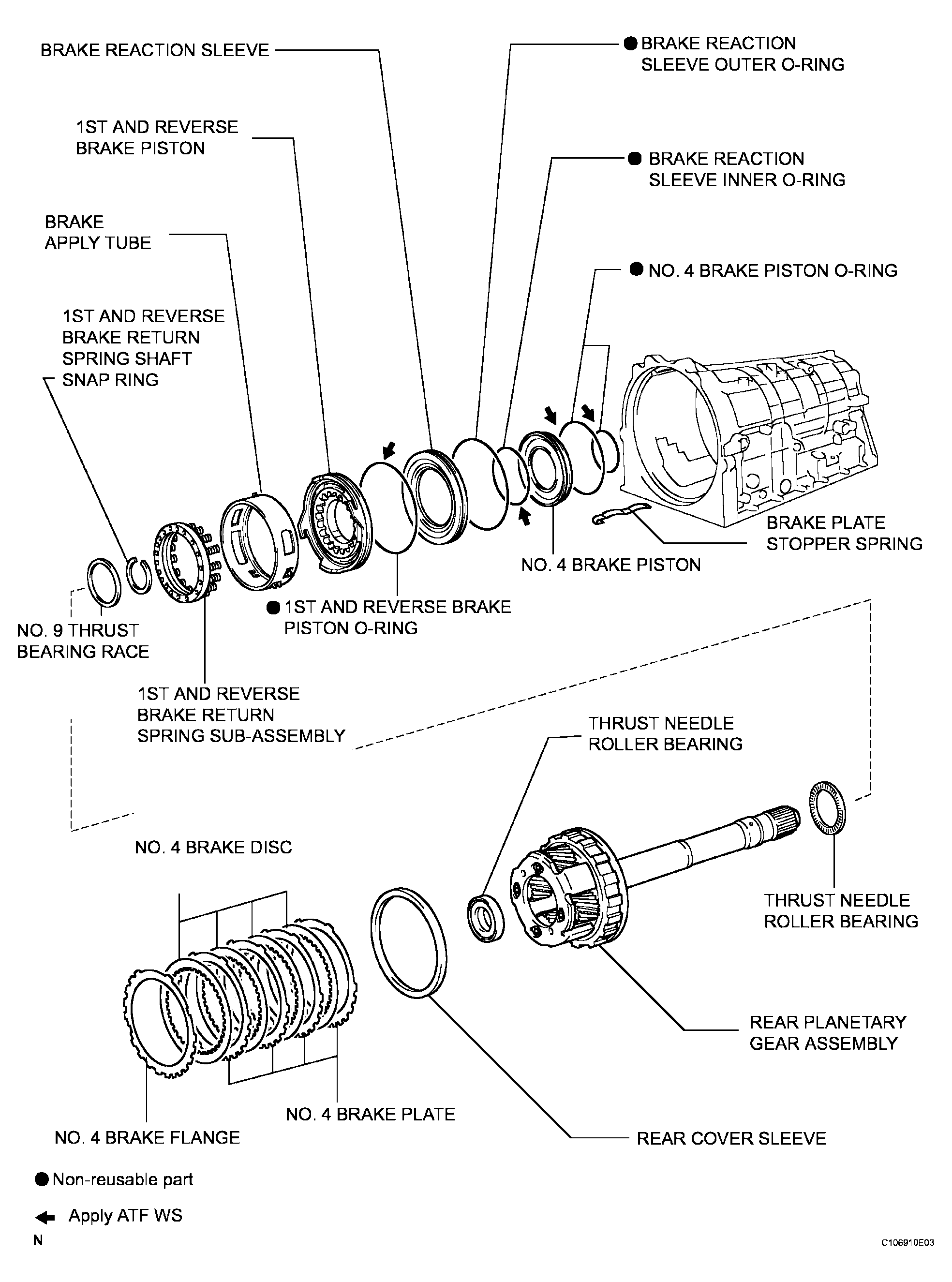

Fig 4: Identifying Automatic Transmission Unit Components (4 Of 5)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

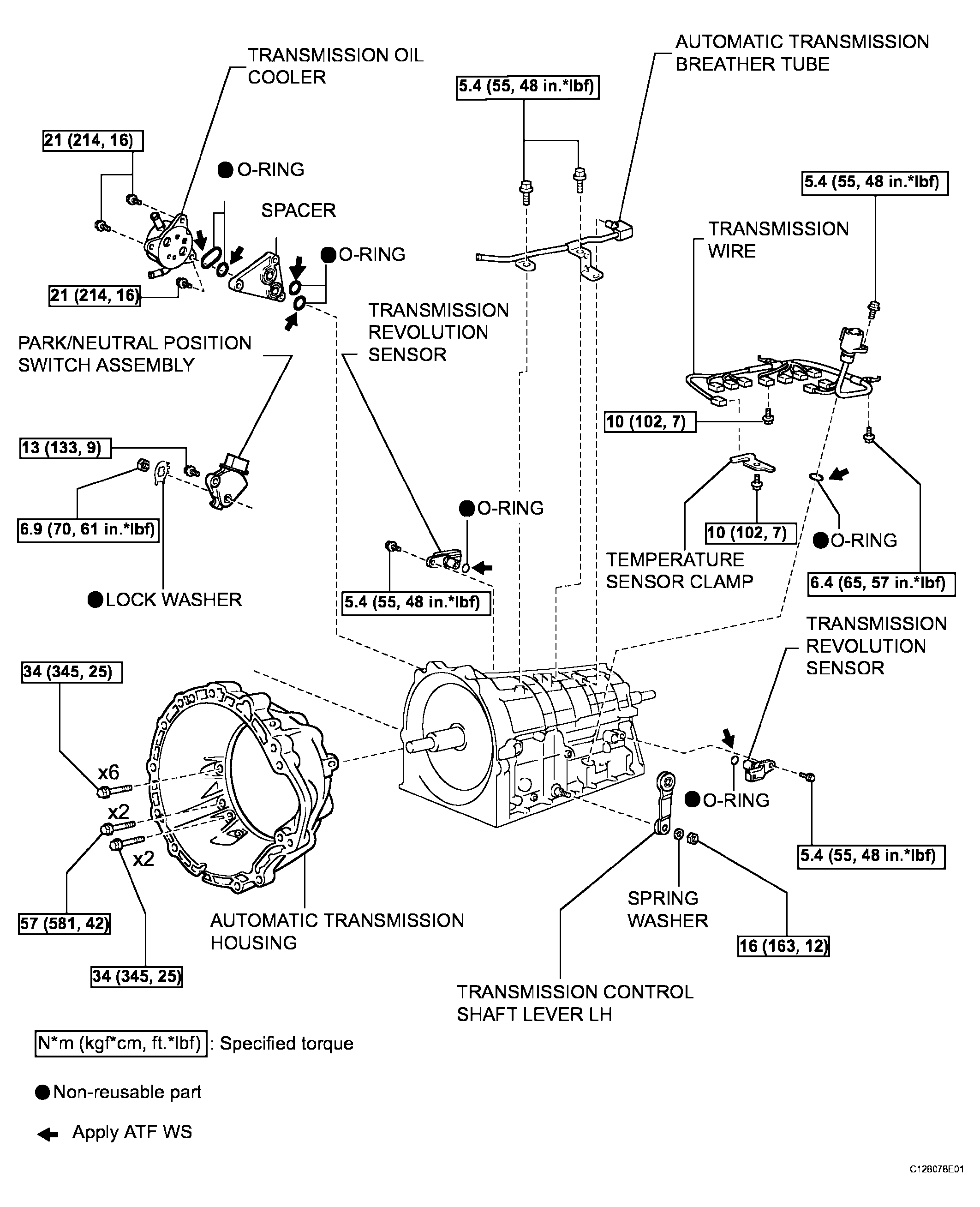

Fig 5: Identifying Automatic Transmission Unit Components (5 Of 5)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
