Room Temperature Sensor: Components

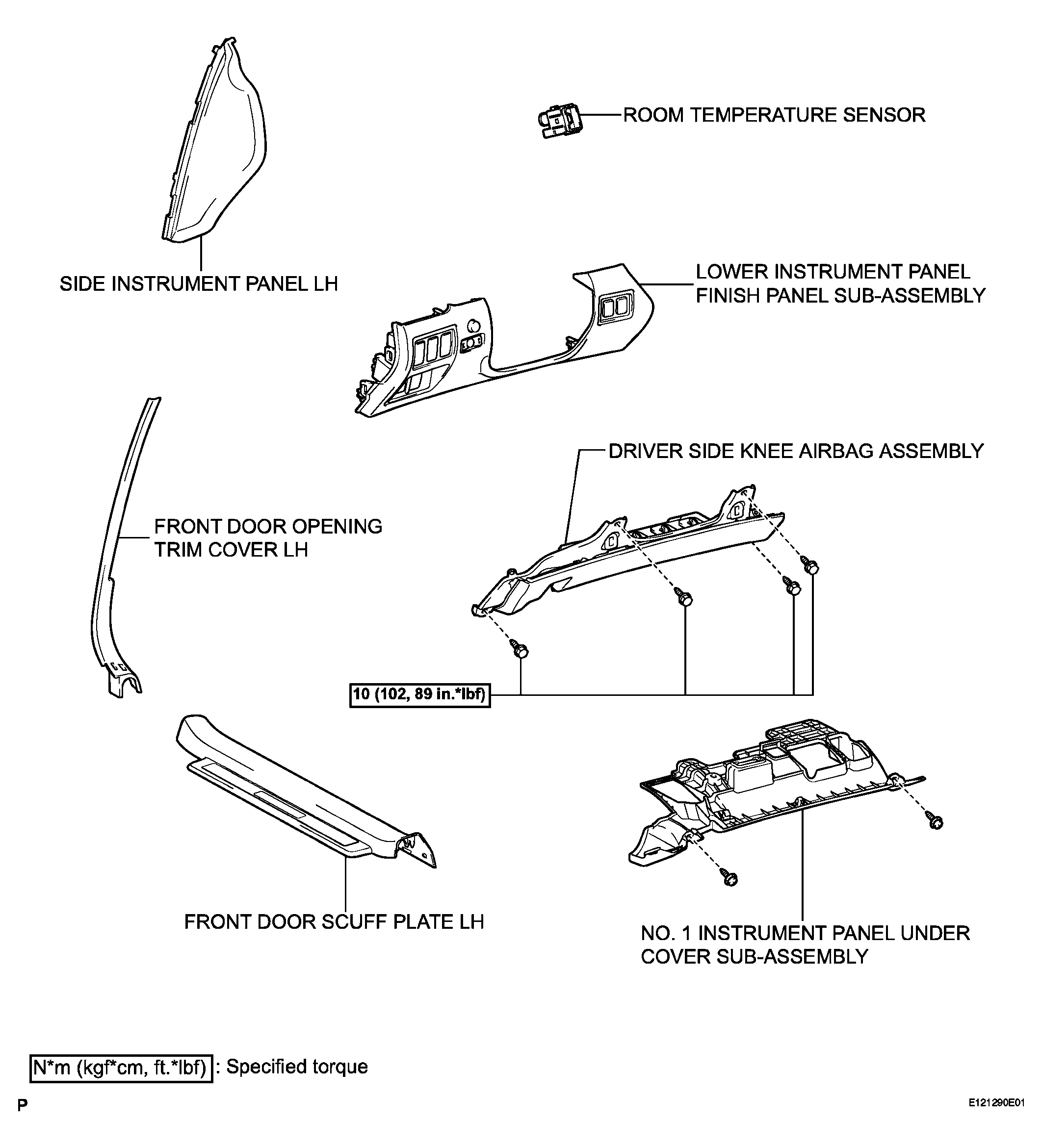

Fig 1: Room Temperature Sensor Replacement Components With Torque Specifications
G04048509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
