FRONT SPEED SENSOR (for 2WD): Components

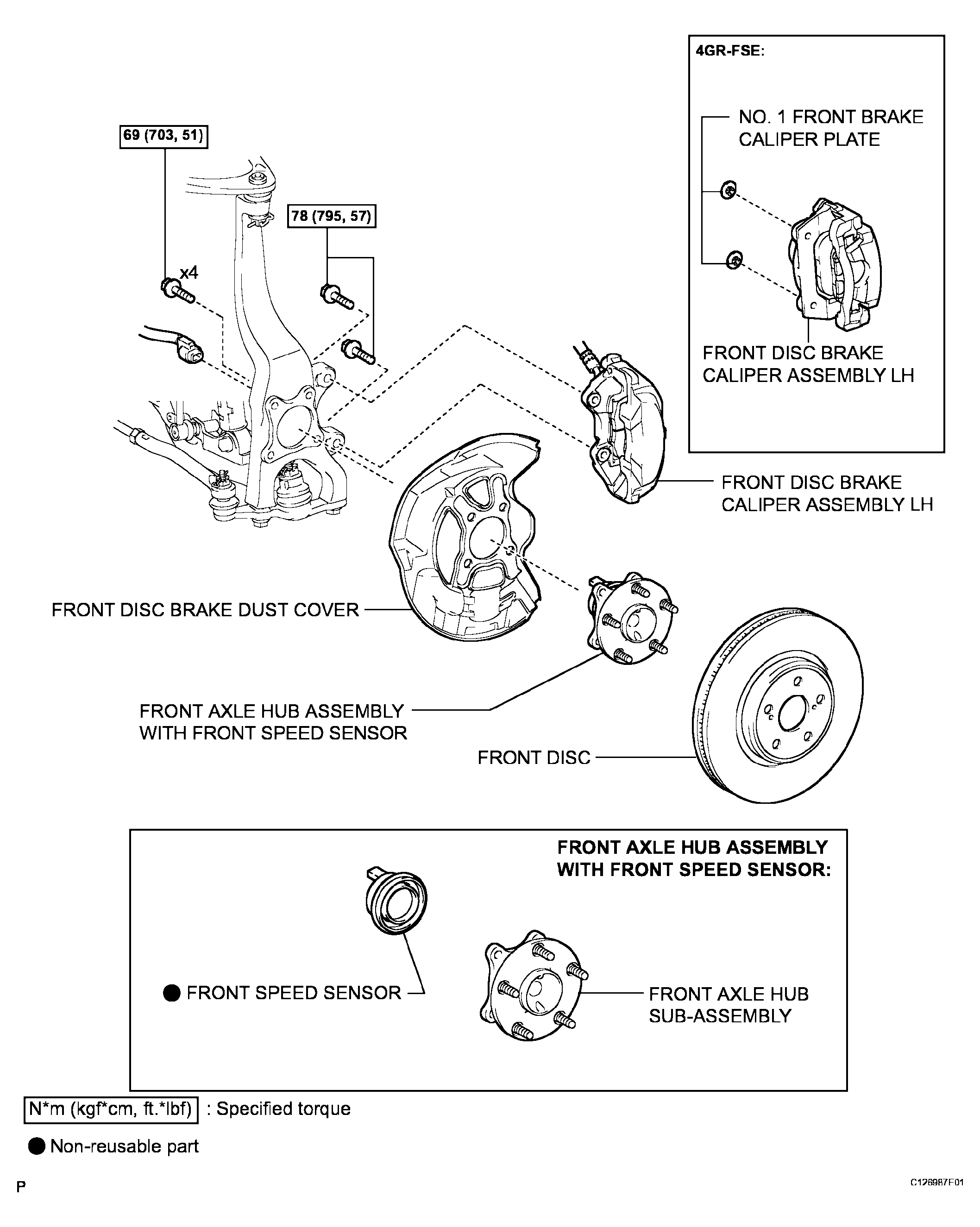

Fig 1: Replacement Components Front Speed Sensor - 2WD With Torque Specifications
G04047700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
