Fuel Pressure Sensor: Locations

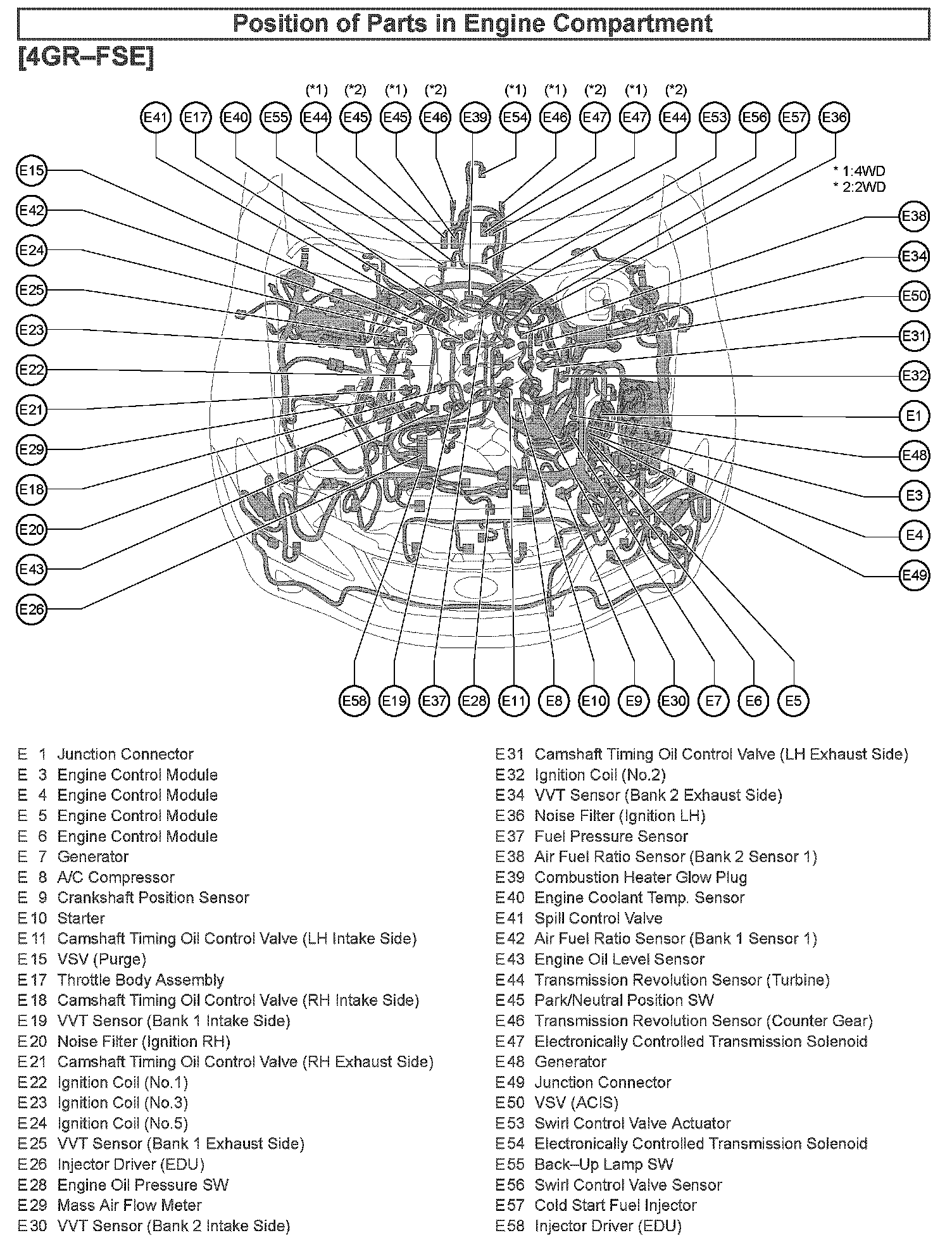

A/C-VVT:

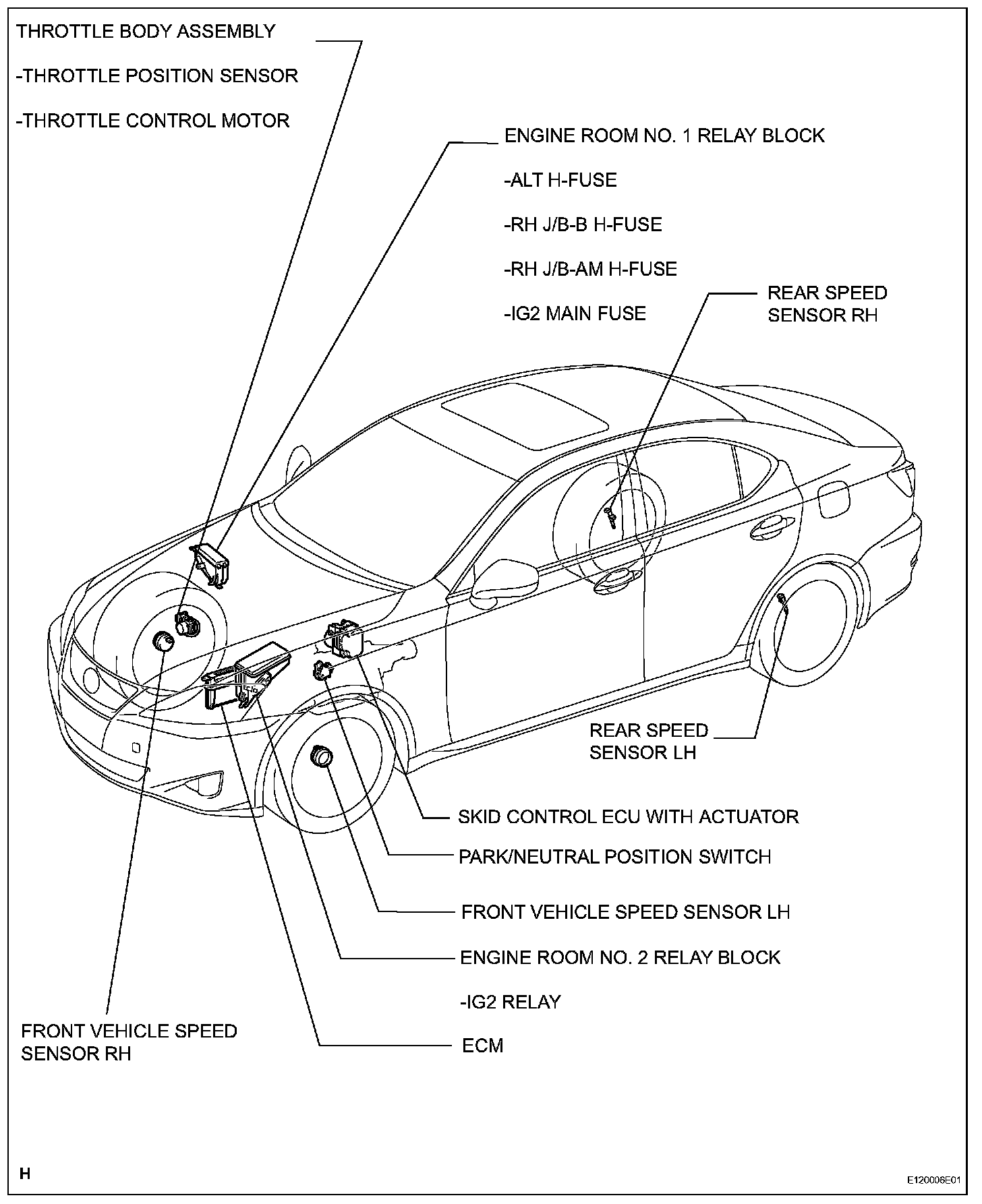

Cruise Control System:

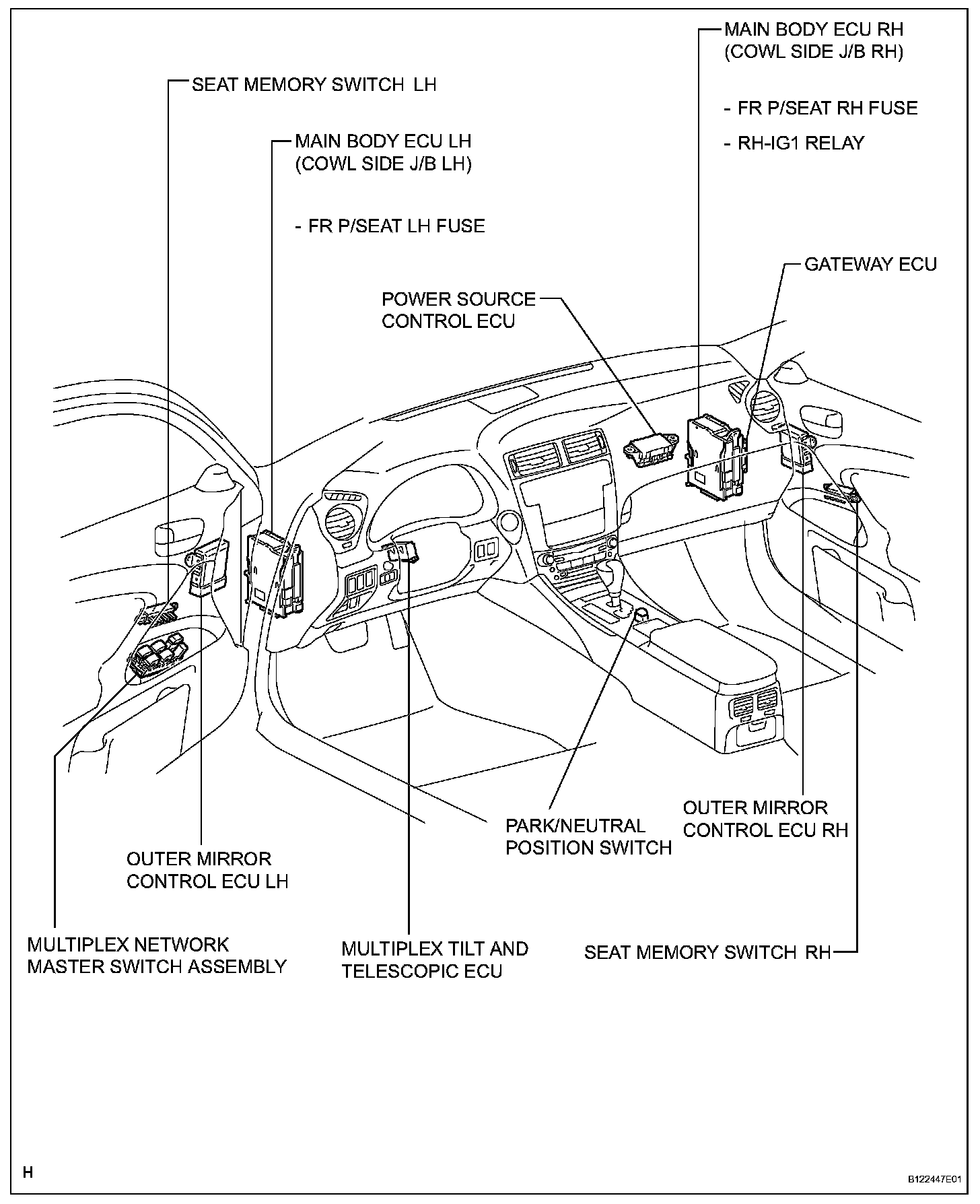

Front Power Seat Control System(w/ Seat Position Memory System):

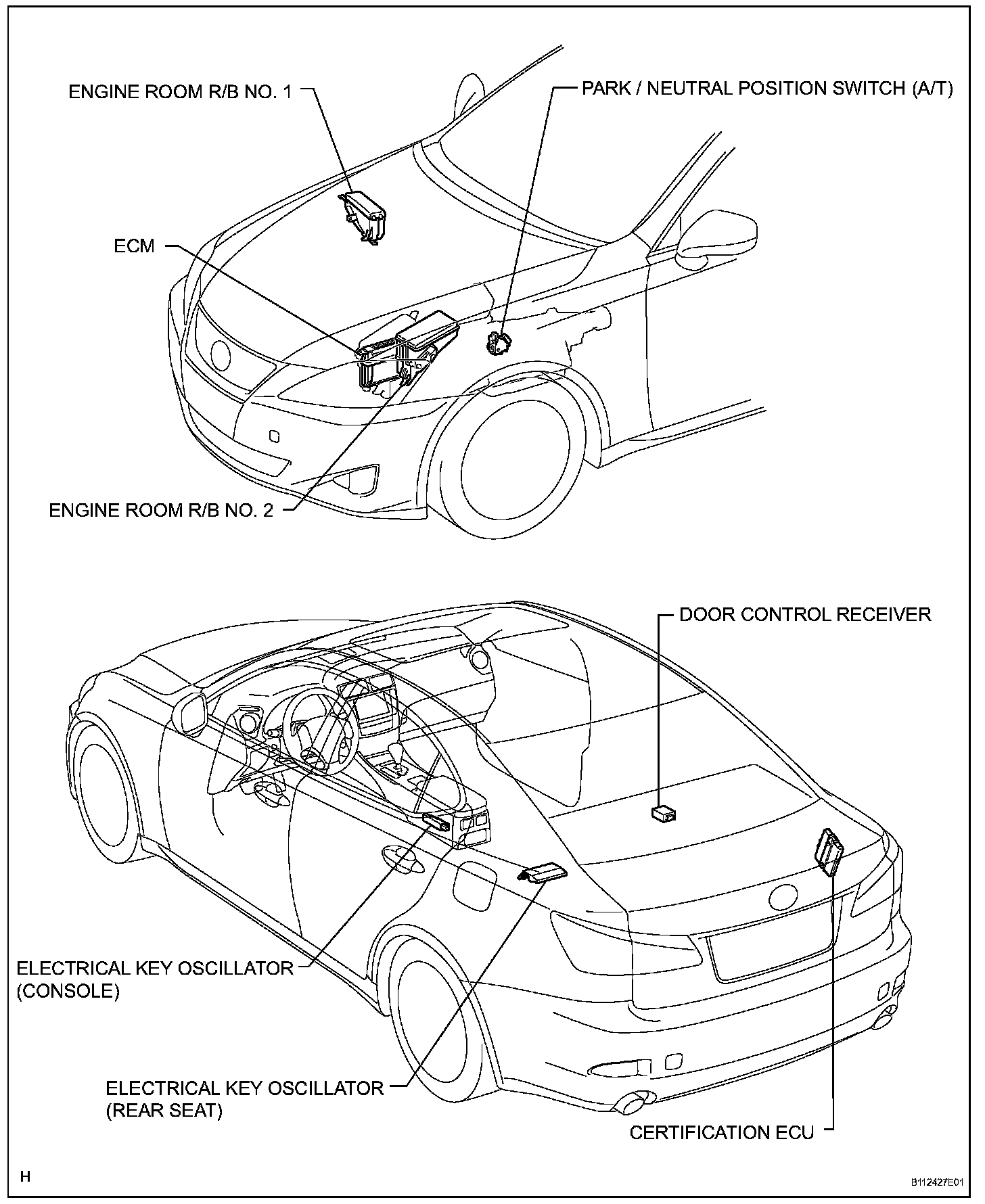

Smart Access System With Push-Button Start:
