Seat Temperature Element

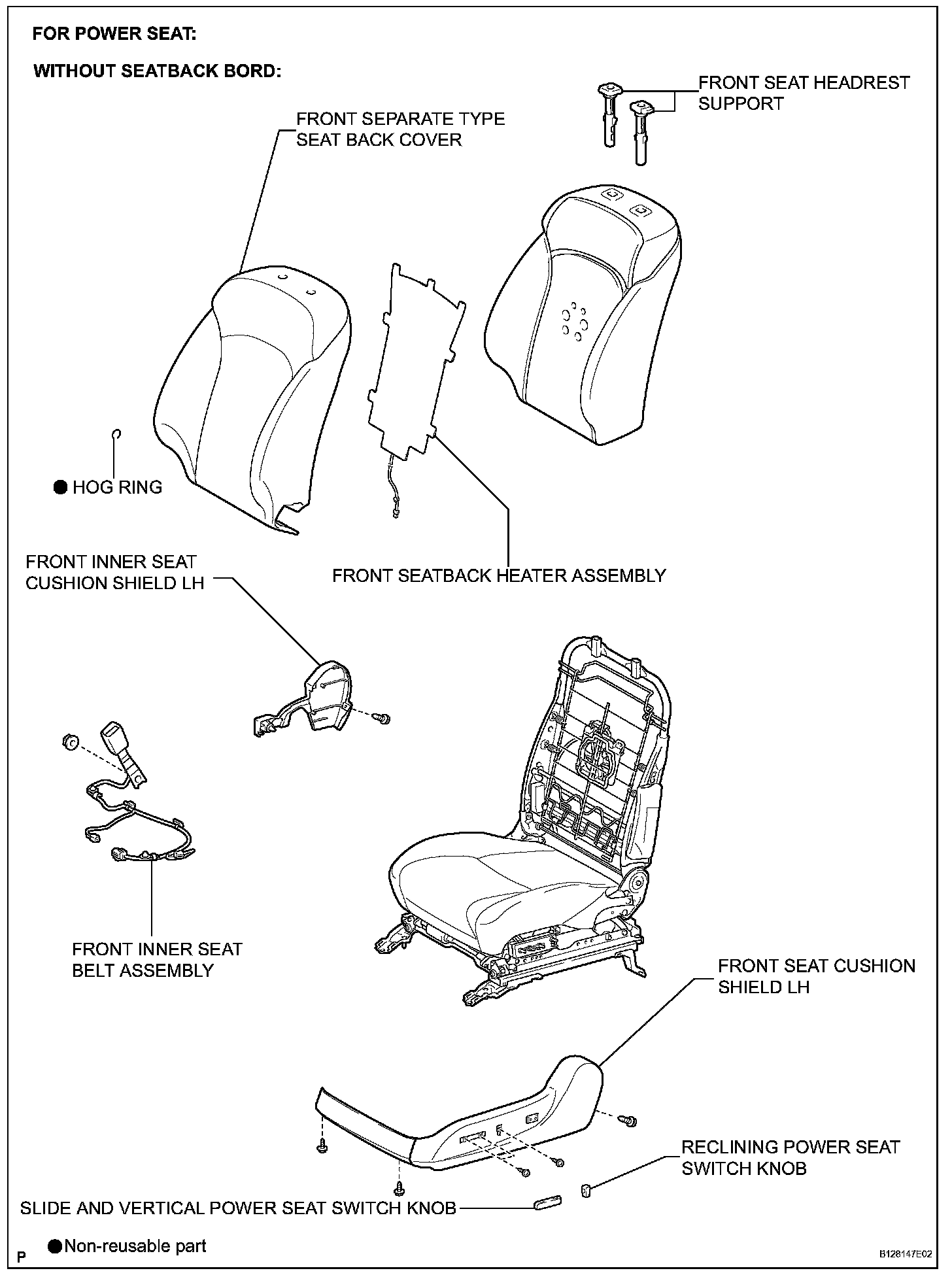

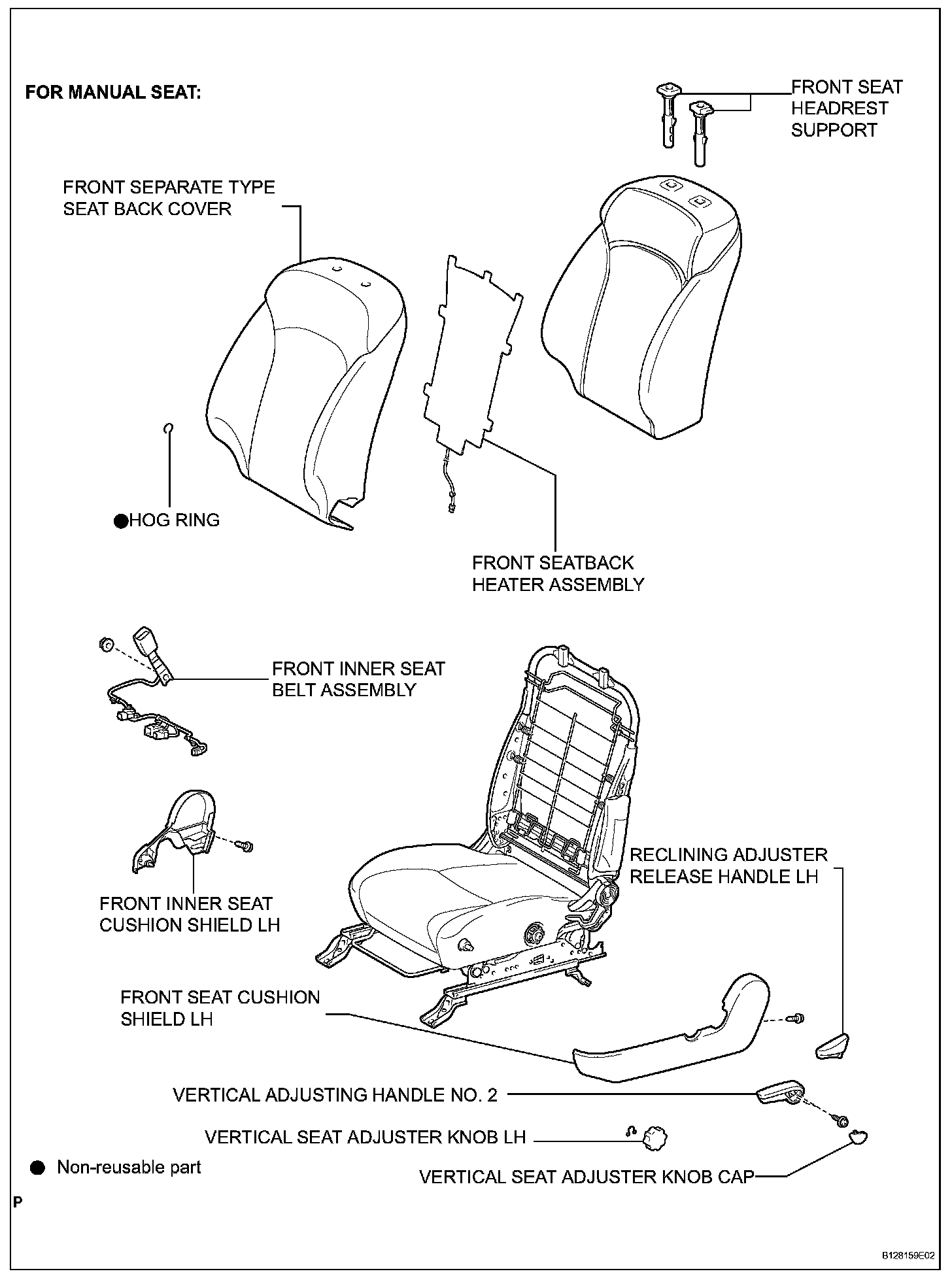

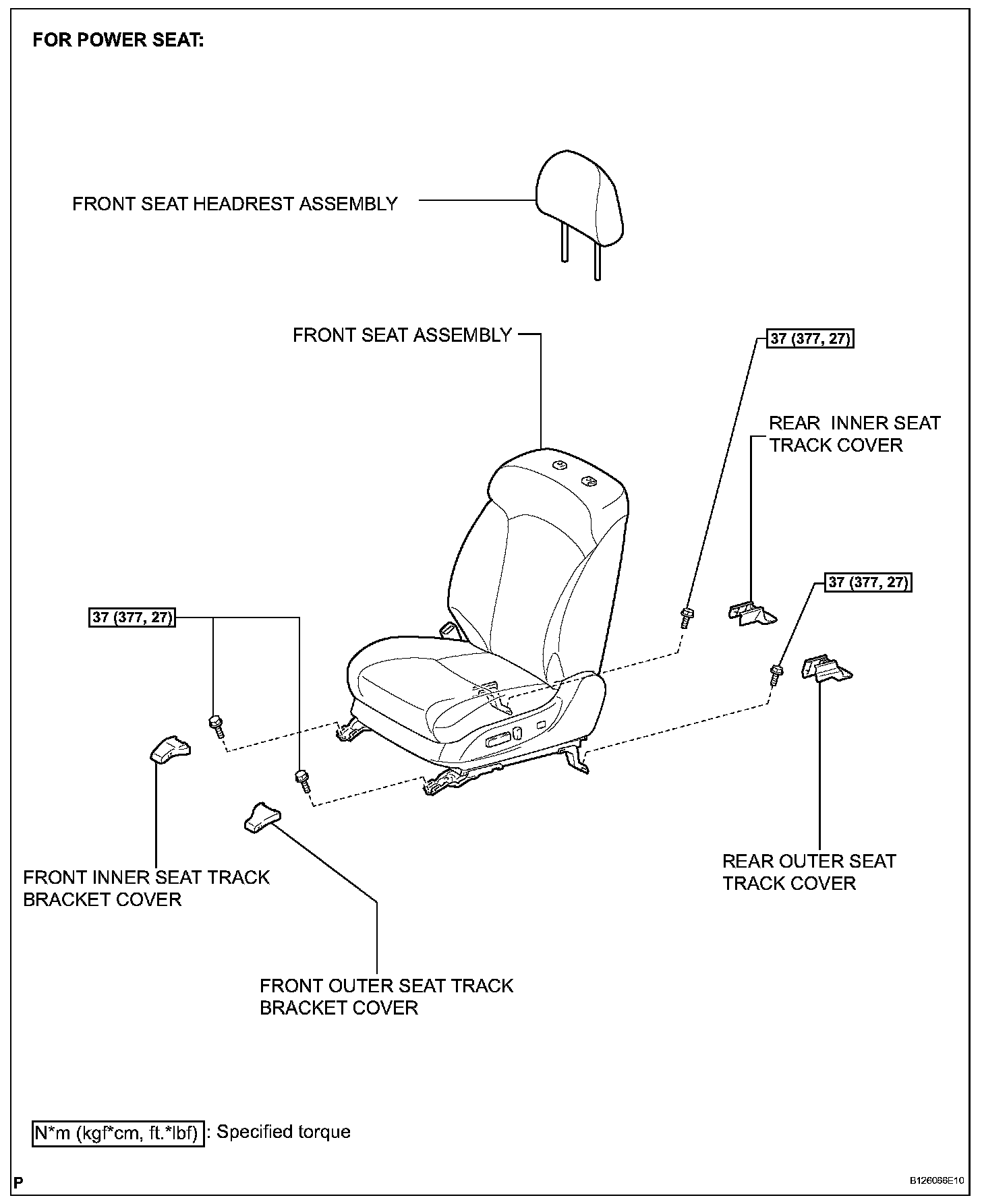

Front Seatback Heater:

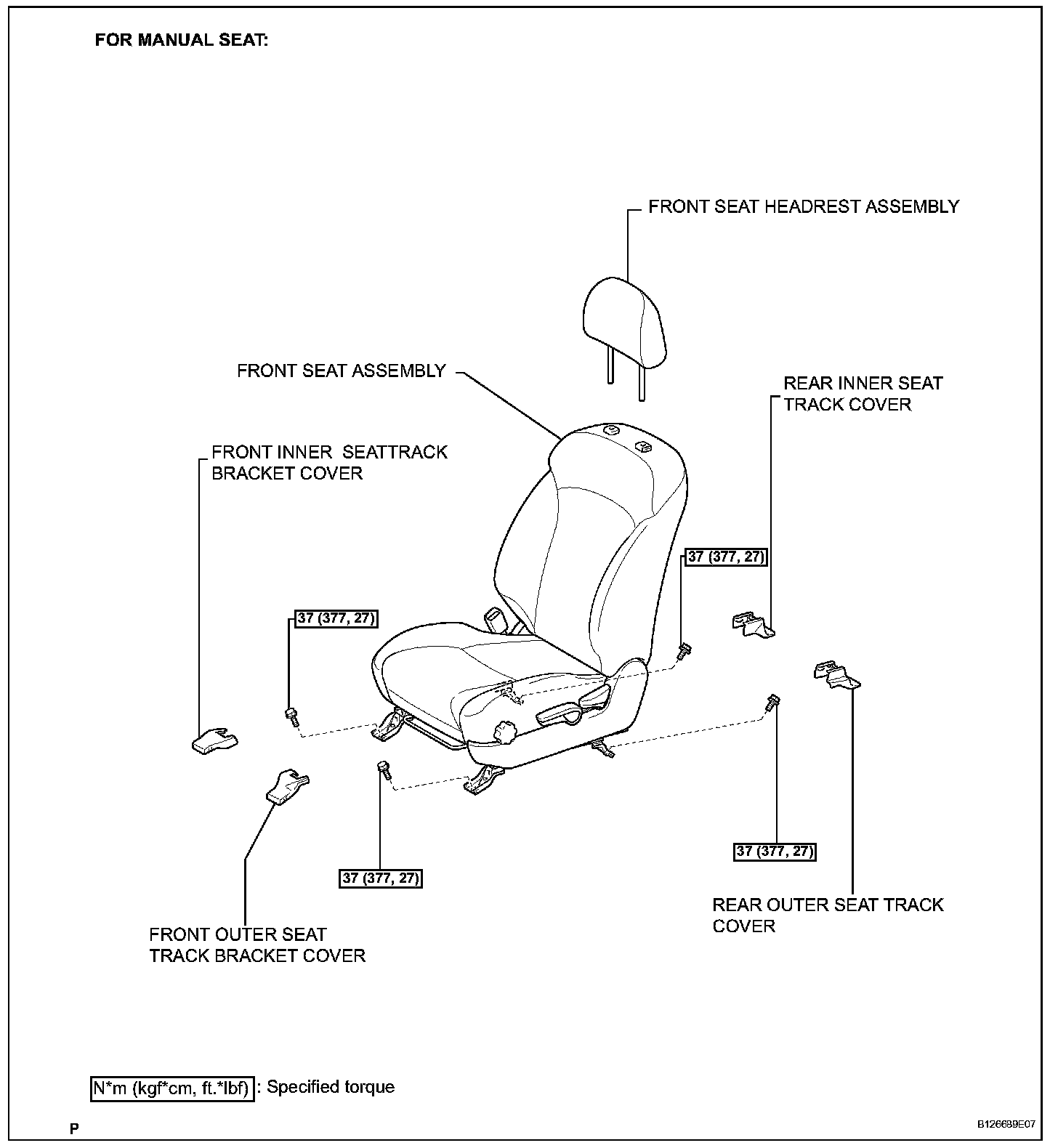

Front Seatback Heater:

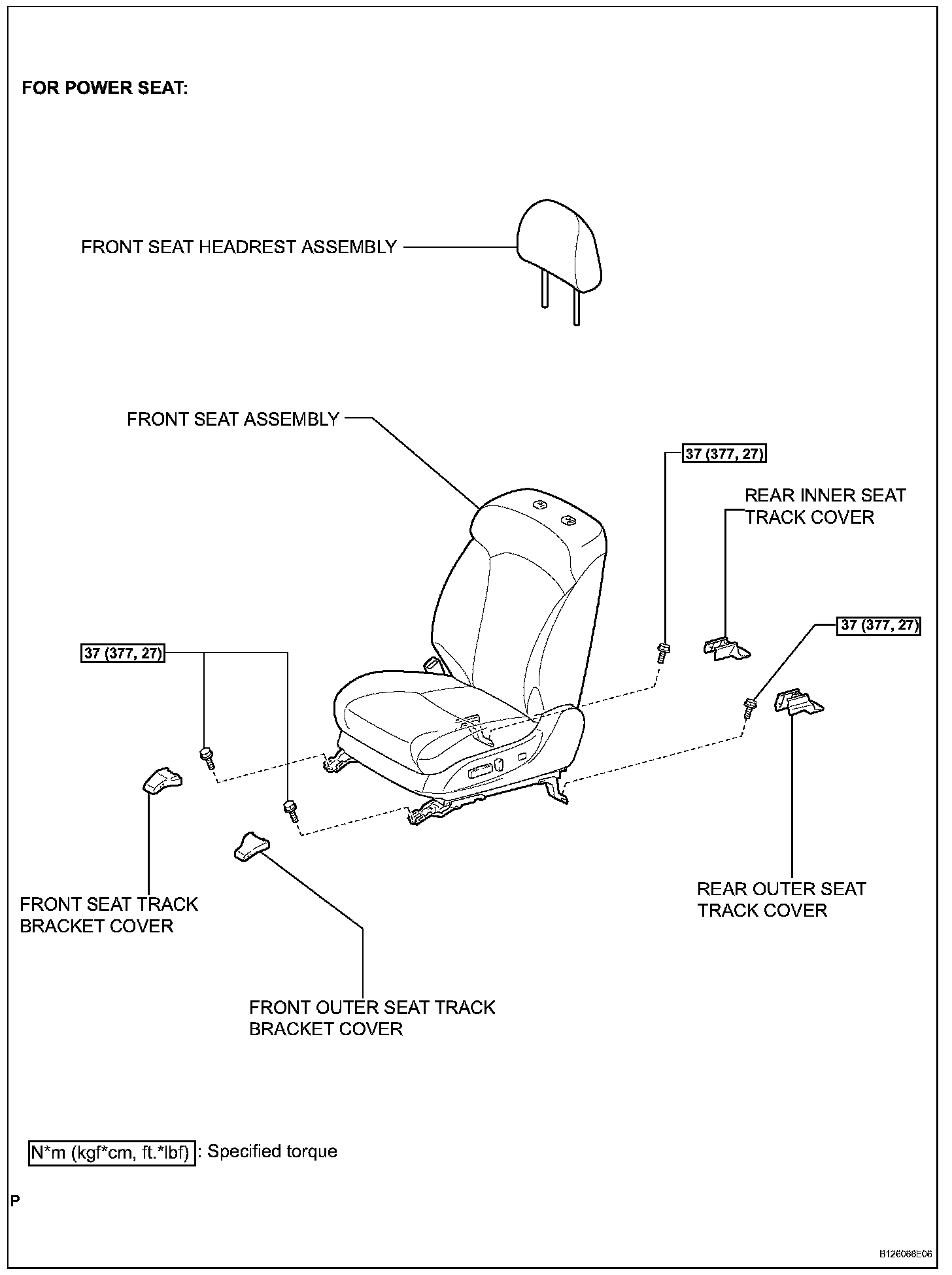

Front Seatback Heater:

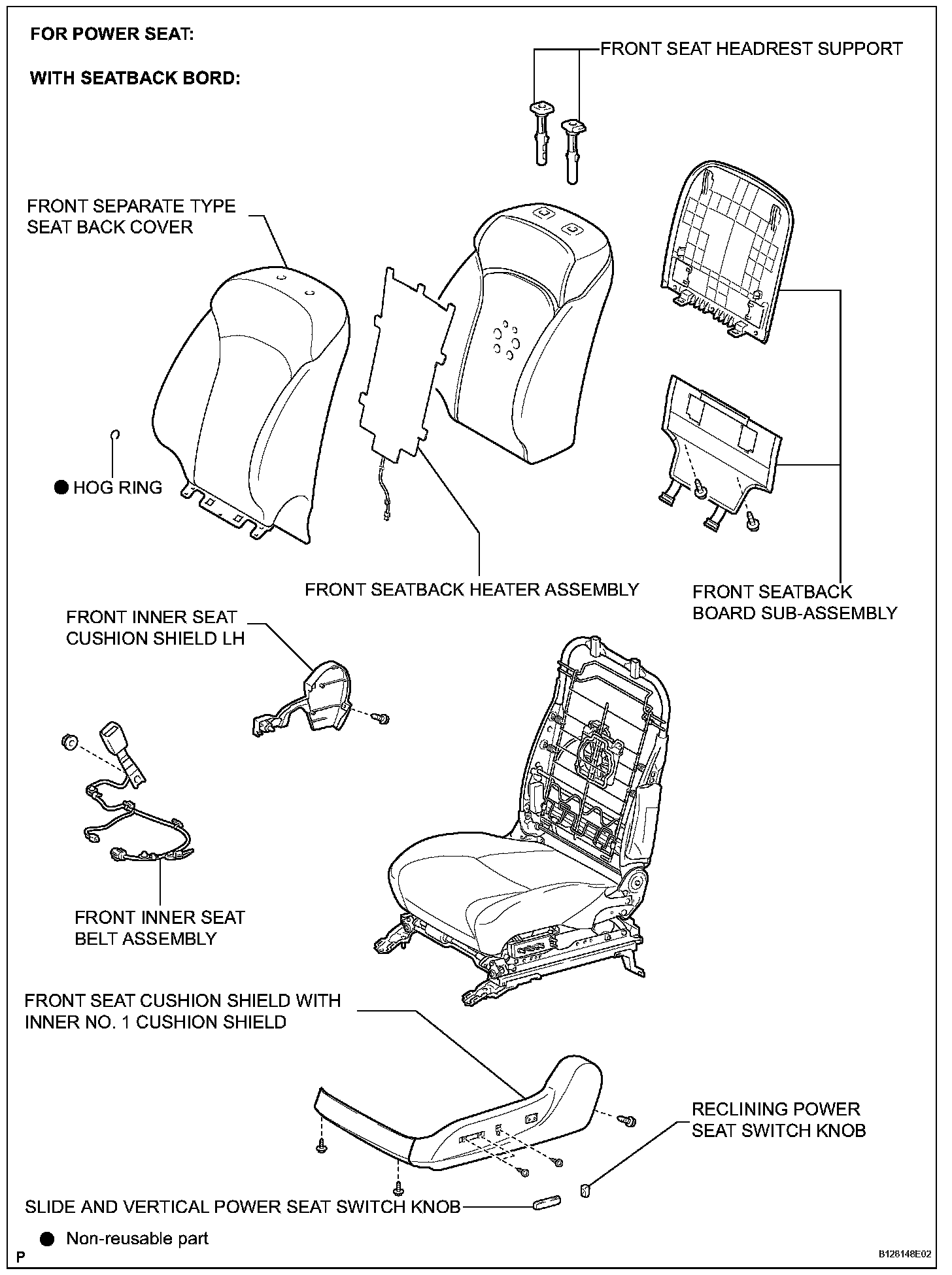

Front Seatback Heater:

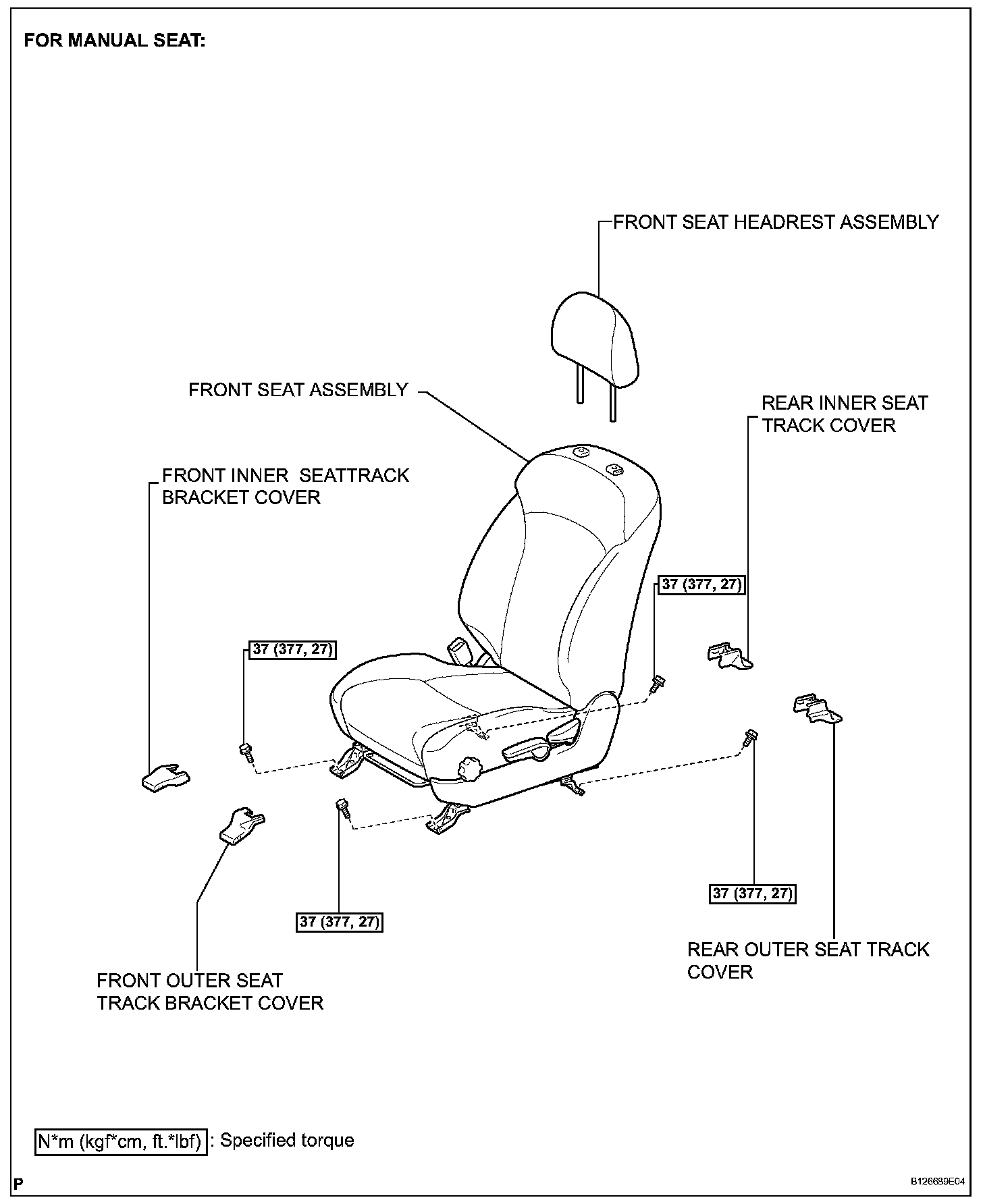

Front Seatback Heater:

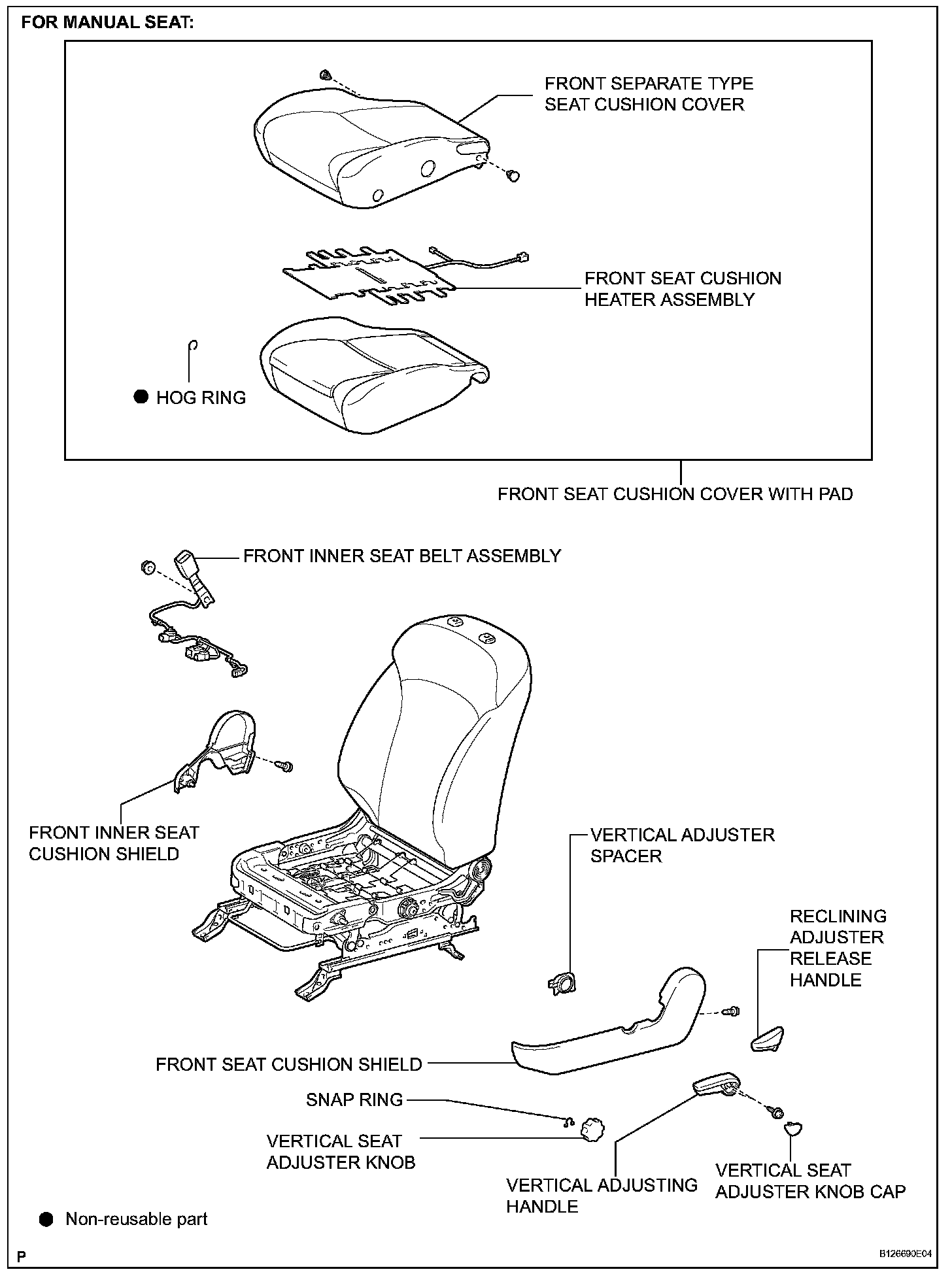

Front Seat Cushion Heater:

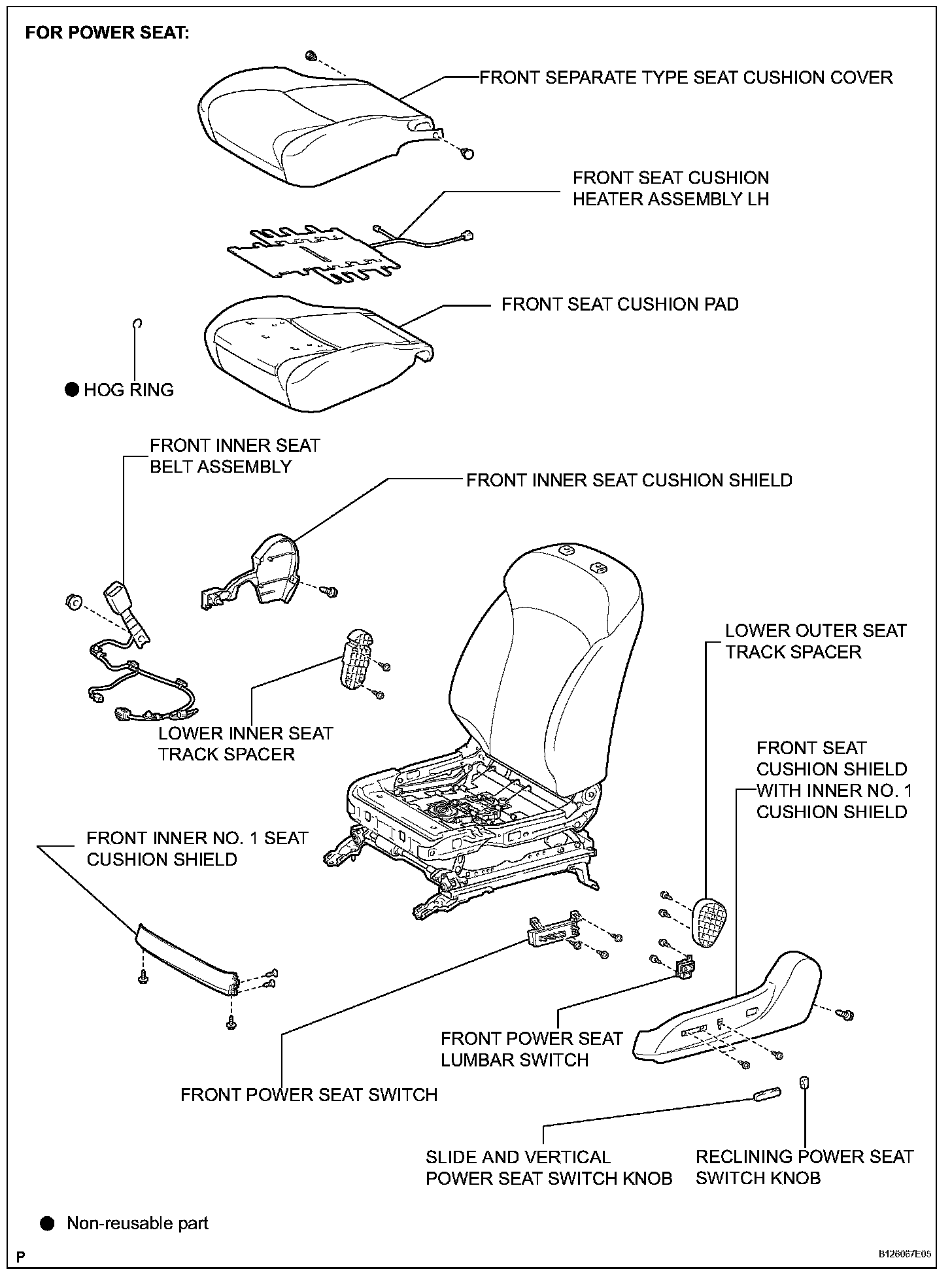

Front Seat Cushion Heater:



Front Seat Cushion Heater:



Front Seat Cushion Heater:



Seat Heater Control:
