Service Data

Fig 1: Service Data Table - Differential (1 Of 2)
G02982864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

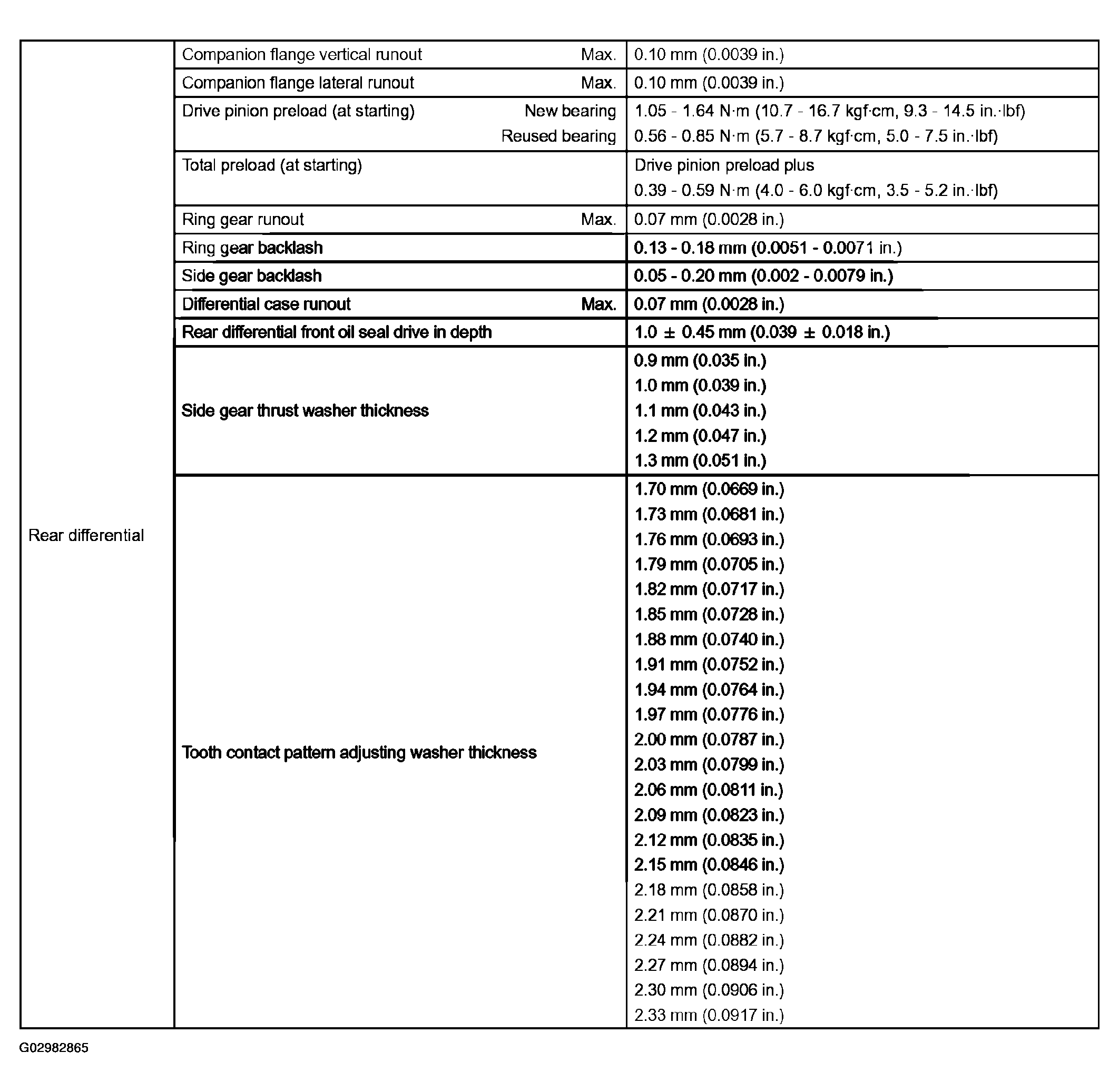

Fig 2: Service Data Table - Differential (2 Of 2)
G02982865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
