Fail-Safe Chart

If any of the following codes are recorded, the ECM enters the fail-safe mode.

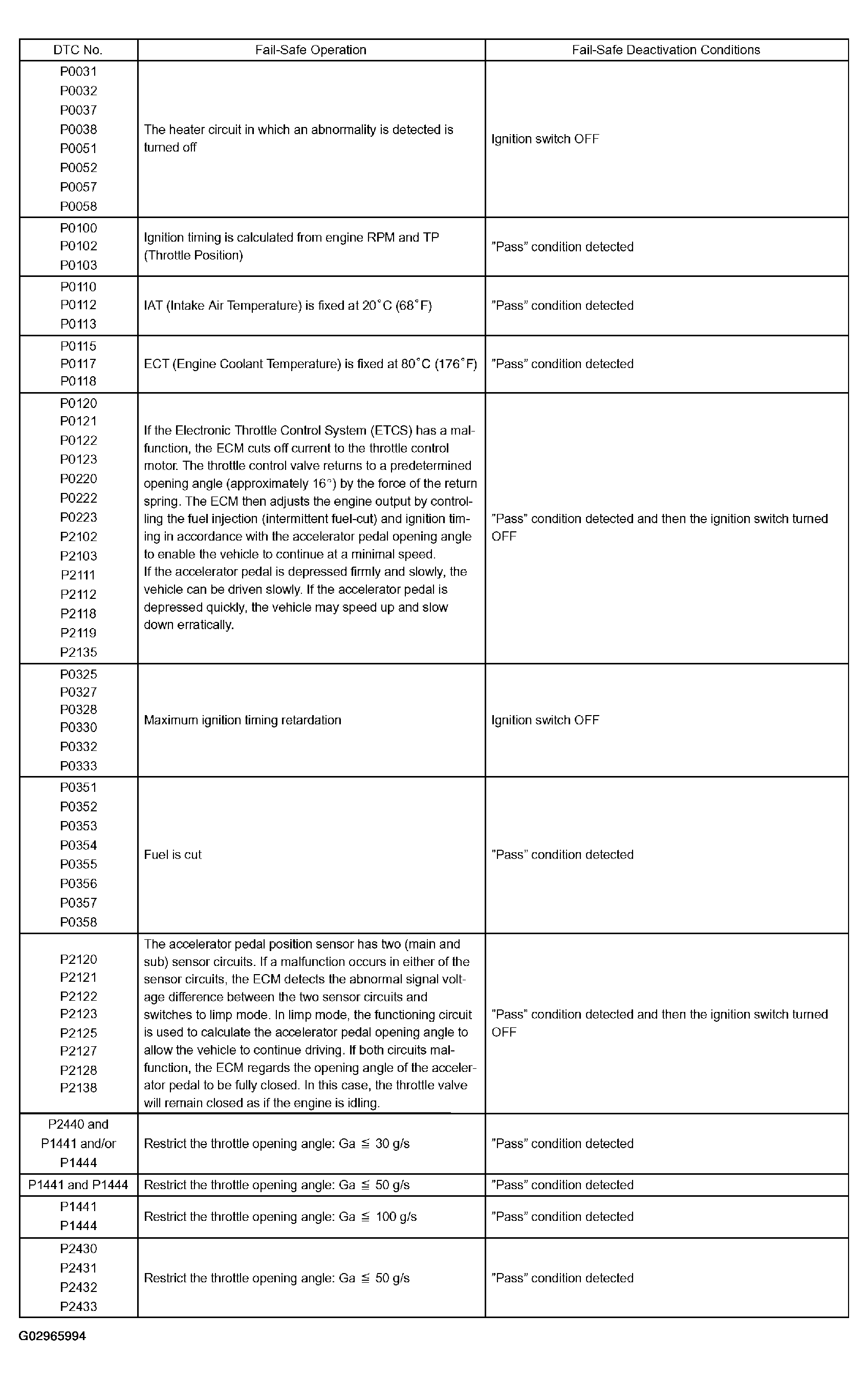

Fig 1: Fail-Safe Chart
G02965994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
