Parts Location

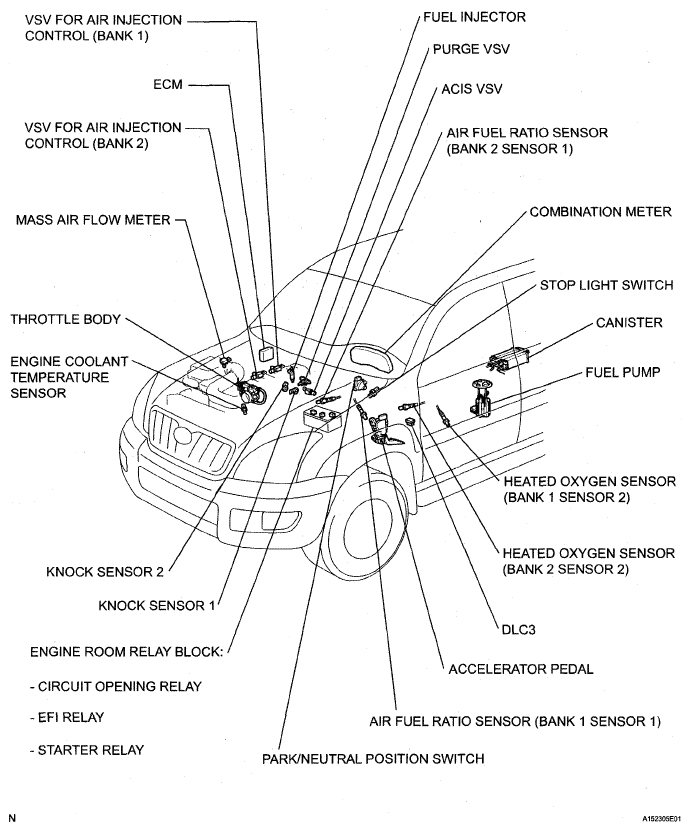

Fig 1: Identifying SFI System Replacement Components (1 Of 2)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Fig 2: Identifying SFI System Replacement Components (2 Of 2)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

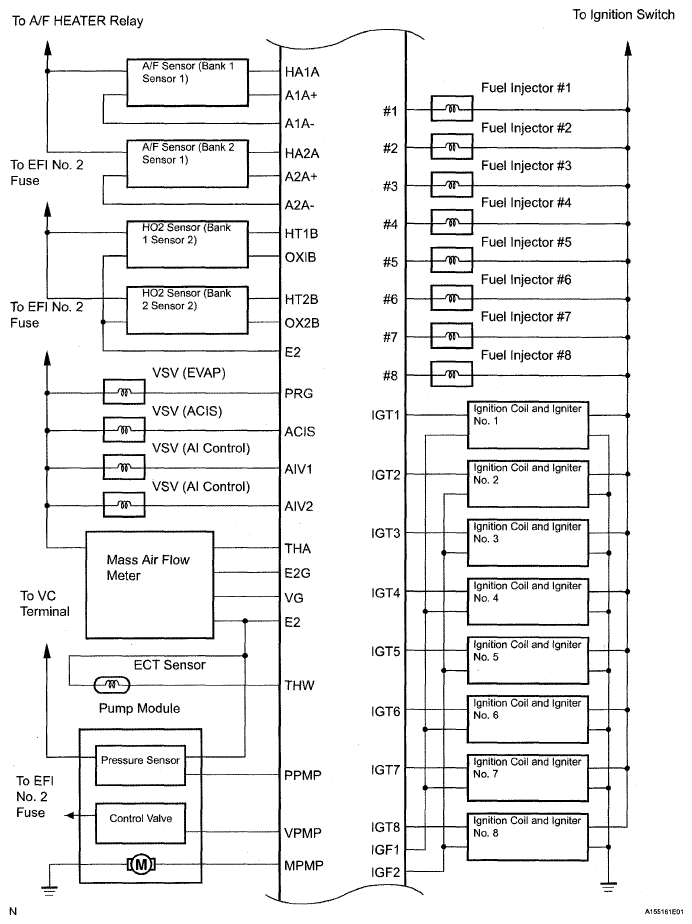

Fig 3: Identifying SFI System Diagram (1 Of 3)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

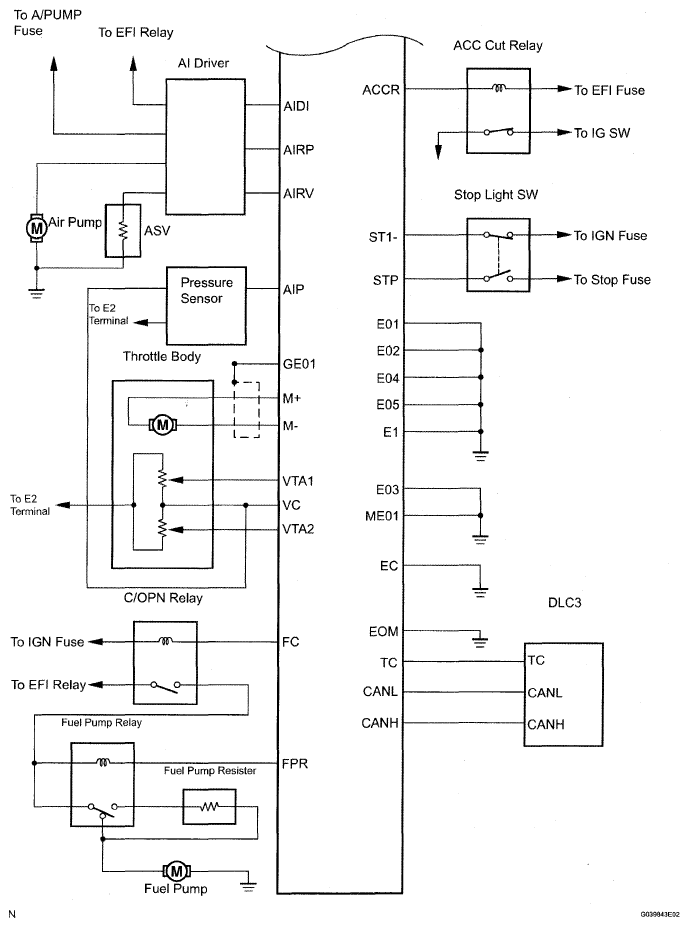

Fig 4: Identifying SFI System Diagram (2 Of 3)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Fig 5: Identifying SFI System Diagram (3 Of 3)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
