Low Pitched Horn ASSY: Replacement

  1. REMOVE LOW PITCHED HORN ASSY
    1. Disconnect the connector.
    2. Remove the bolt and horn.
  2. INSTALL LOW PITCHED HORN ASSY
    1. Place the stay onto the baffle part in the radiator support upper, and then install the horn with the bolt.

      Torque: 20 N.m (199 kgf.cm, 15 ft.lbf)

    2. Connect the connector.

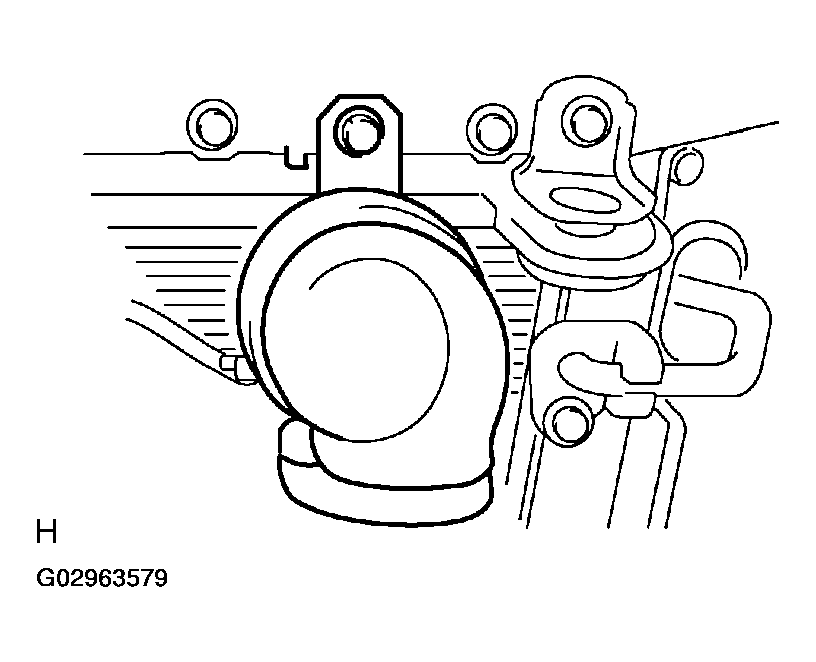

      Fig 1: Installing Low Pitched Horn Assy
      G02963579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
