Power Mirror Control System (With Memory) - Diagnostics: Location

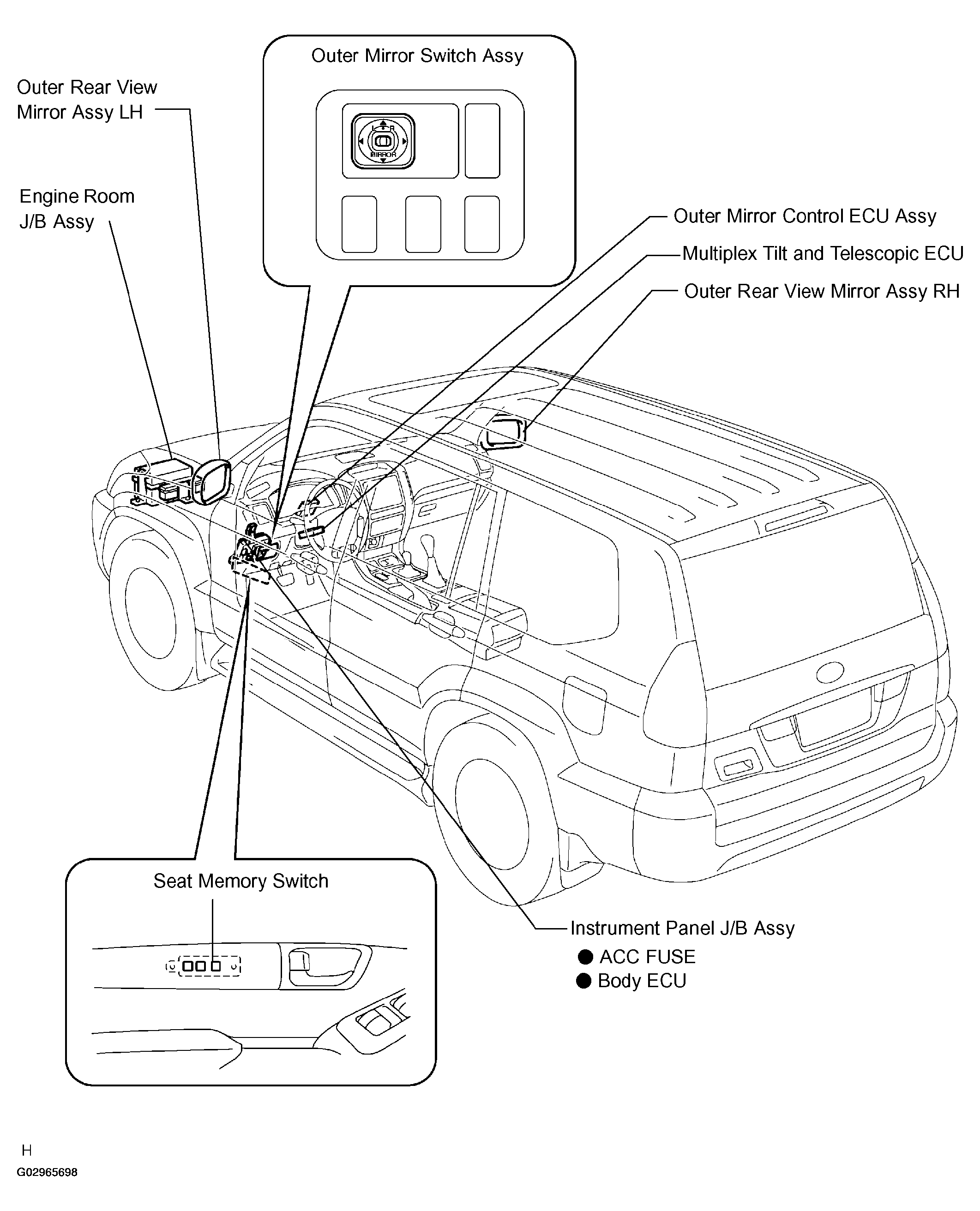

Fig 1: Locating Power Mirror Control System Components (W/Memory)
G02965698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
