Rear Axle Hub Bolt: Components

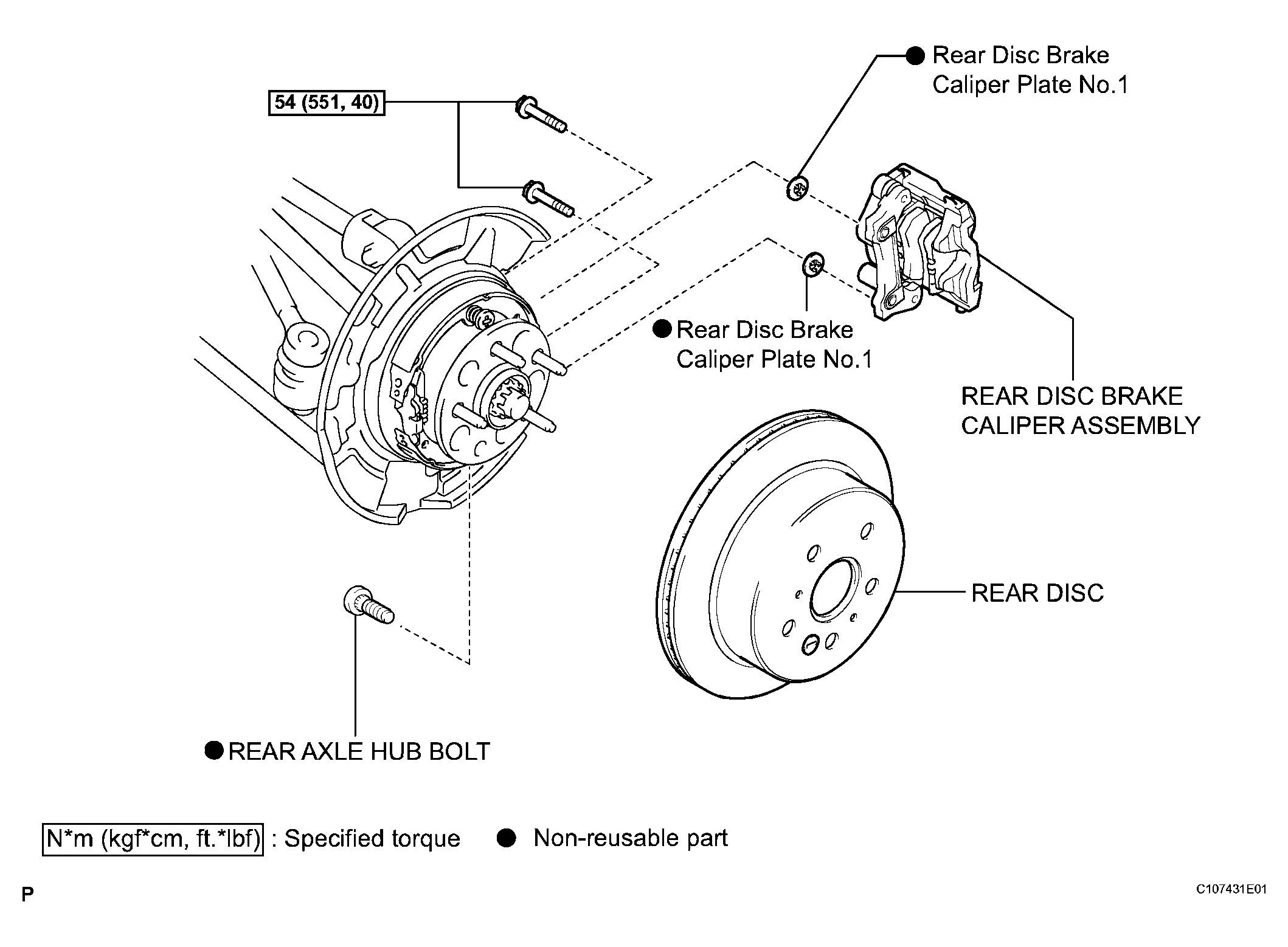

Fig 1: Installing Rear Axle Hub Bolt With Torque Specifications
G04024518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
