Fuse Block

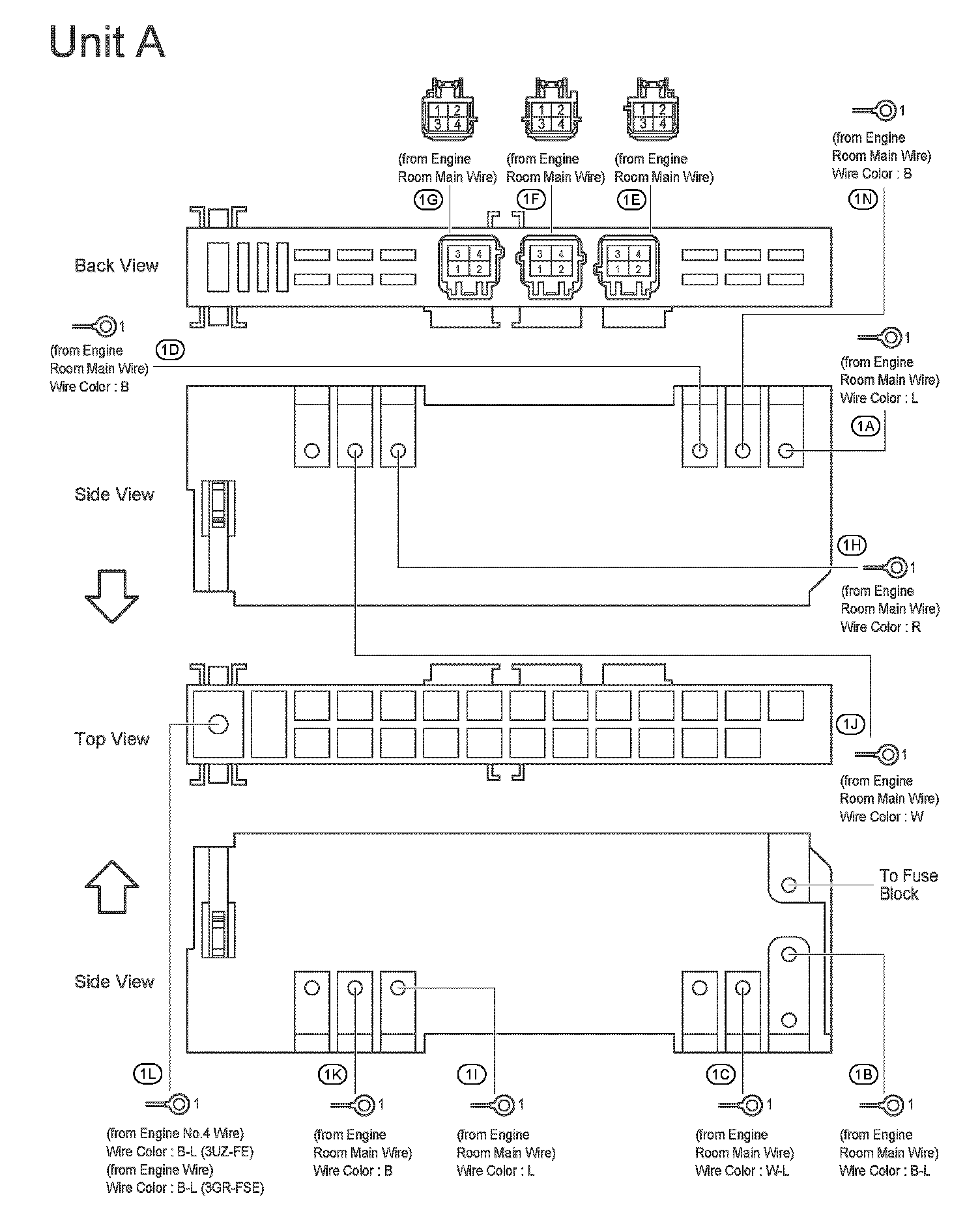

Engine Room R/B, J/B No.1-Near The Battery:

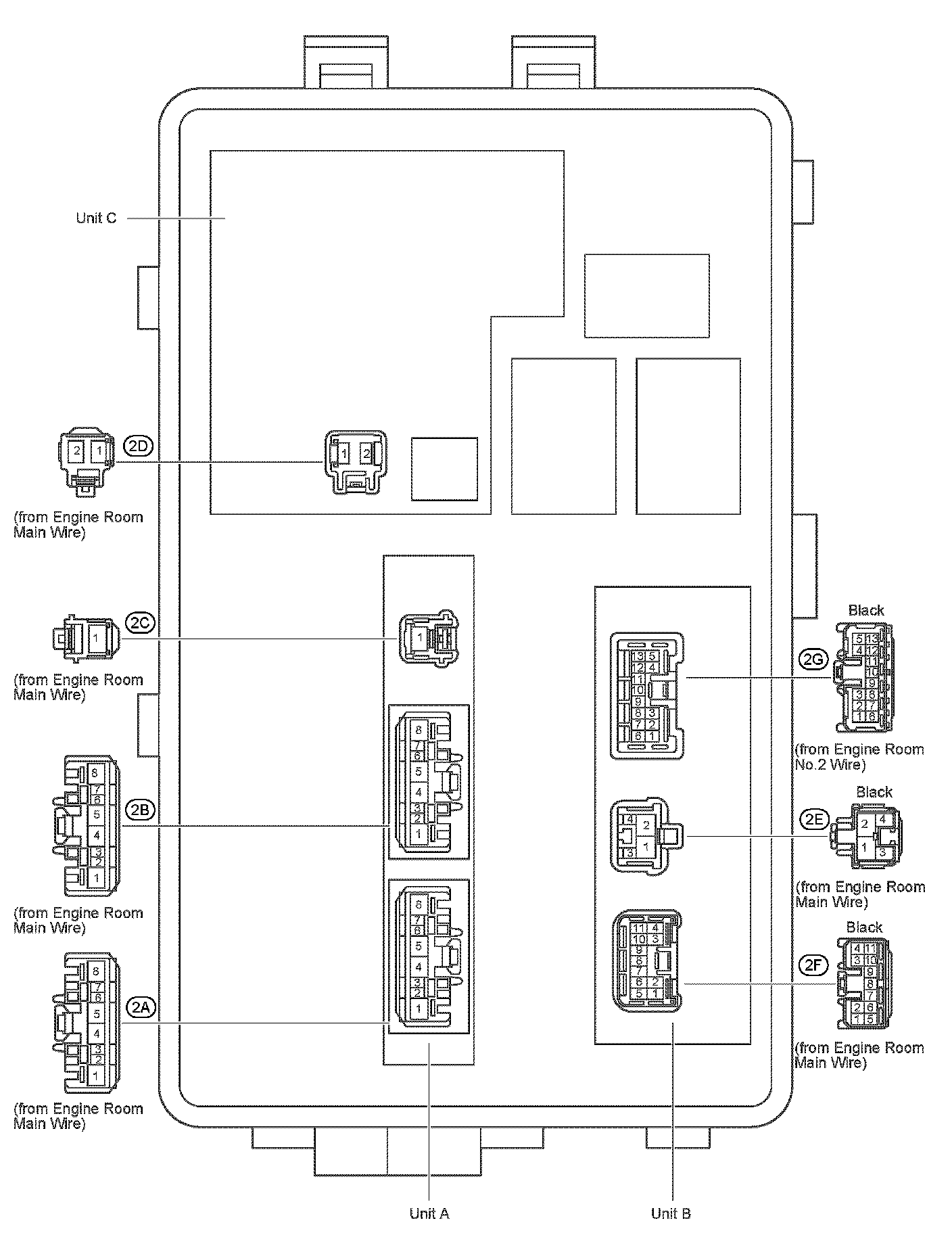

Engine Room R/B, J/B No.2-Engine Compartment:

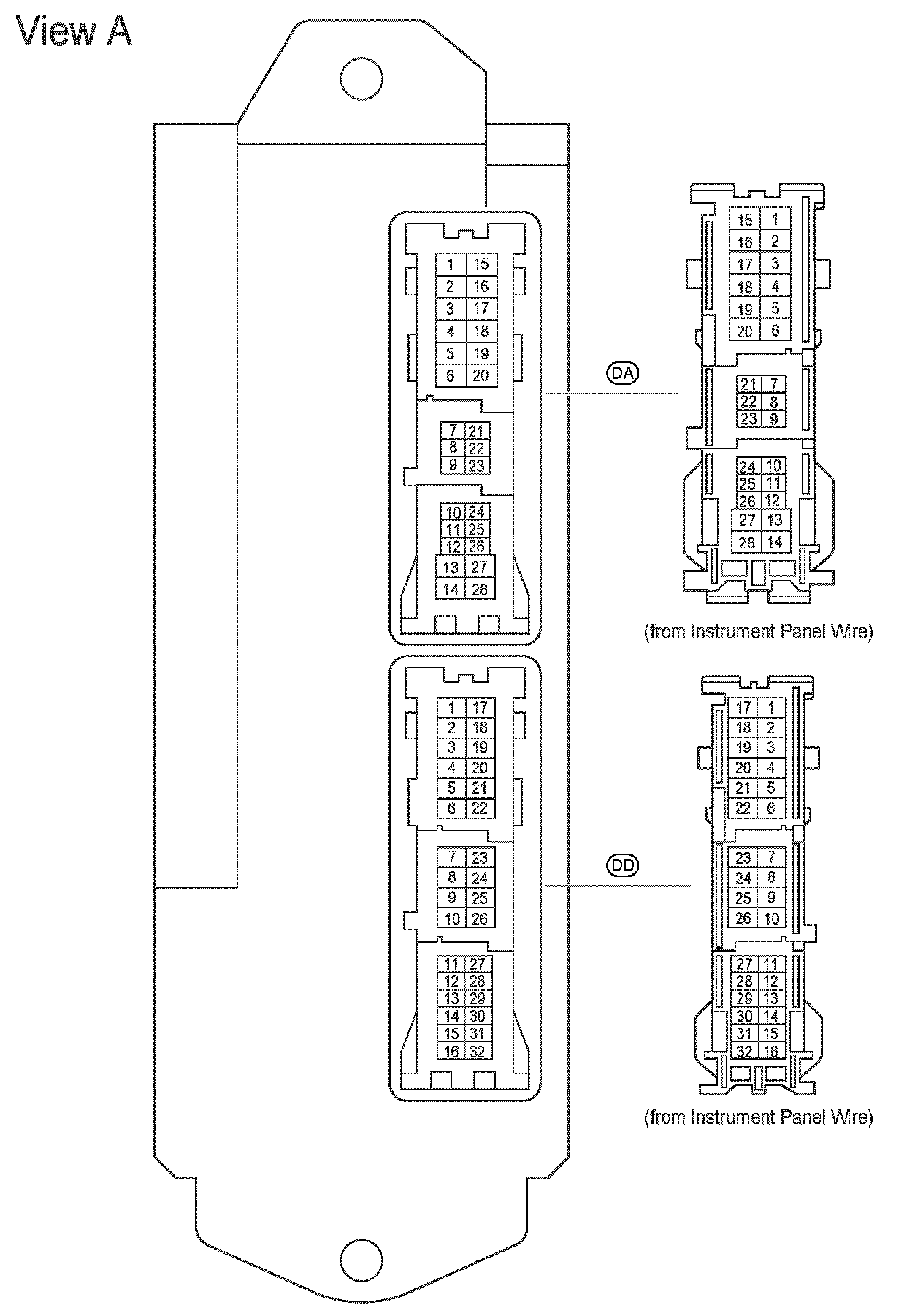

Cowl Side J/B LH-Cowl Side Left:

Cowl Side J/B LH-Cowl Side Left:

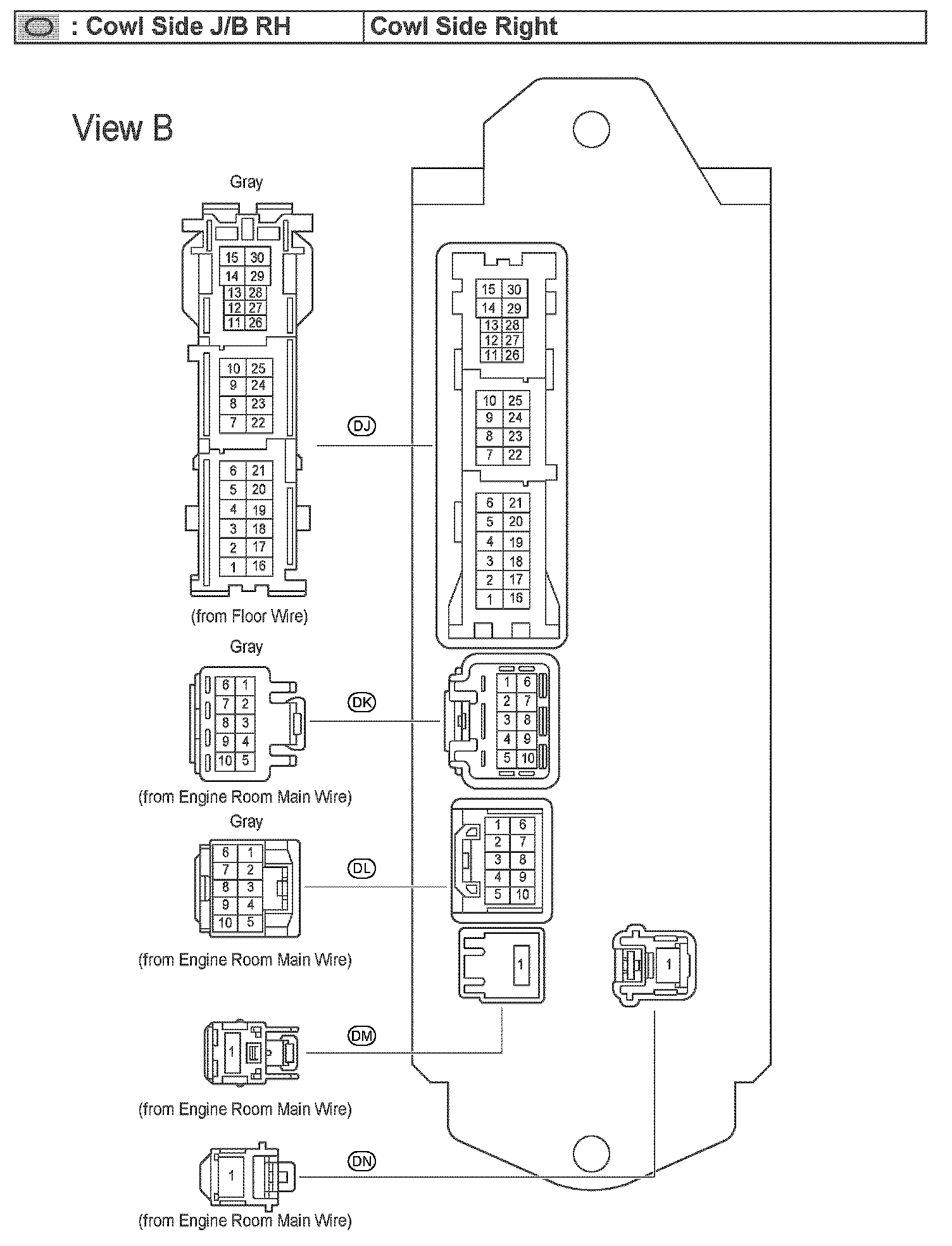

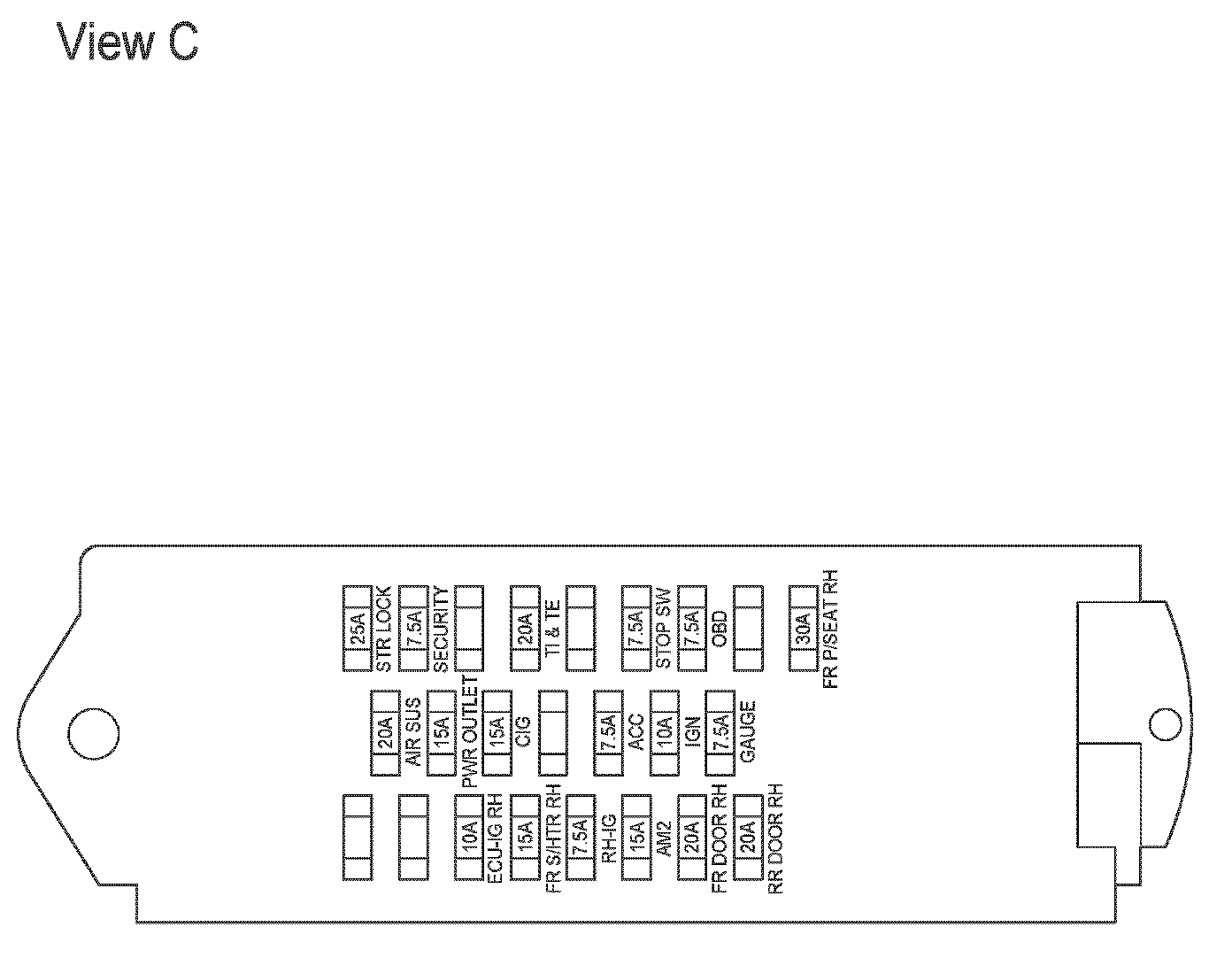

Cowl Side J/B RH-Cowl Side Right:

Cowl Side J/B RH-Cowl Side Right:

Cowl Side J/B RH-Cowl Side Right:

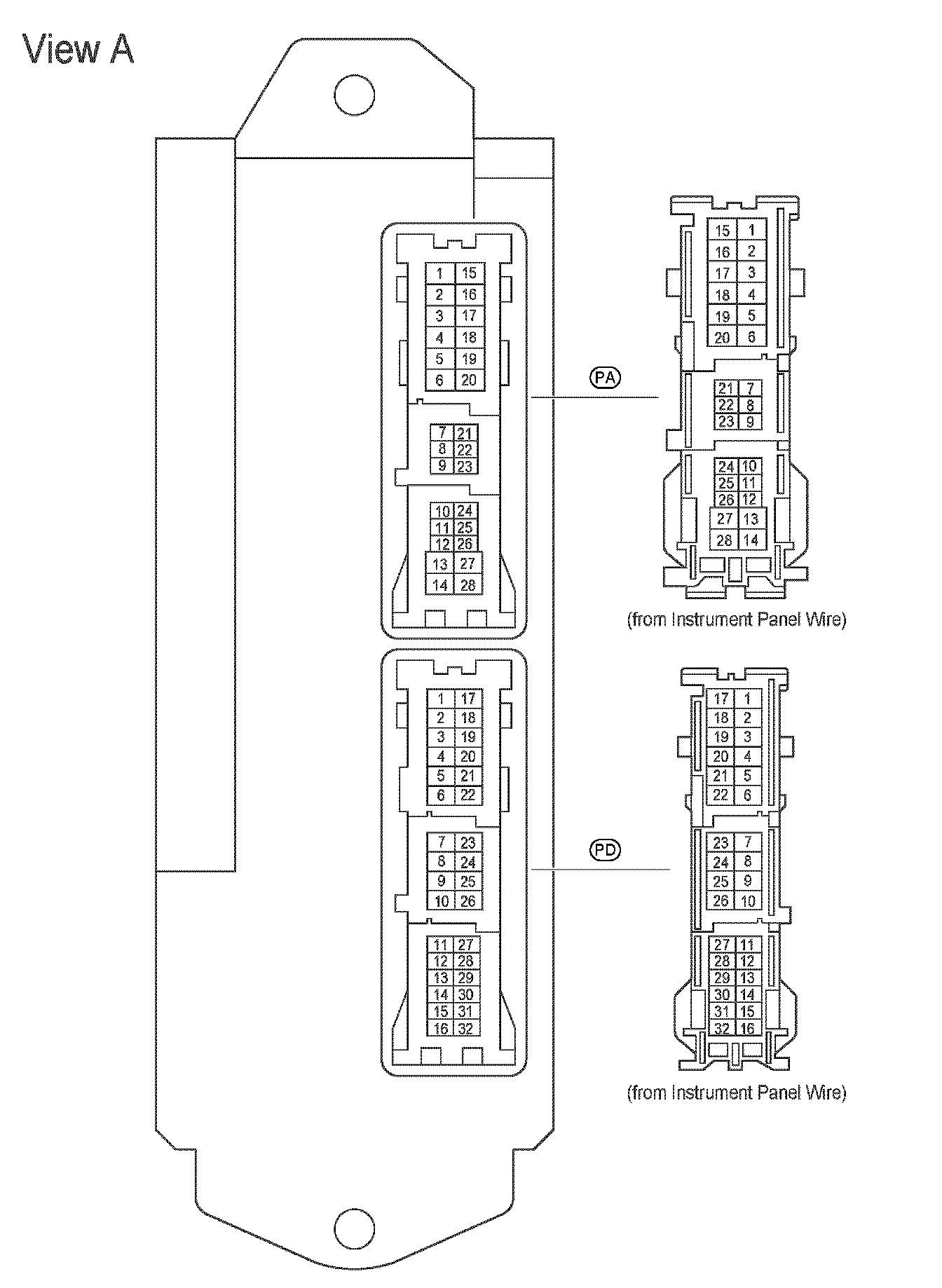

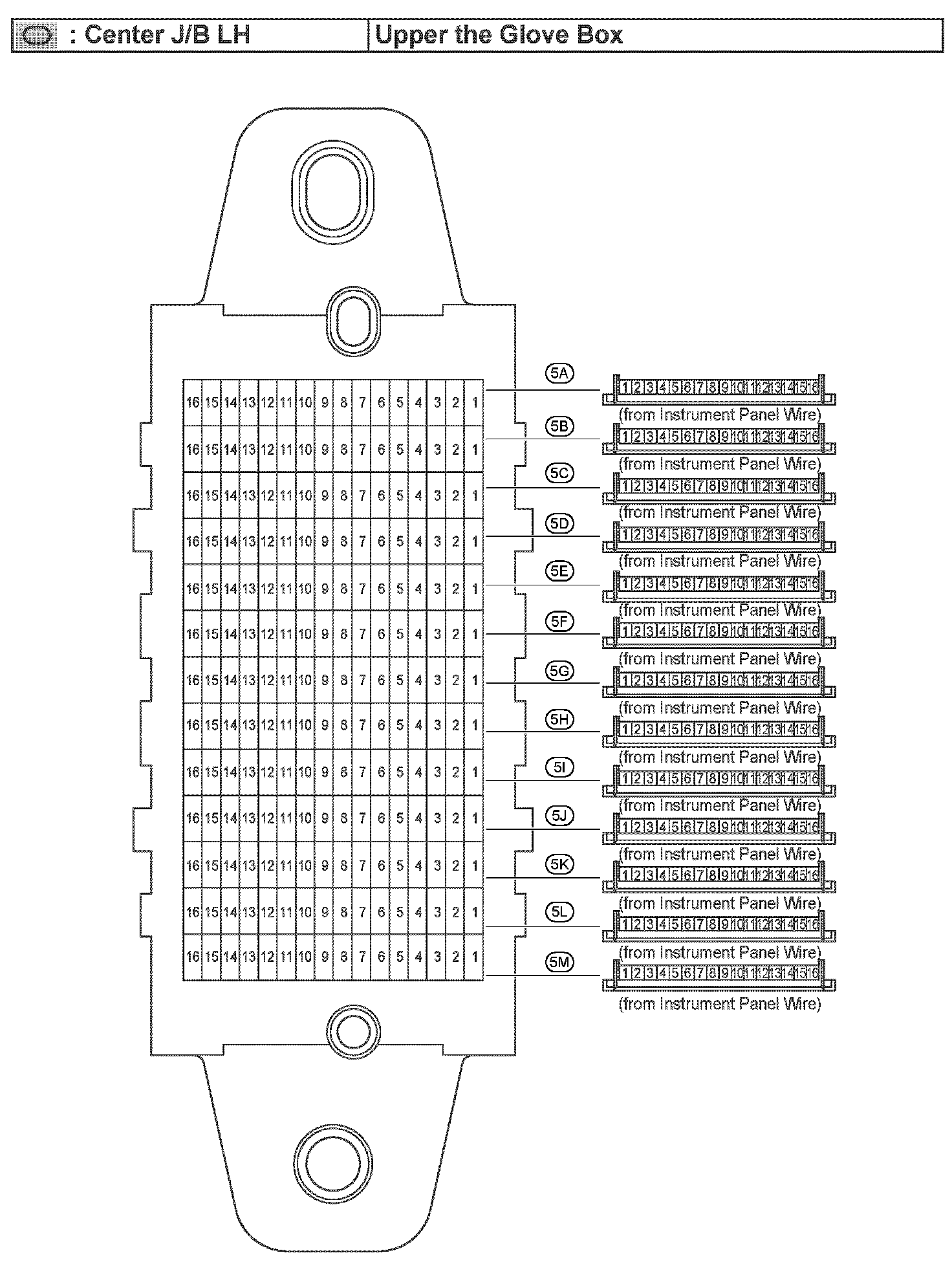

Center J/B LH-Upper The Glove Box:

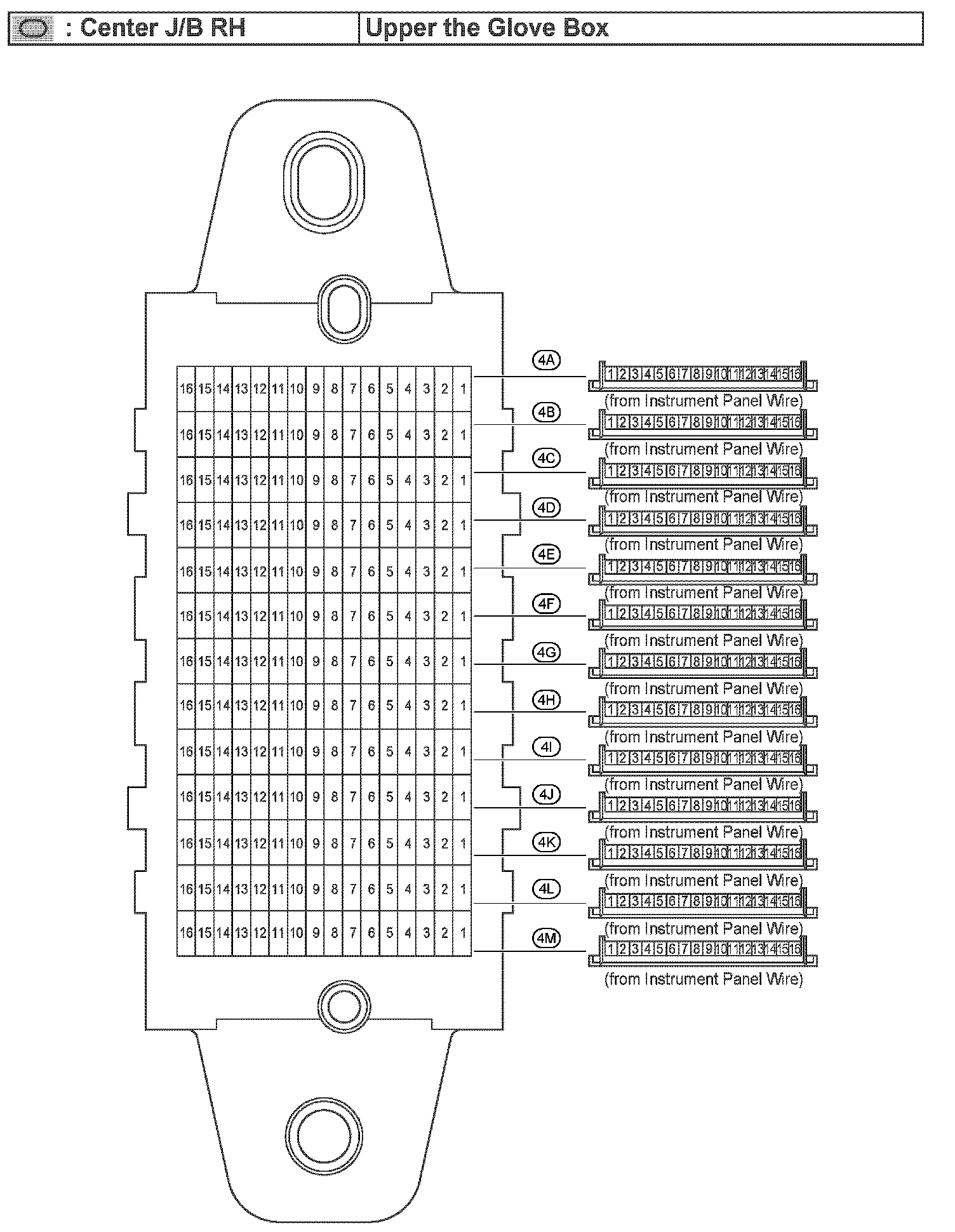

Center J/B RH-Upper The Glove Box:

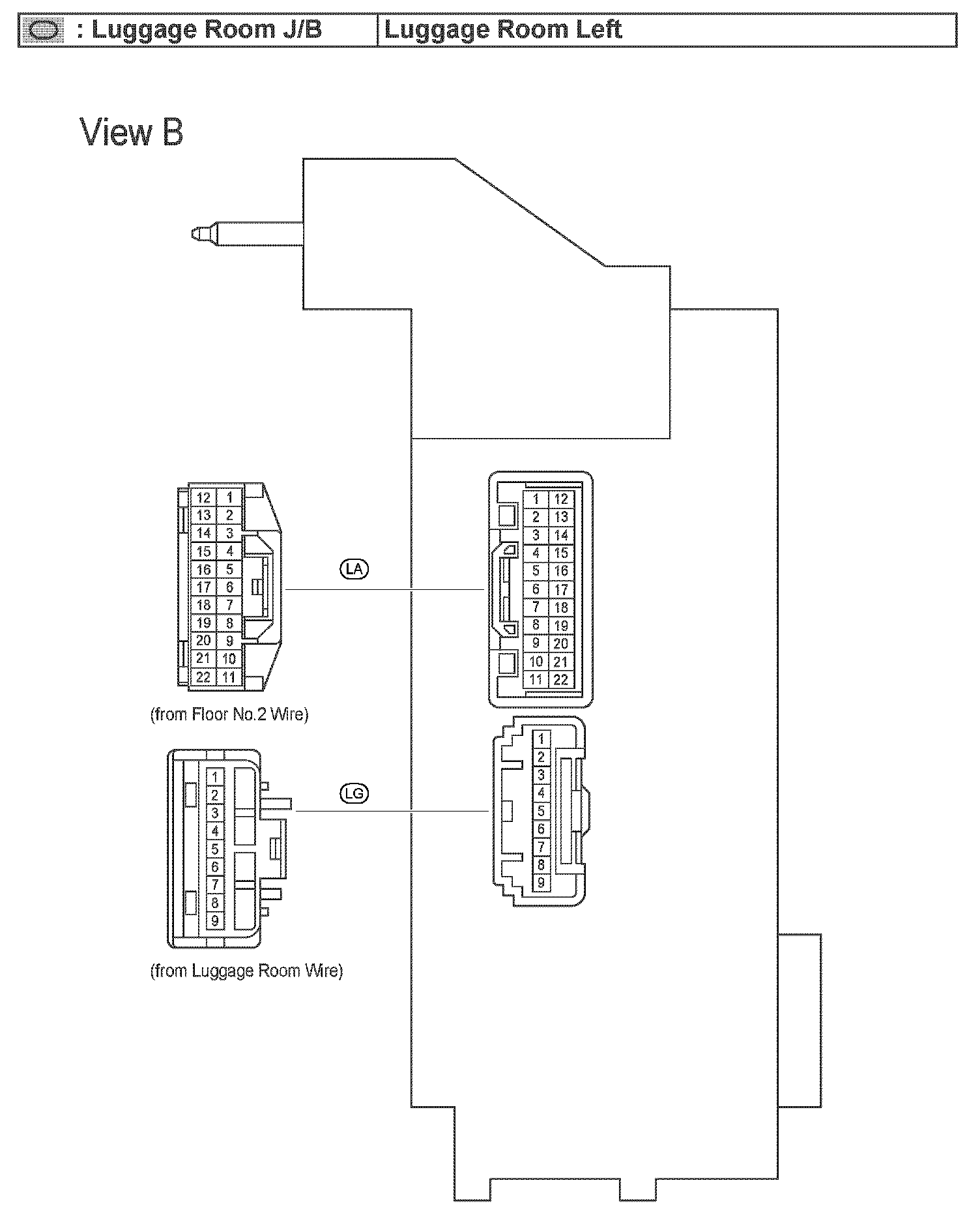

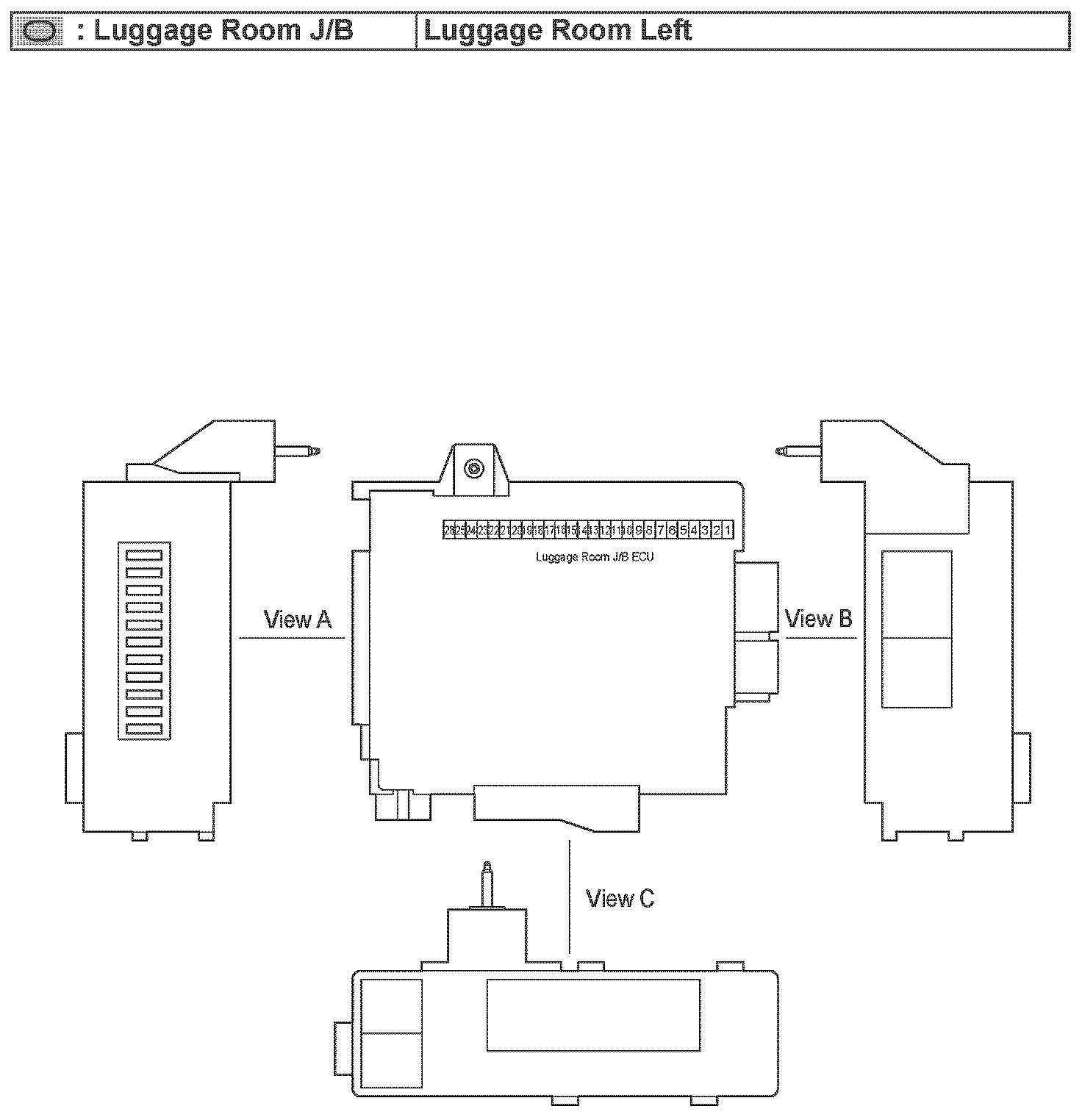

Luggage Room J/B-Luggage Room Left:

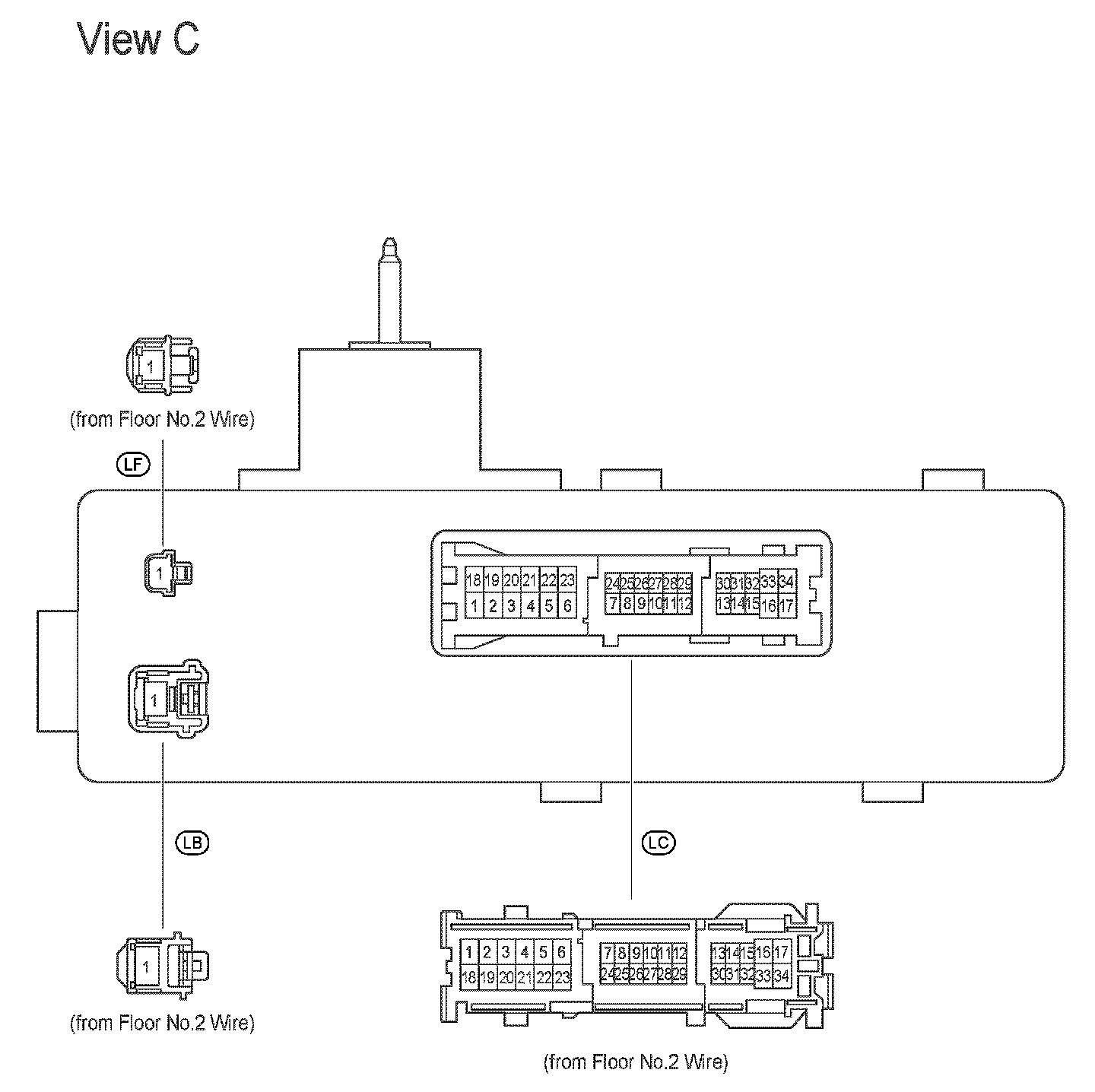

Luggage Room J/B-Luggage Room Left:

Luggage Room J/B-Luggage Room Left:

Luggage Room J/B-Luggage Room Left:

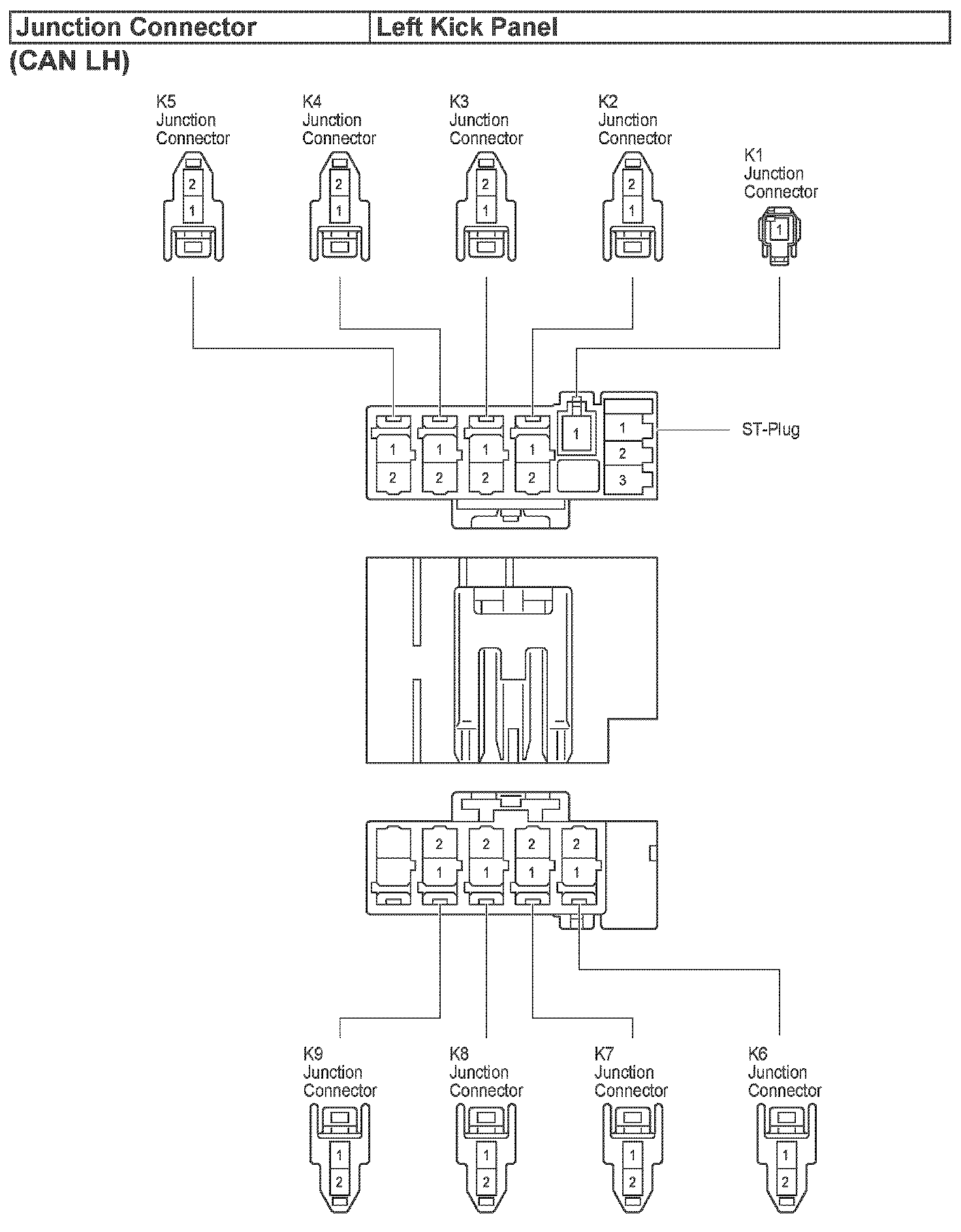

Junction Connector-Left Kick Panel:

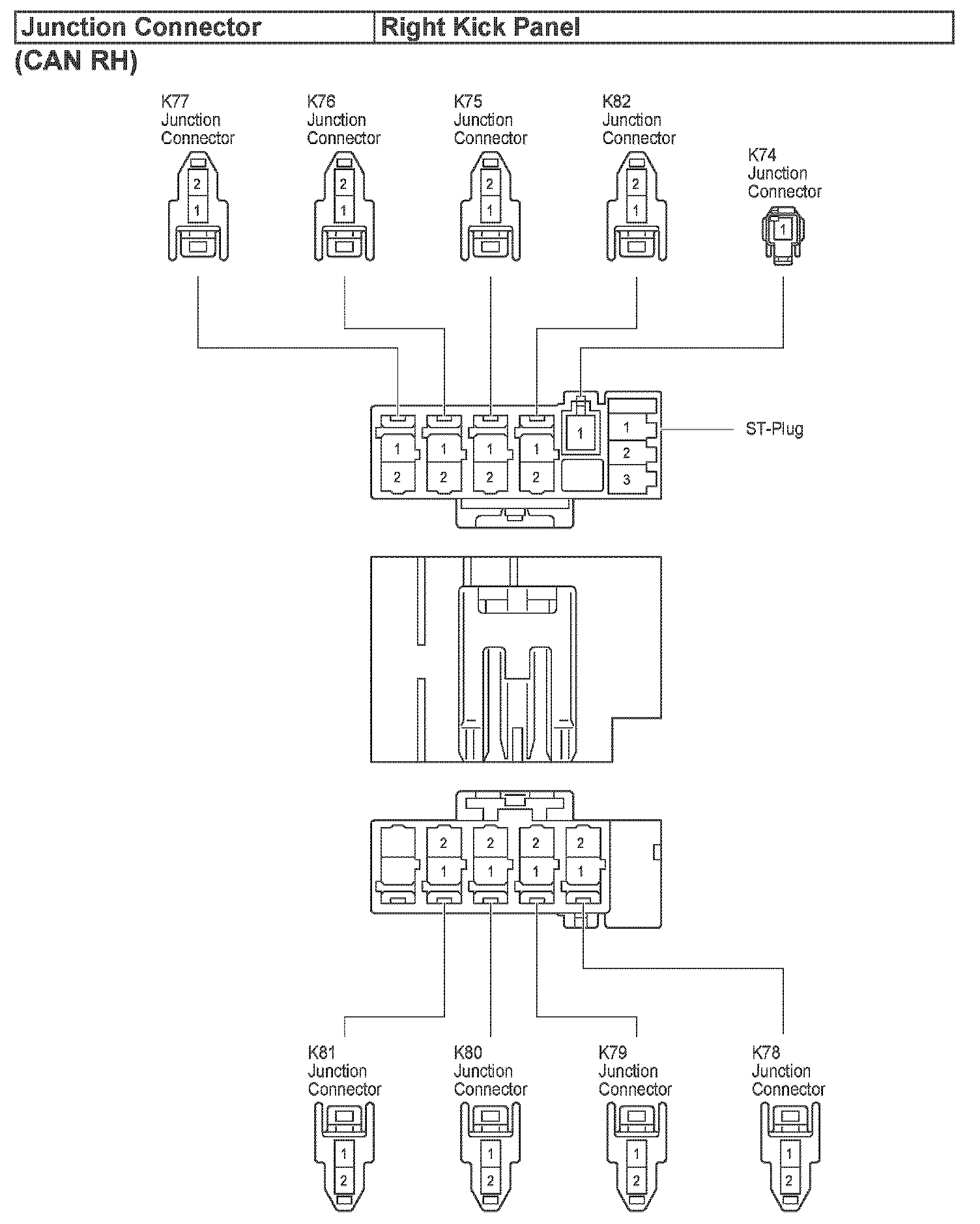

Junction Connector-Right Kick Panel:
