Radio Receiver: Components

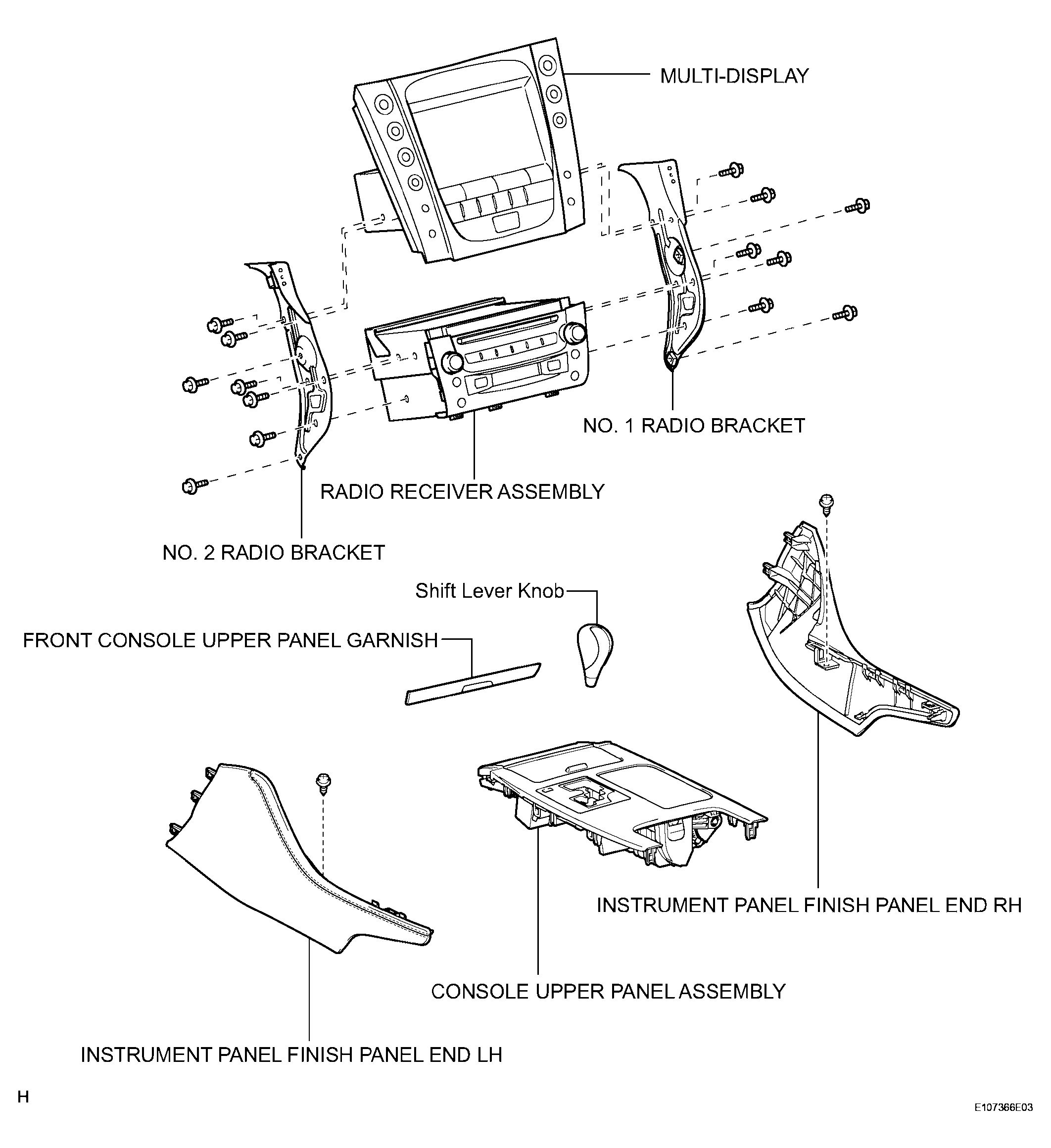

Fig 1: Identifying Radio Receiver Components

G04022186

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
