Check Mode Procedure

  1. CHECK MODE (SIGNAL CHECK) (USING HAND-HELD TESTER)
    1. Connect the hand-held tester to the DLC3.
    2. Turn the ignition switch to the ON position.
    3. Select the "SIGNAL CHECK", and proceed checking with the hand-held tester.

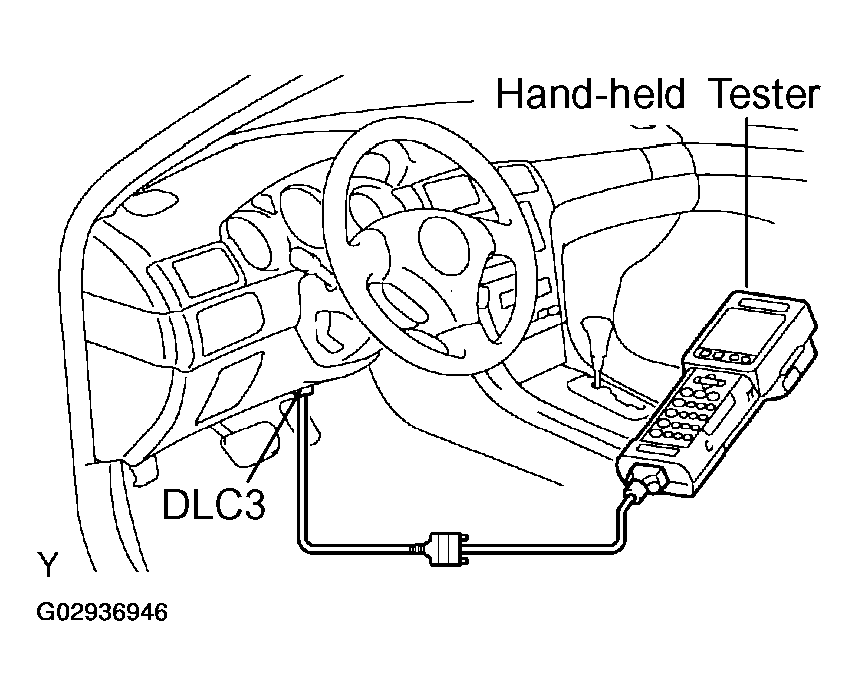

      Fig 1: Connecting Hand-Held Tester To DLC3
      G02936946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
