Power Seat for Driver's Seat without Driving Position Memory: Notes

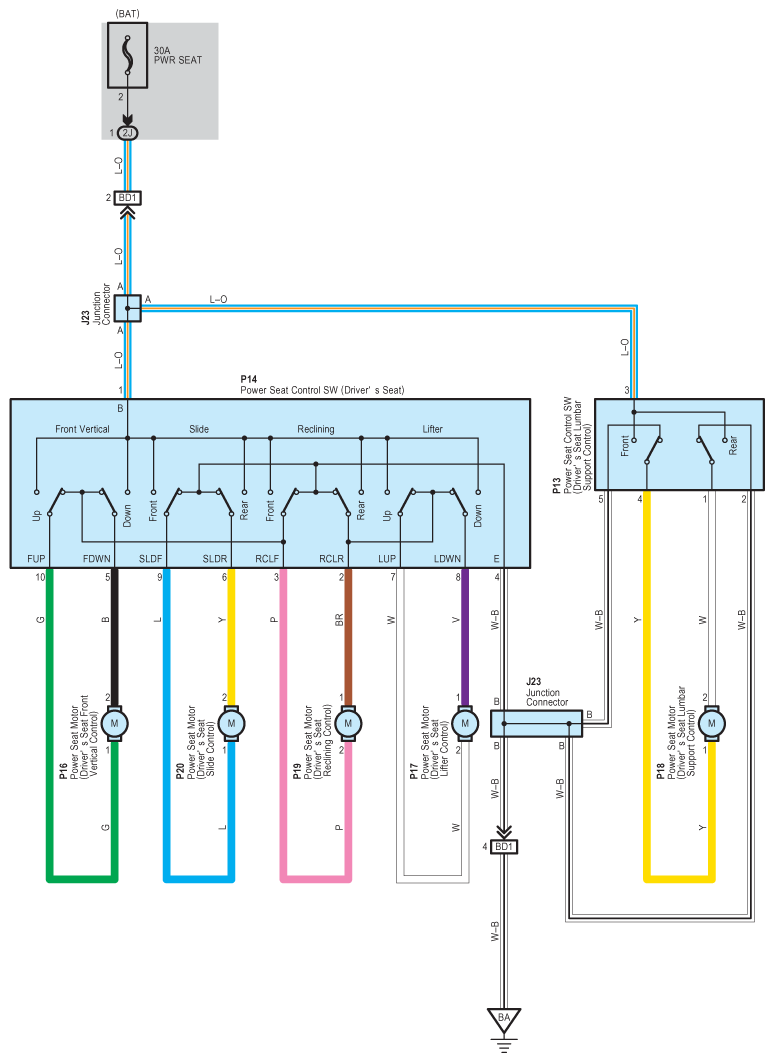

Fig 1: Power Seat For Driver's Seat Without Driving Position Memory - Wiring Diagram
G08930091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
