Freeze Frame Data

  1. FREEZE FRAME DATA
    1. Connect the hand-held tester to the DLC3.
    2. Turn the ignition switch ON.
    3. Check the freeze frame data by following the hand-held tester's display.

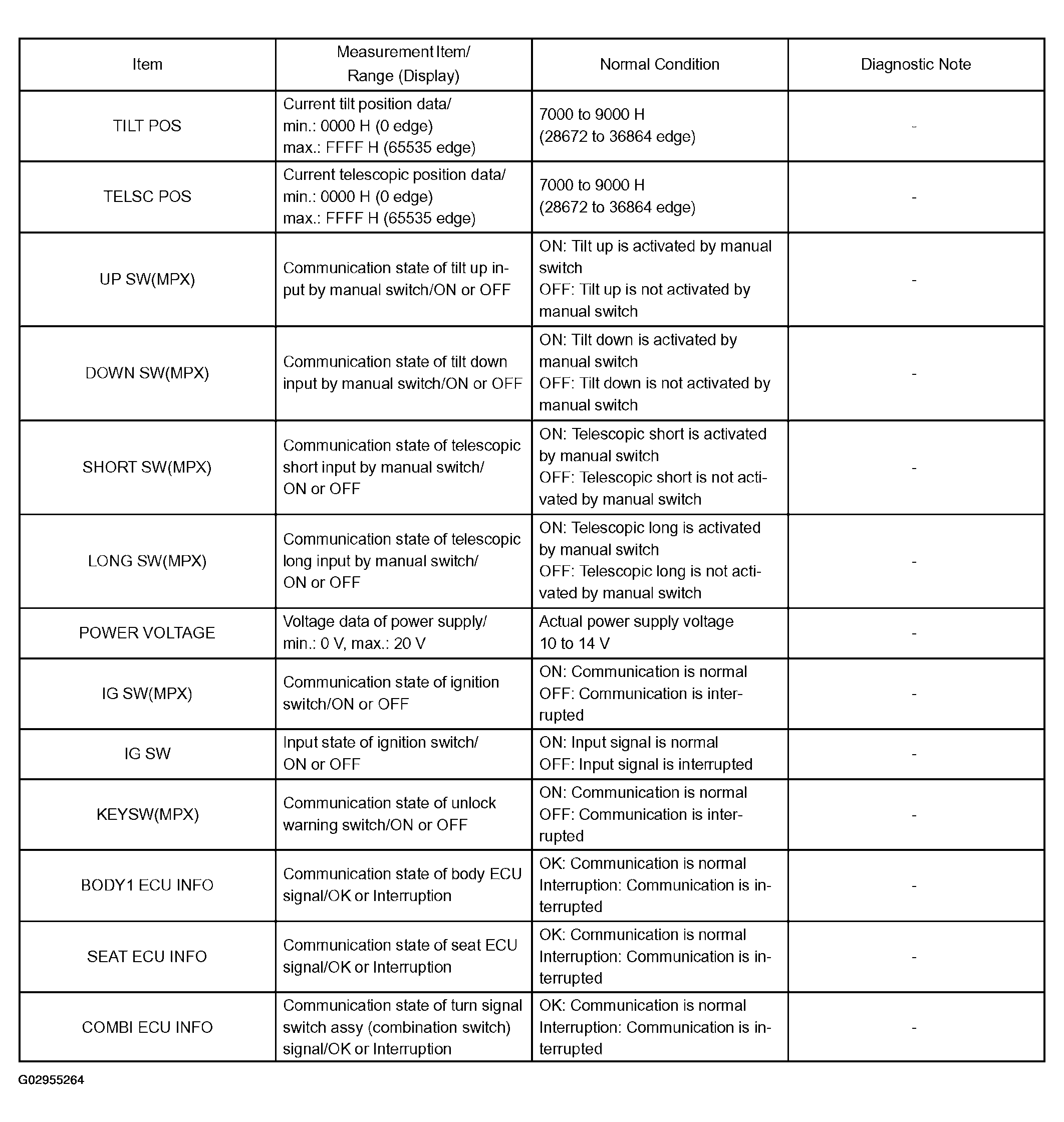

      Fig 1: Freeze Frame Data Table
      G02955264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
