Specified Torque For Standard Bolts

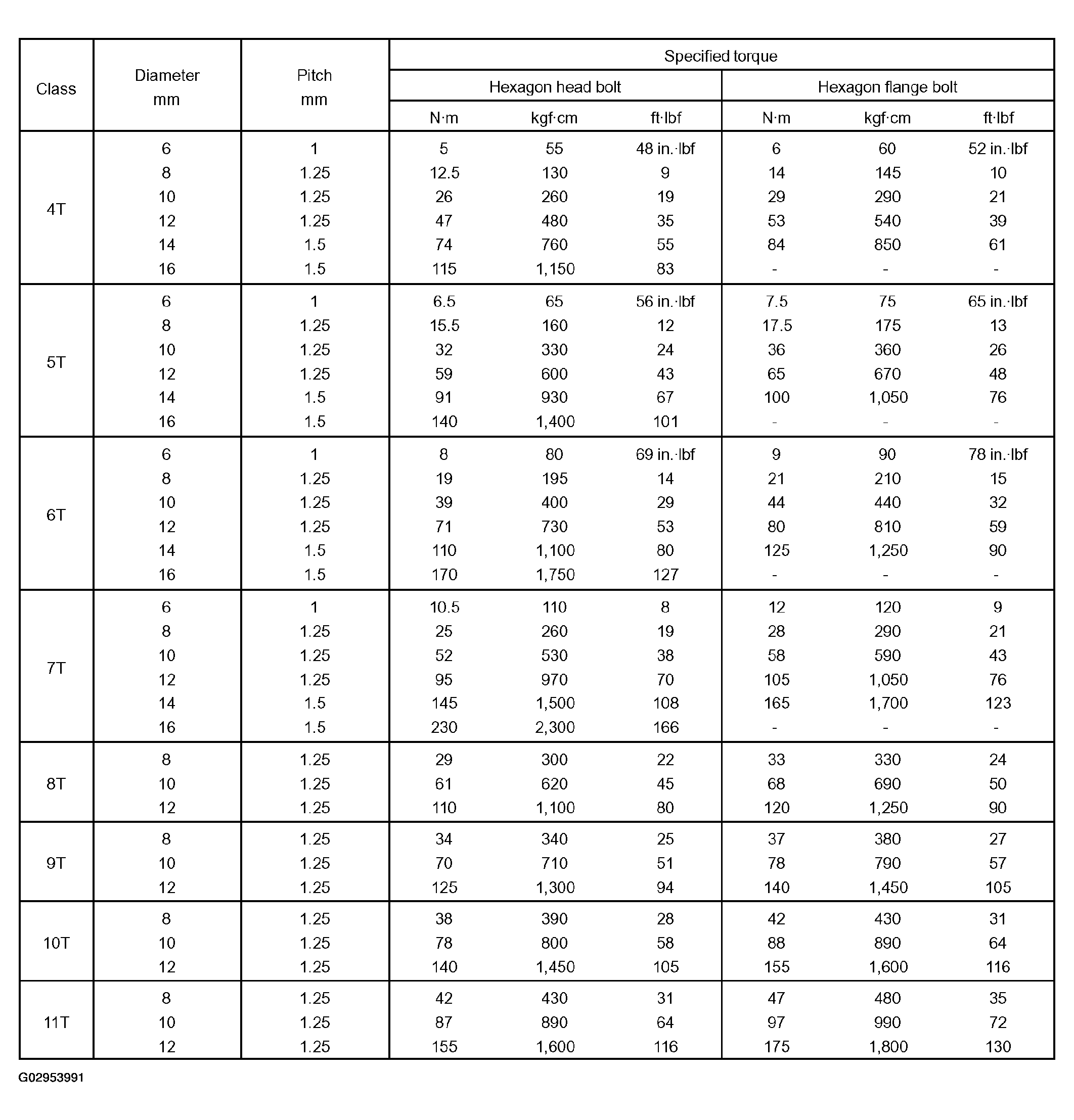

Fig 1: Specified Torque For Standard Bolts Table
G02953991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
