System Diagram

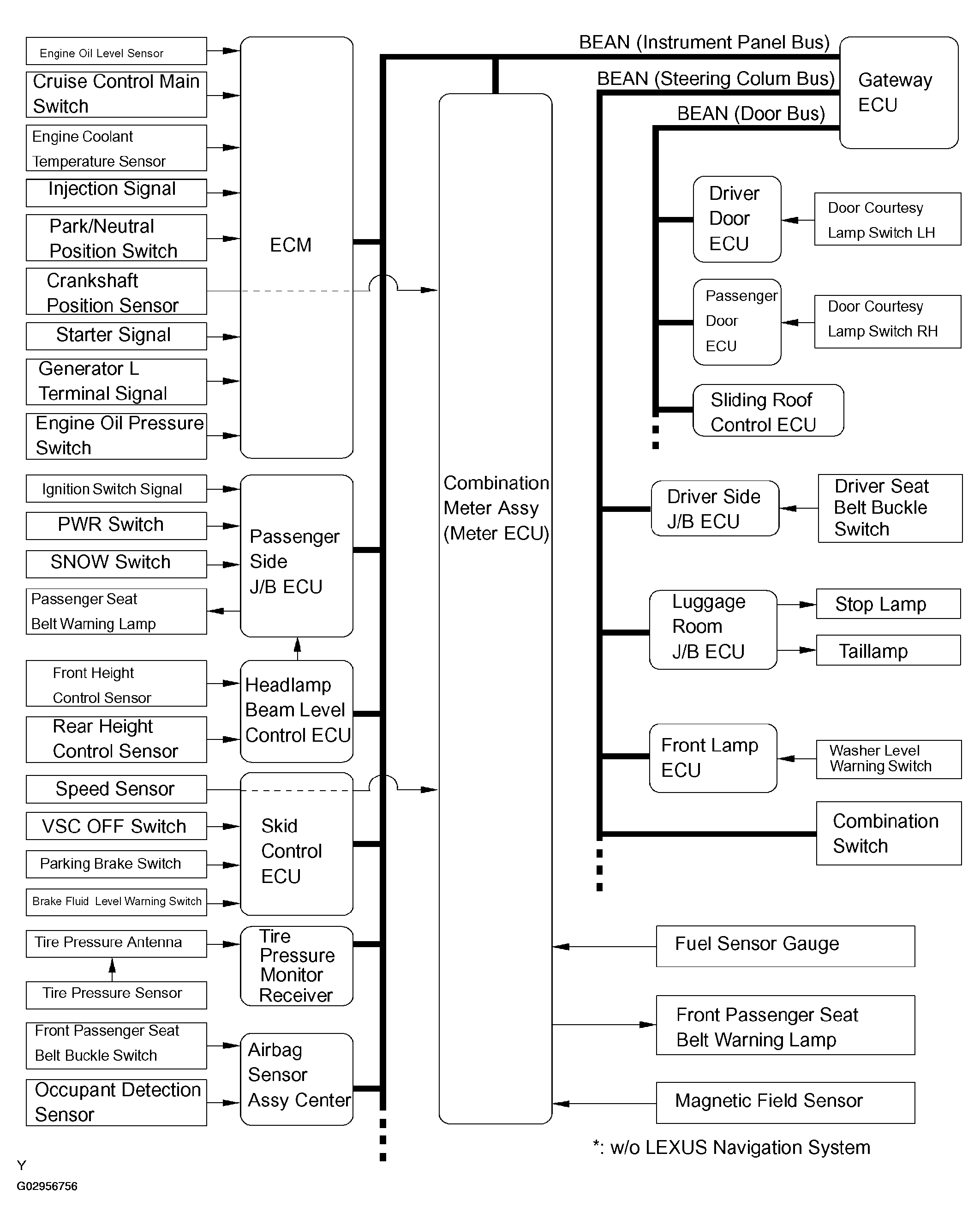

Fig 1: Identifying Combination Meter System Diagram

G02956756

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
