Mirror Facing Direction Is Not Memorized: Wiring Diagram

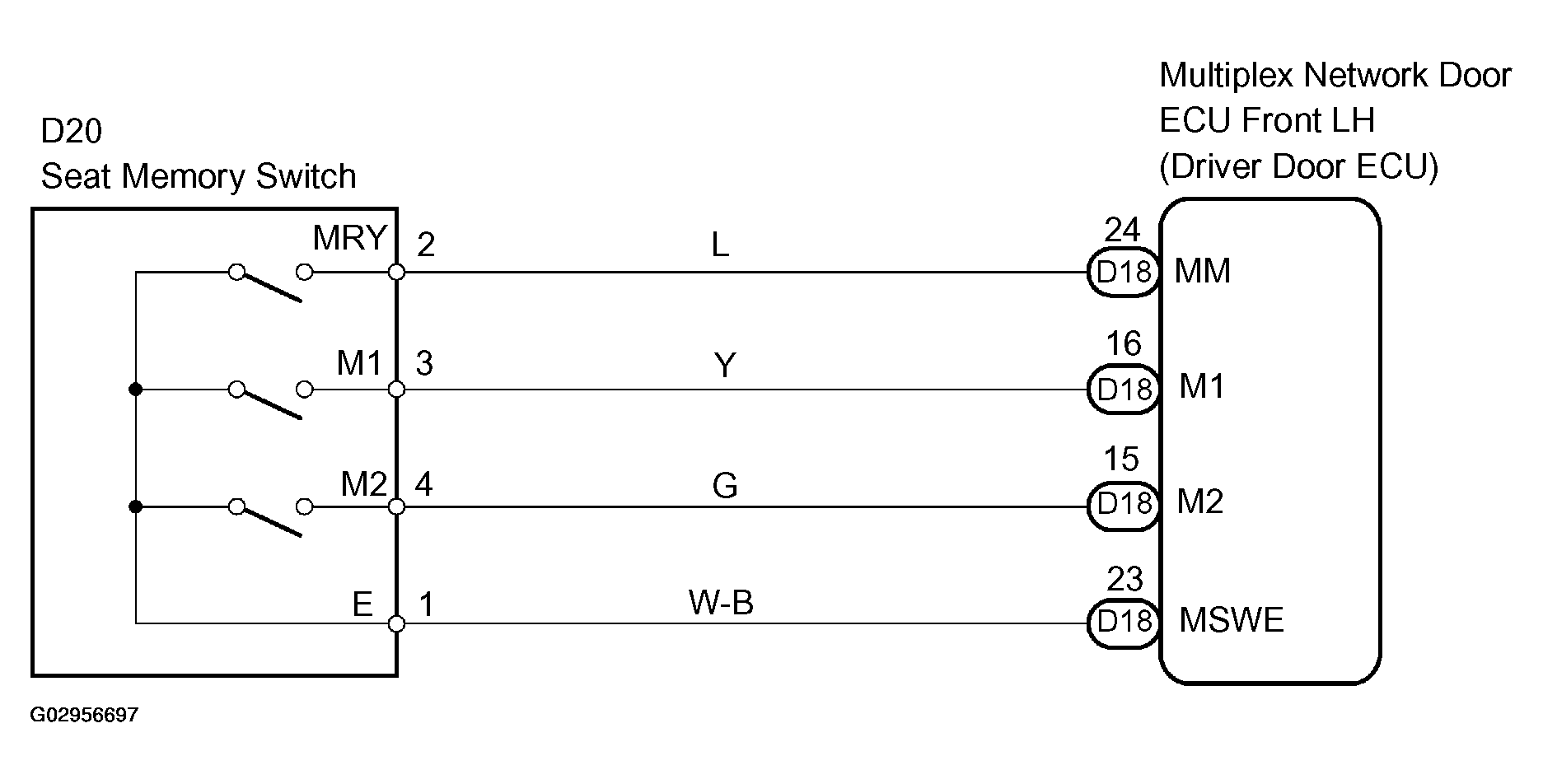

Fig 1: Mirror Facing Direction Is Not Memorized Wiring Diagram
G02956697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
