Engine Immobilizer System - Diagnostics: Location

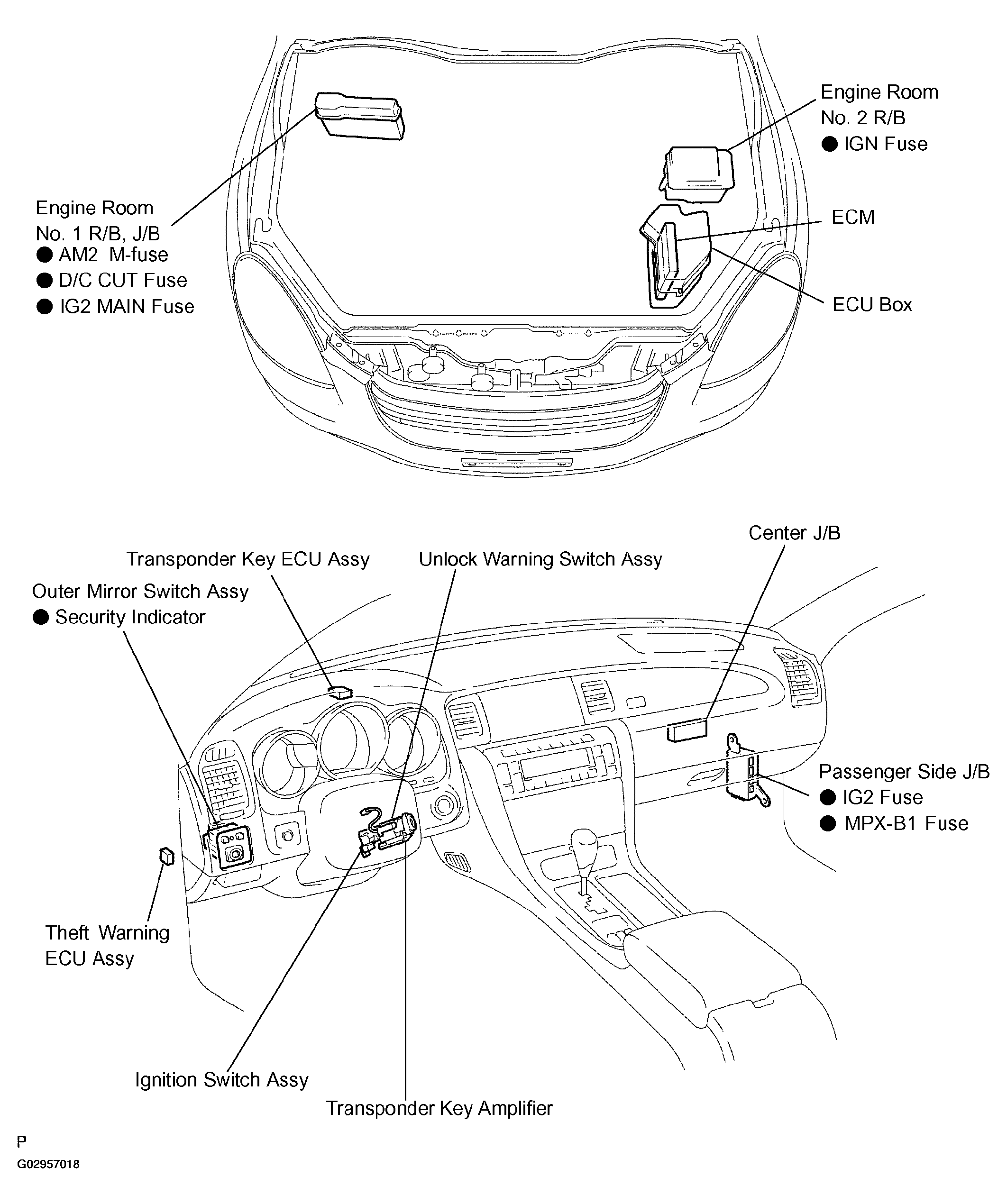

Fig 1: Identifying Location Of Engine Immobilizer System Components
G02957018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
