LEXUS Navigation System - Diagnostics: Location

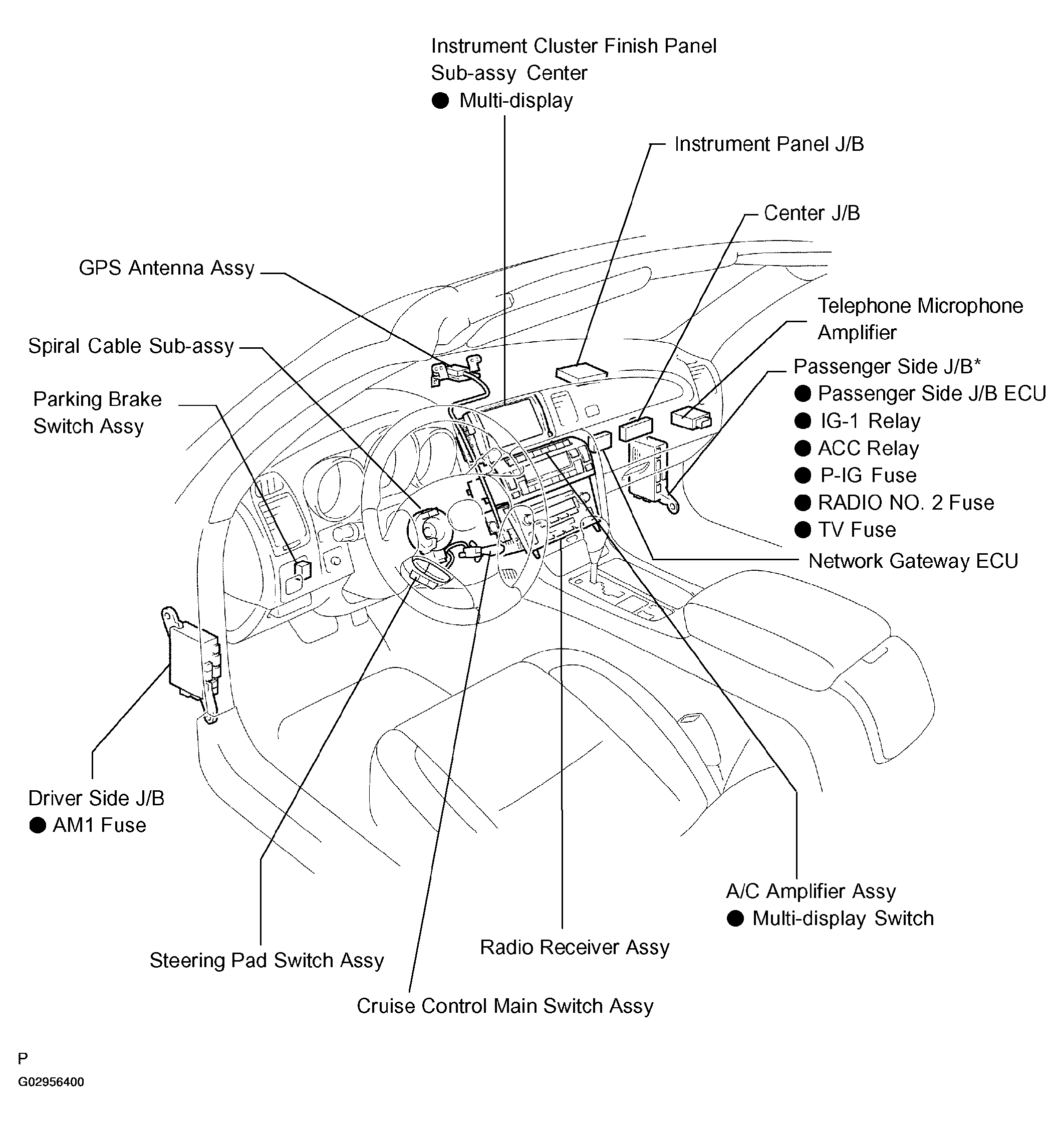

Fig 1: Identifying Lexus Navigation System Components & Replacements Location (1 Of 2)
G02956400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

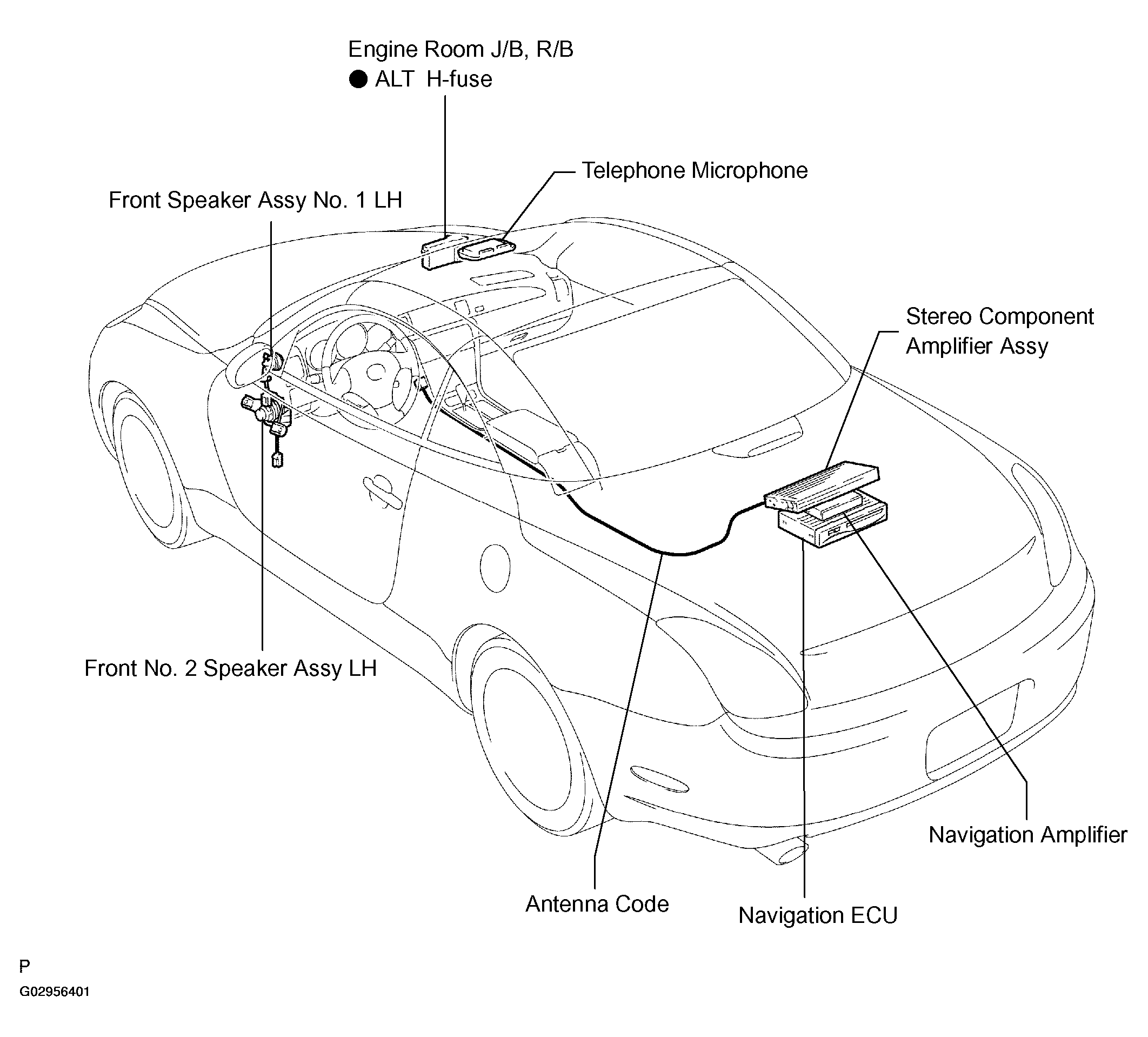

Fig 2: Identifying Lexus Navigation System Components & Replacements Location (2 Of 2)
G02956401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
