Vehicle Lift And Support Locations

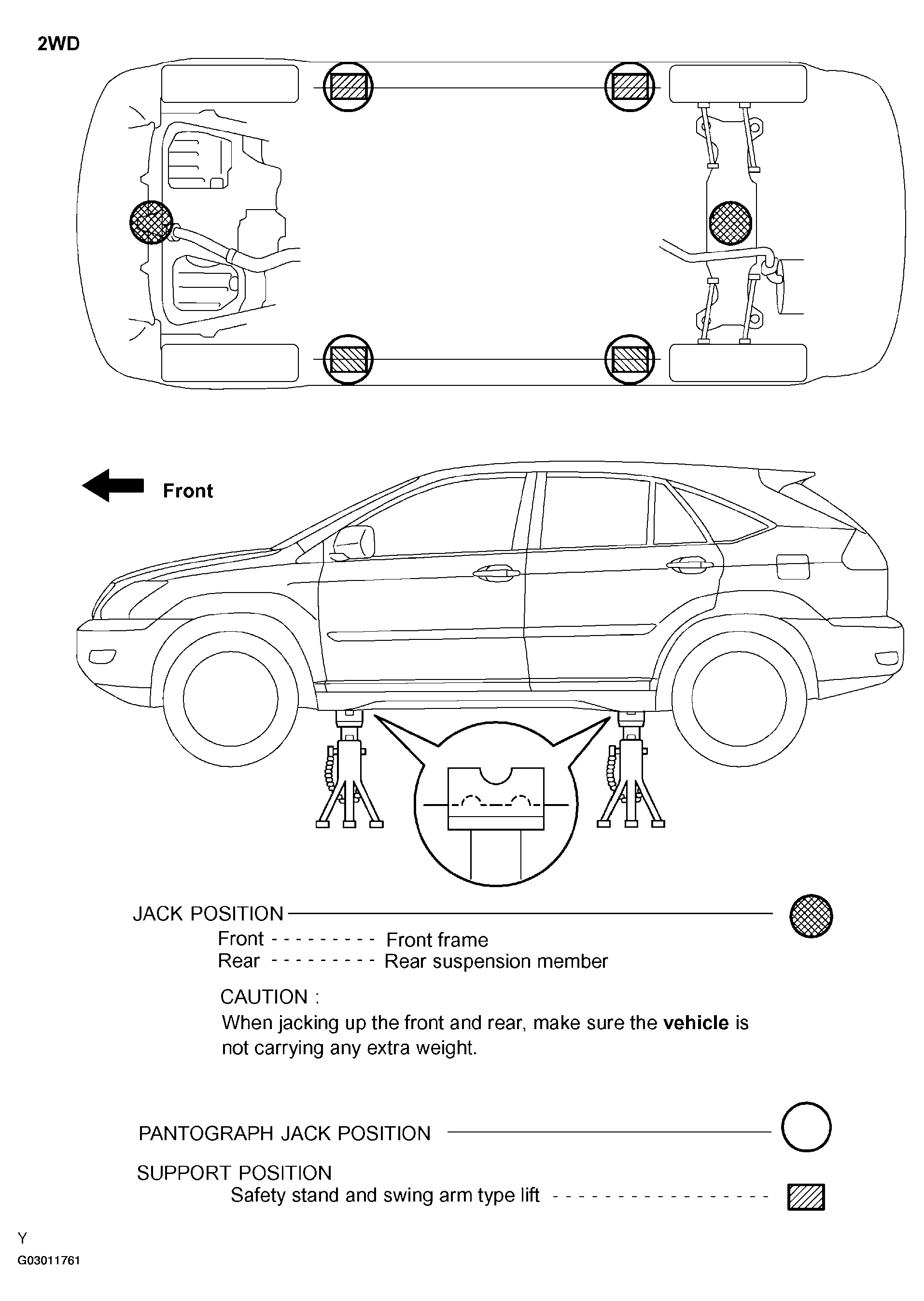

Fig 1: Identifying Vehicle Lift And Support Locations
G03011761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

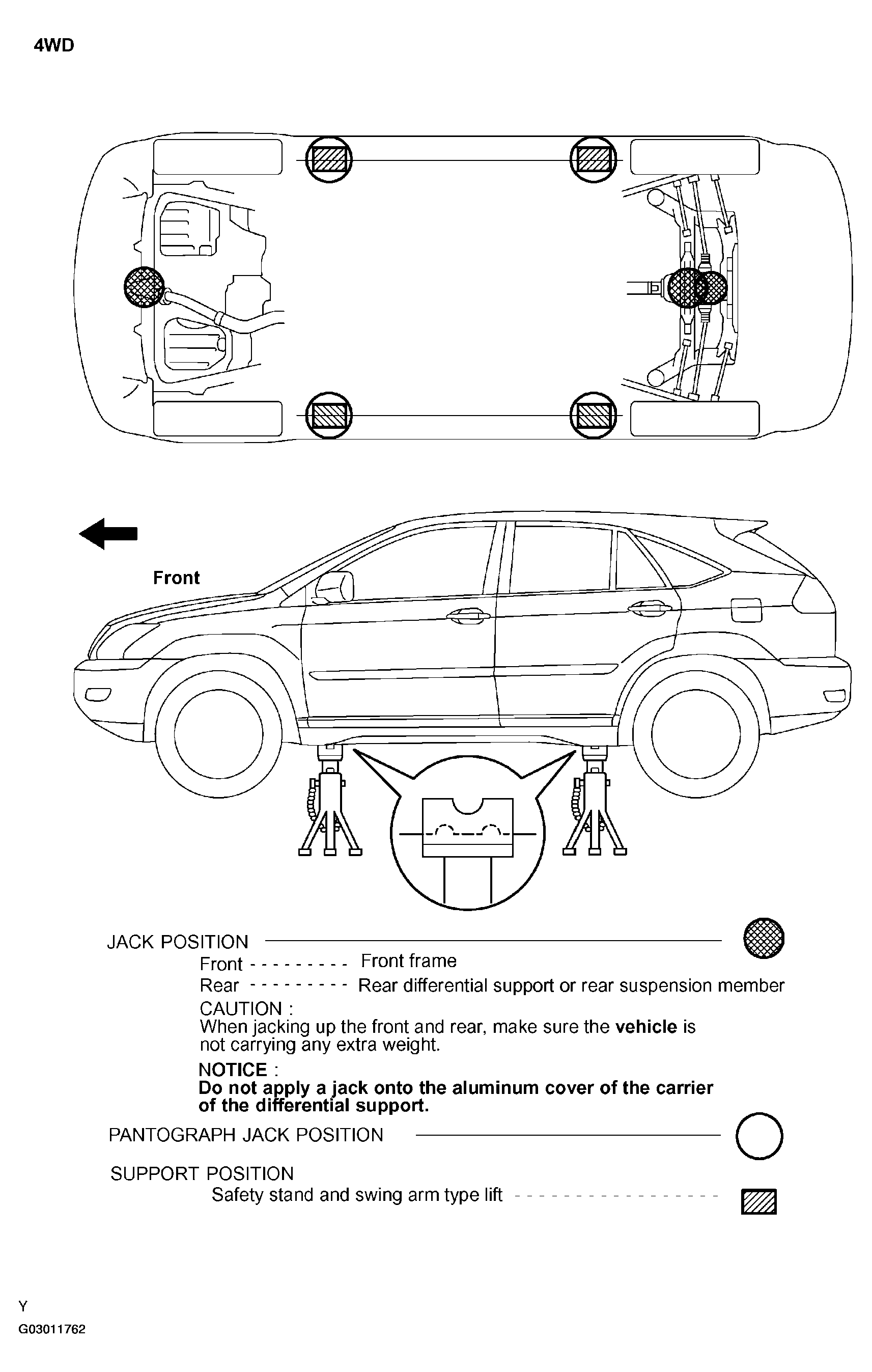

Fig 2: Identifying Vehicle Lift And Support Locations - 4WD
G03011762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

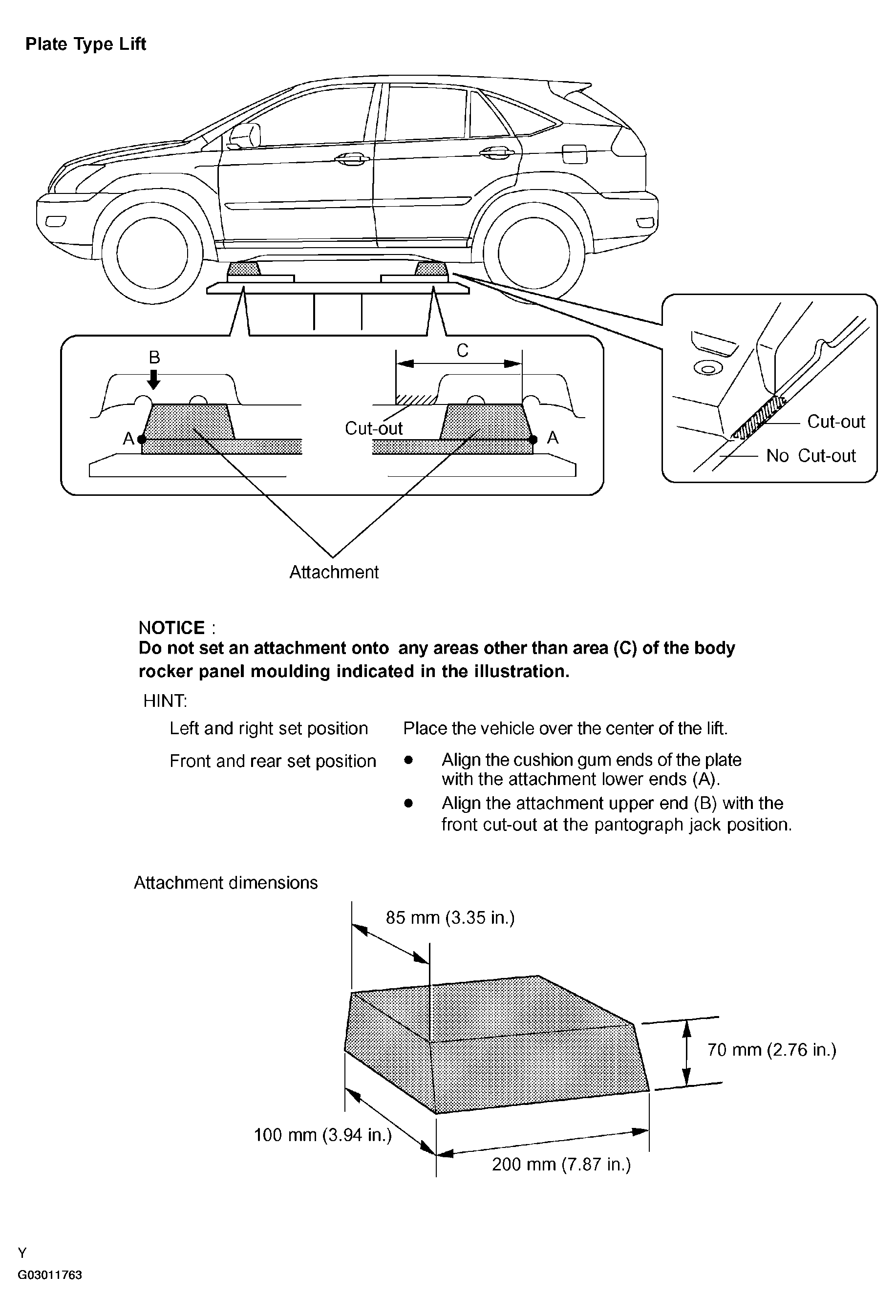

Fig 3: Identifying Plate Type Lift
G03011763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
