DTC U0122/64: Lost Communication With Vehicle Dynamics Control Module: Wiring Diagram

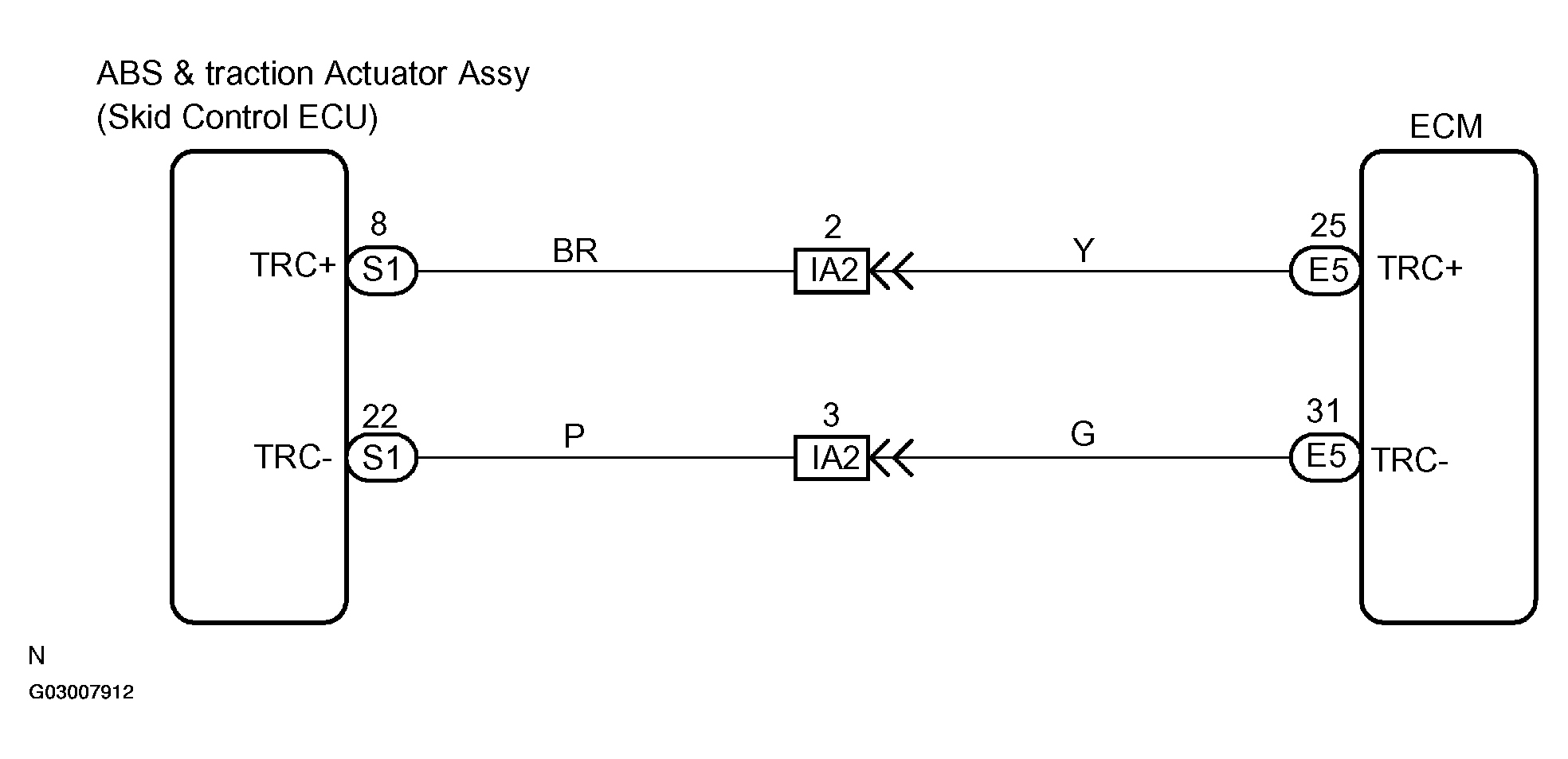

Fig 1: Lost Communication With Vehicle Dynamics Control Module - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
