Pattern Select Switch Circuit: Wiring Diagram

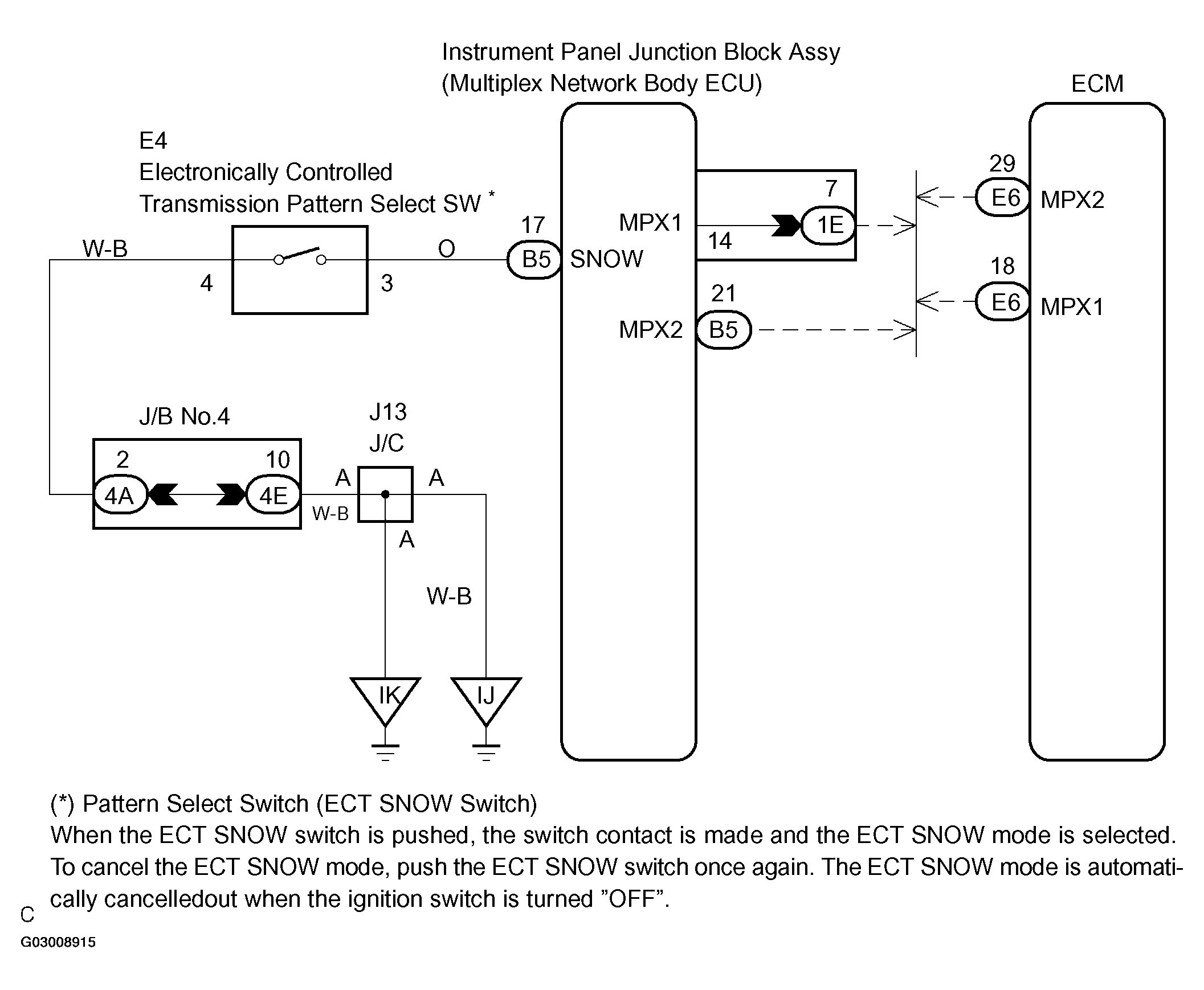

Fig 1: Wiring Diagram - Pattern Select Switch Circuit
G03008915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
