Cruise Control Ecu ASSY: Replacement

WARNING: This page is about a different car, the 2004 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT DOOR SCUFF PLATE LH (See  REPLACEMENT  )
  2. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY LOWER (See  REPLACEMENT  )
  3. REMOVE CRUISE CONTROL ECU ASSY
    1. Disconnect the connector.
    2. Remove the nut and cruise control ECU (distance control ECU) assy.

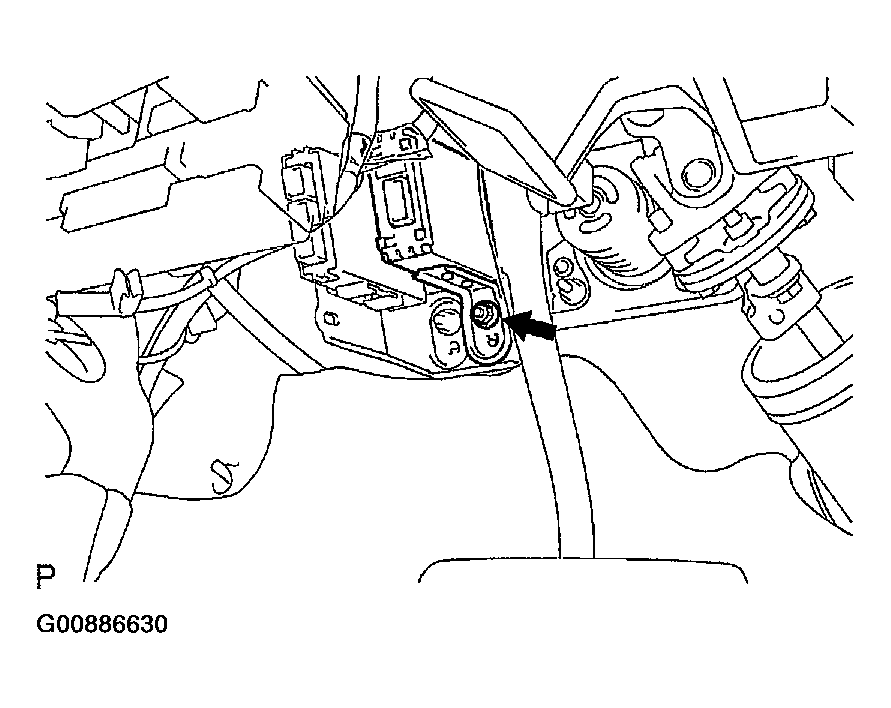

      Fig 1: Removing Cruise Control ECU Assy
      G00886630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL CRUISE CONTROL ECU ASSY
    1. Install the cruise control ECU (distance control ECU) assy with the nut.
      NOTE: Do not install the cruise control ECU (distance control ECU) assy if it has been damaged or received some sort of shock.
