Lexus
>>
2005
>>
RX 330 AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
SFI System - Diagnostics
>>
Fuel Pump Control Circuit
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Fuel Pump Control Circuit: Wiring Diagram

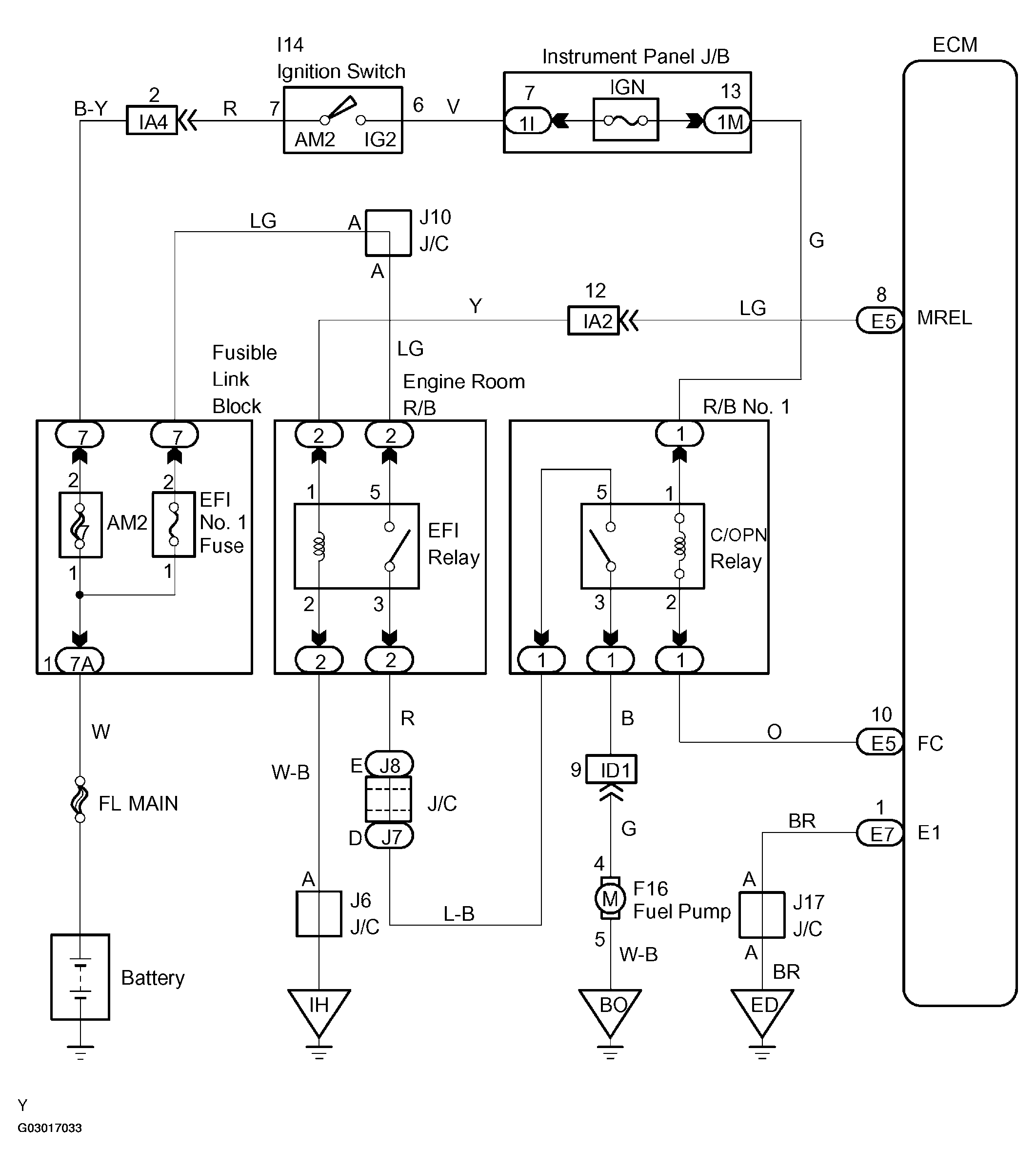

Fig 1: Fuel Pump Control Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
