Central Control Module: Service and Repair

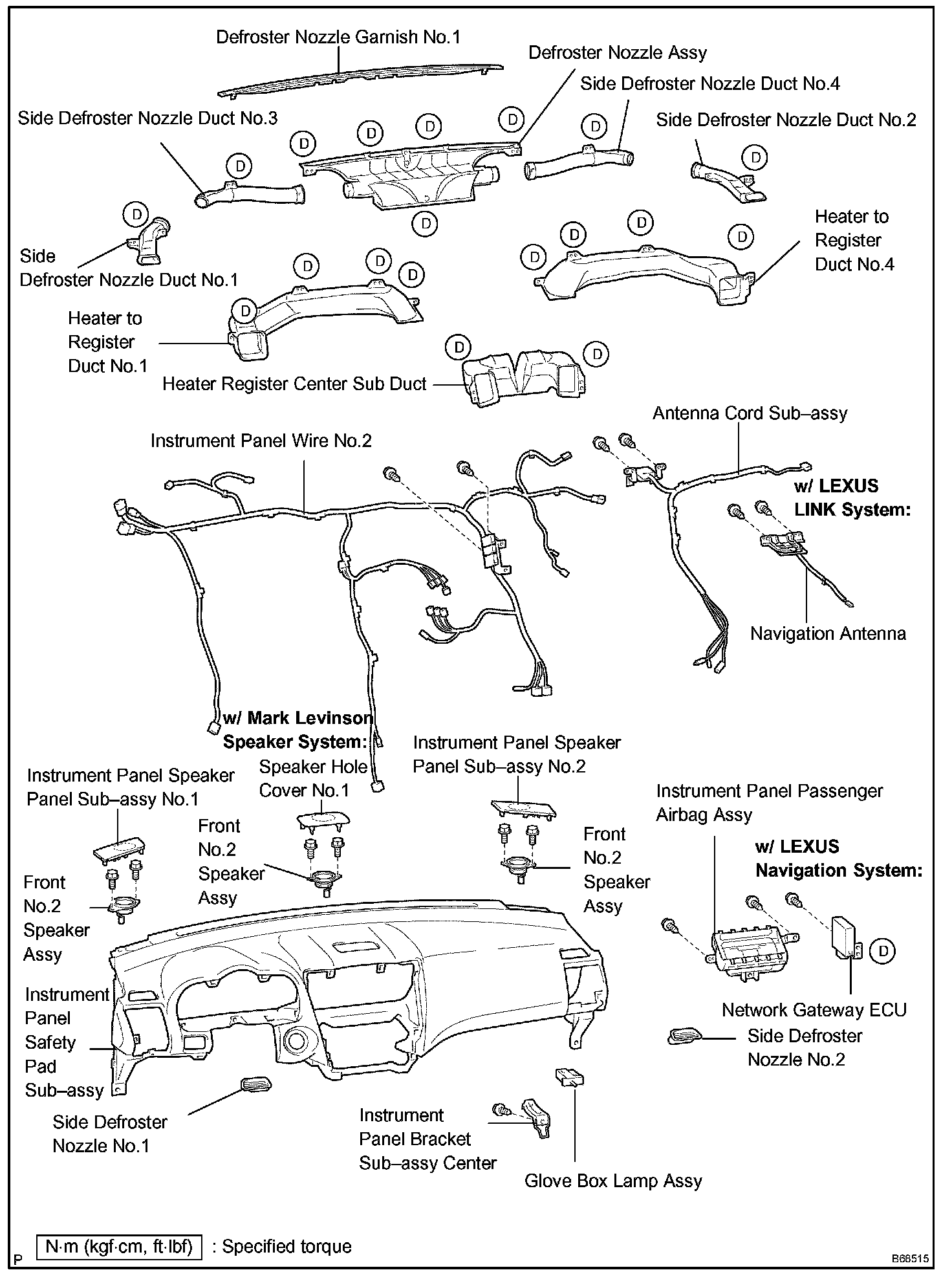

Instrument Panel/Meter:






NETWORK GATEWAY ECU

REPLACEMENT
1. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO.2
2. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY




3. REMOVE NETWORK GATEWAY ECU
a. Disconnect the connector.
b. Remove the screw and the network gateway ECU.
