Pattern Select Switch Circuit (PWR Mode Switch): Wiring Diagram

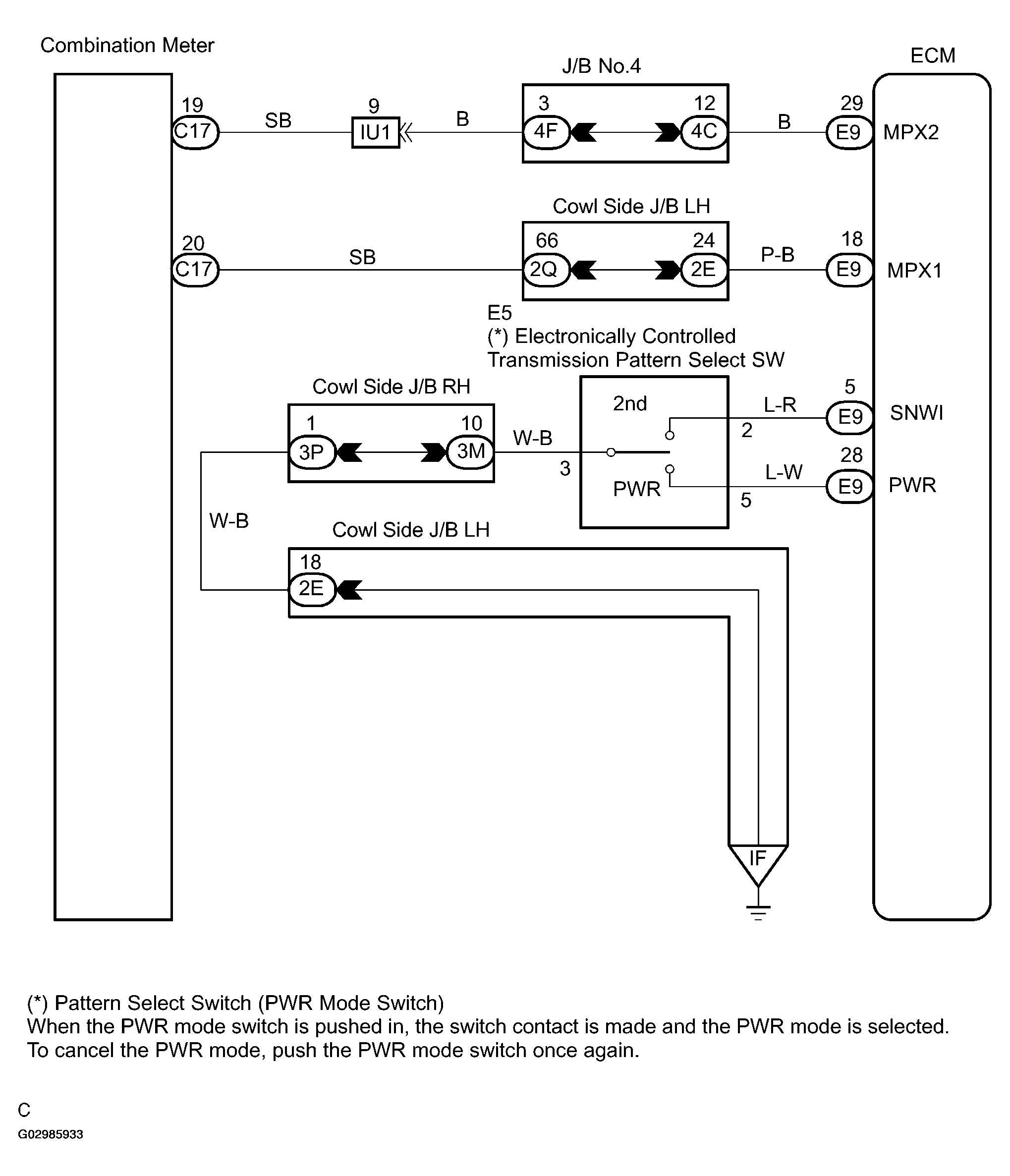

Fig 1: Pattern Select Switch Wiring Diagram
G02985933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
