Airbag Sensor Assembly: Components

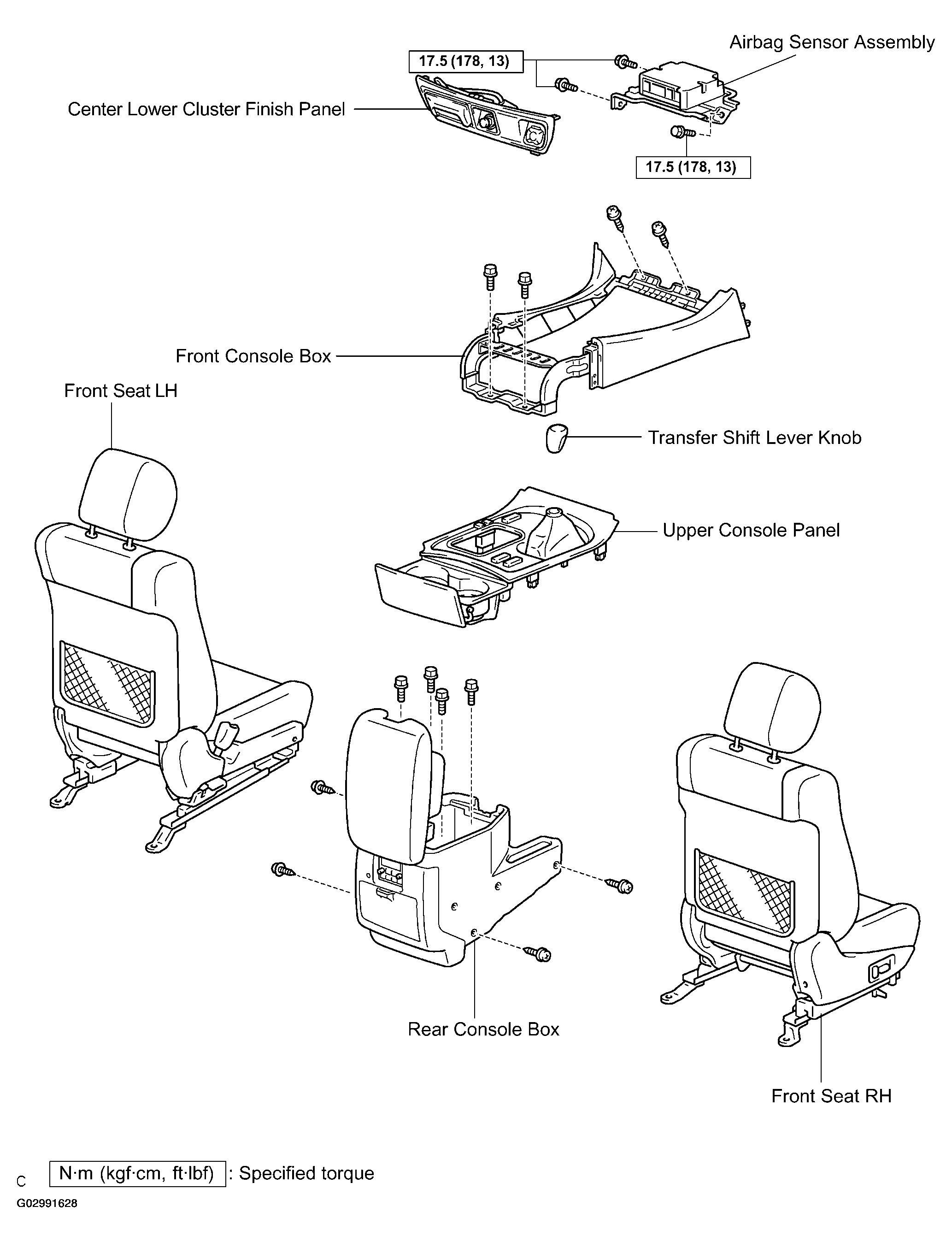

Fig 1: Airbag Sensor Assembly Replacement Components With Torque Specifications
G02991628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
