Power Source Circuit

POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit supplies power to operate the power window master switch.

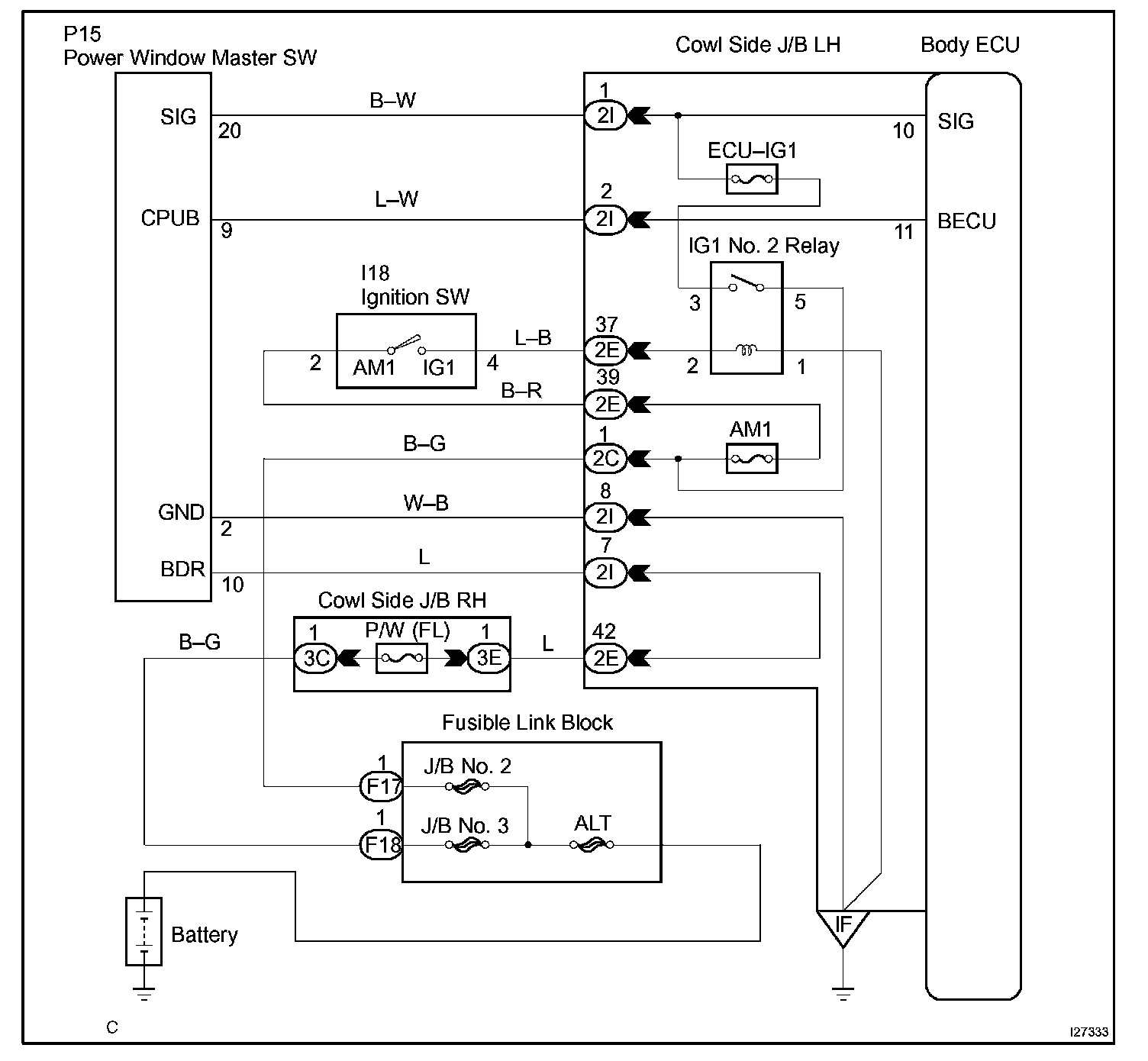

Wiring Diagram:

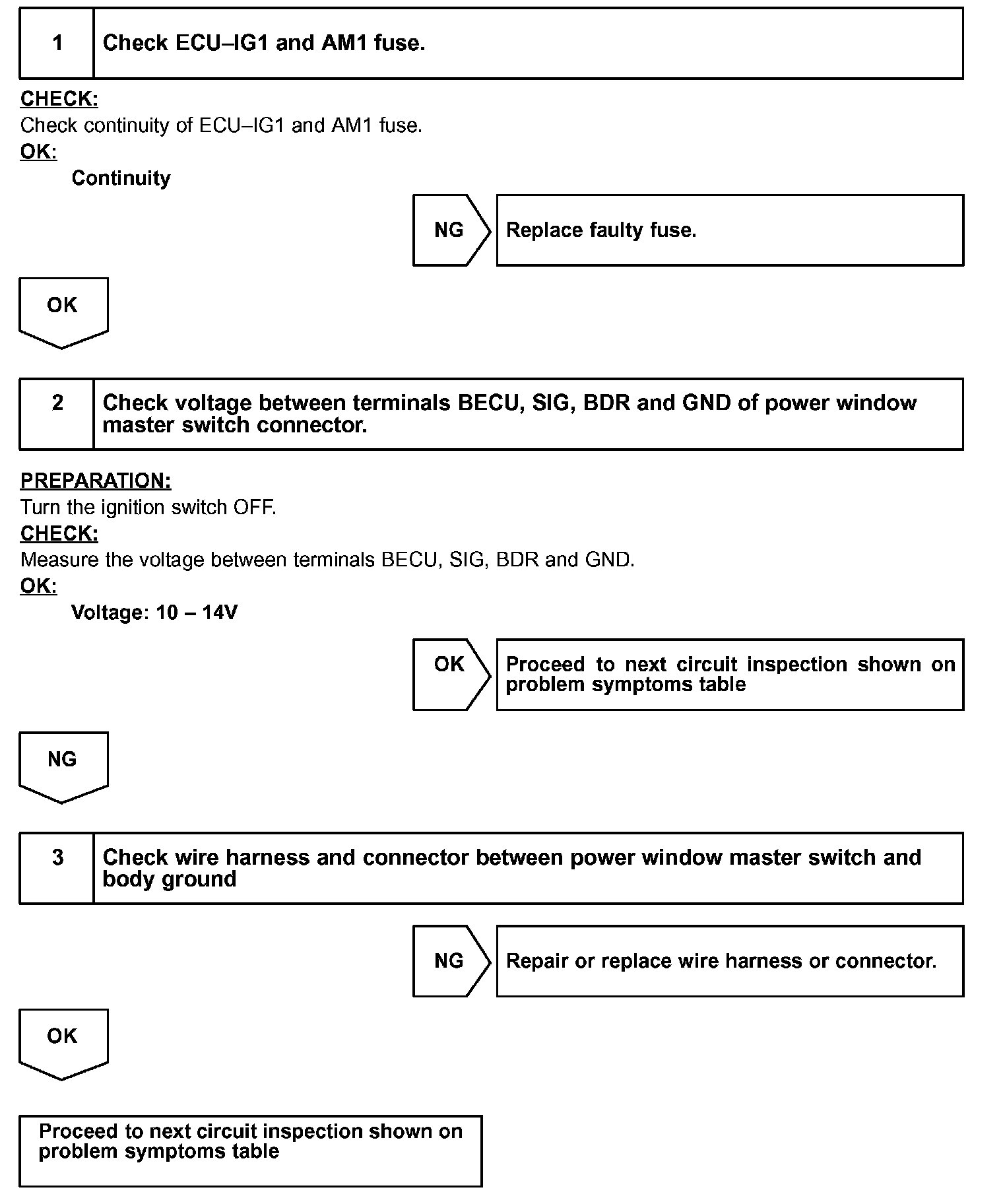

Step 1 - 3:




INSPECTION PROCEDURE
