Location

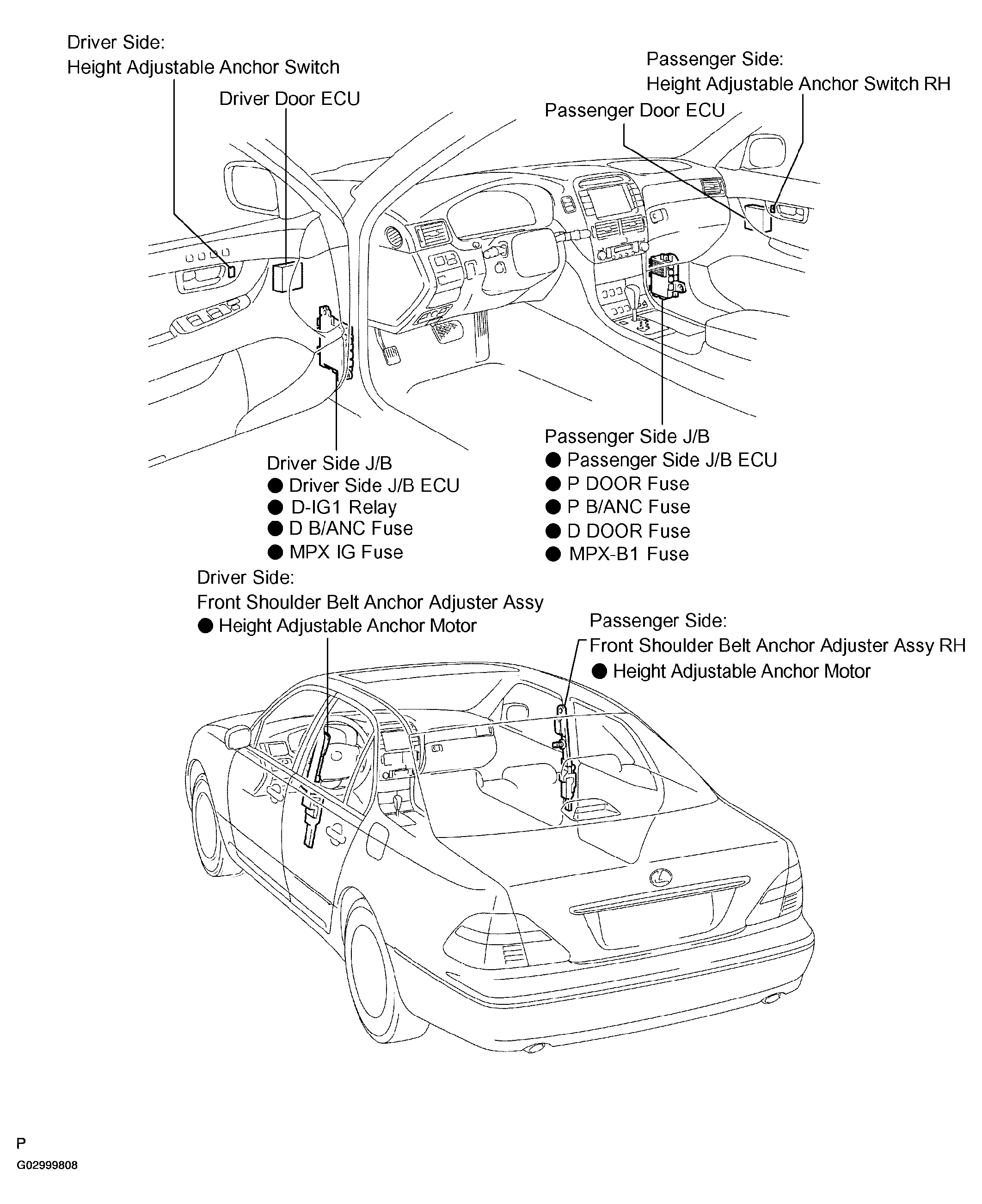

Fig 1: Identifying Power Shoulder Belt Anchorage System Component Locations
G02999808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
