DTC B2000: Right Side Motor Line Malfunction Hi: Wiring Diagram

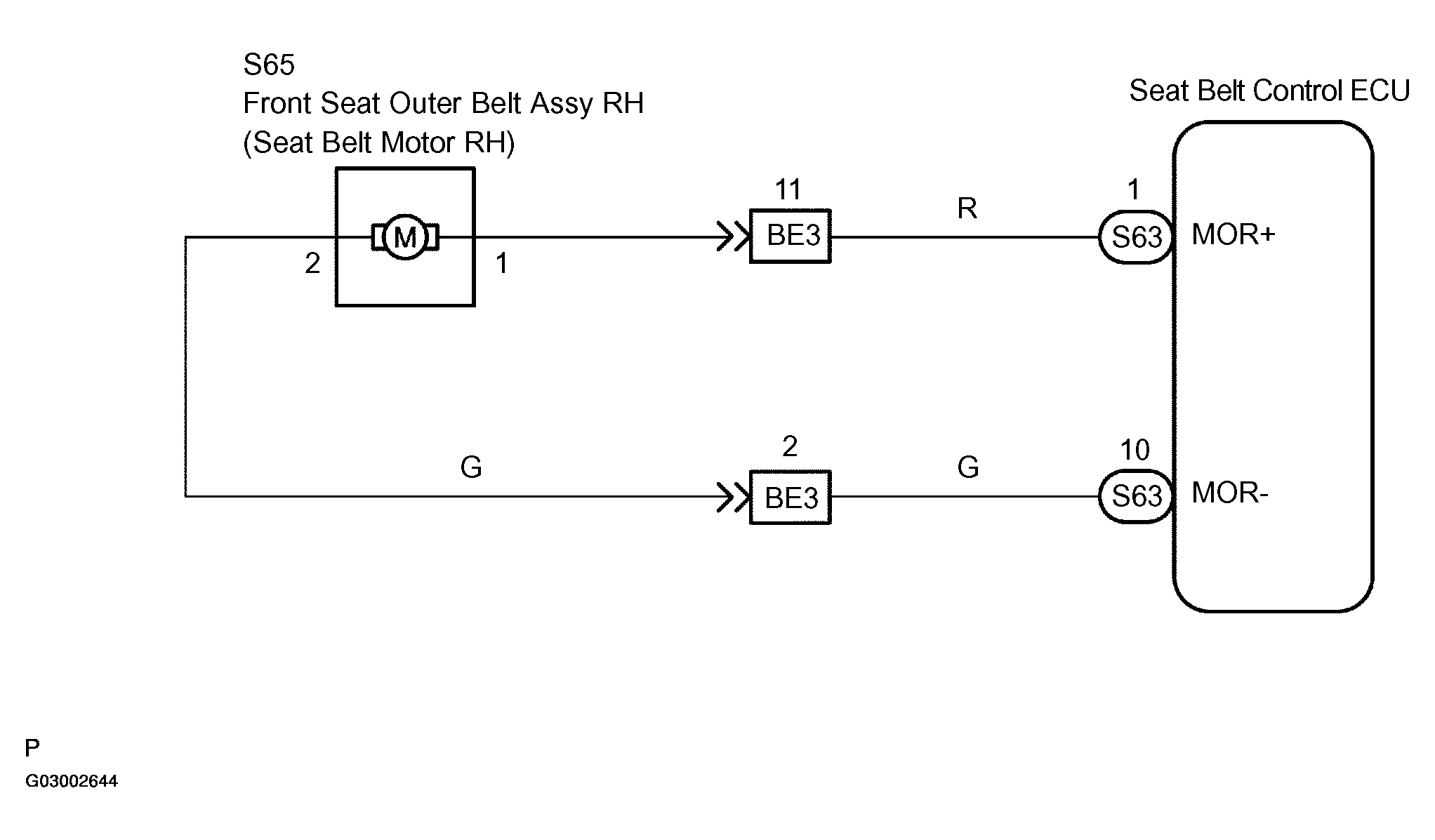

Fig 1: Right Side Motor Line Malfunction HI - Wiring Diagram
G03002644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
