LS 430
>>
Repair and Diagnosis
>>
Restraints
>>
Passive Restraints
>>
Power Shoulder Belt Anchorage System - Diagnostics
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

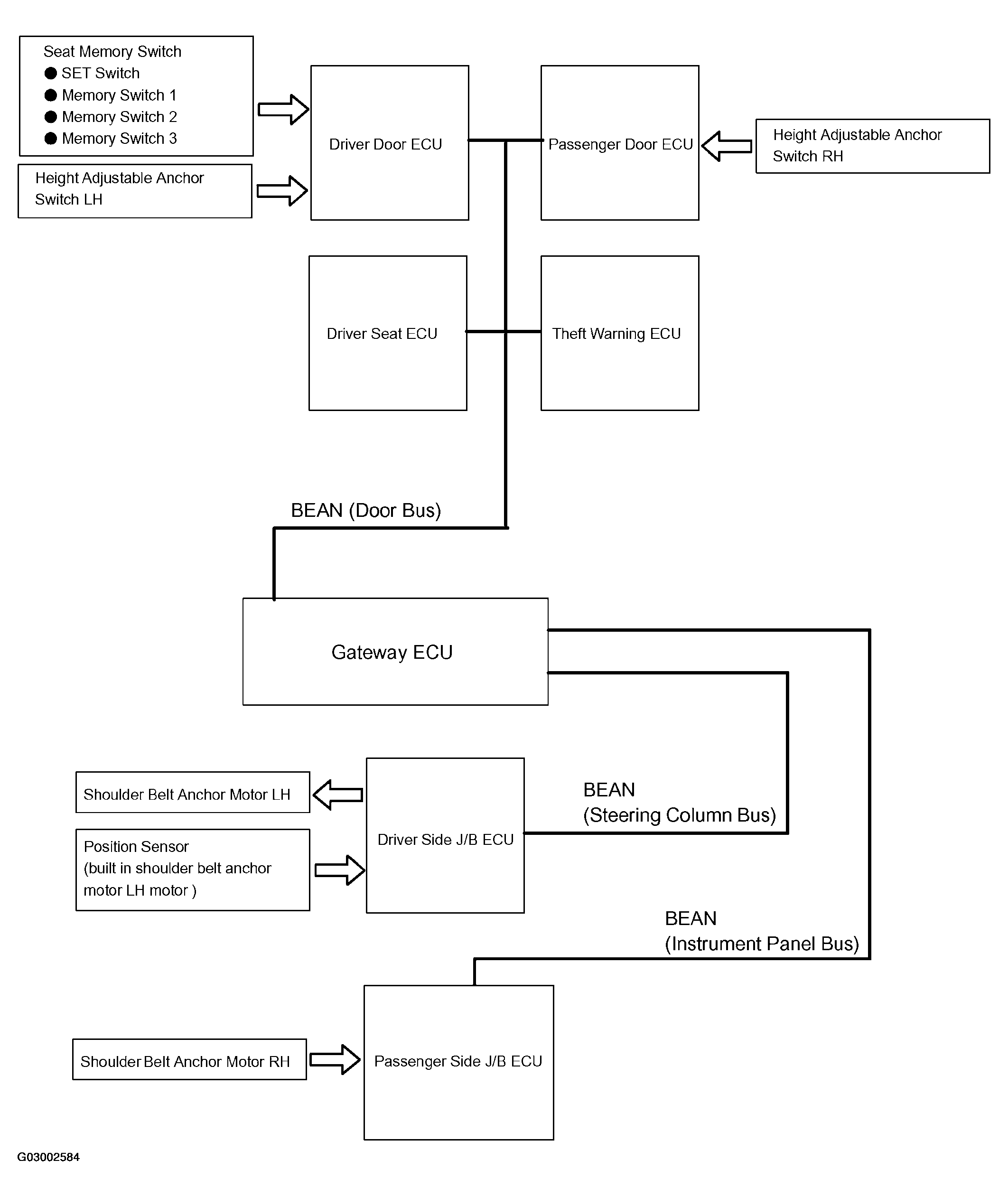

Fig 1: Power Shoulder Belt Anchorage System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

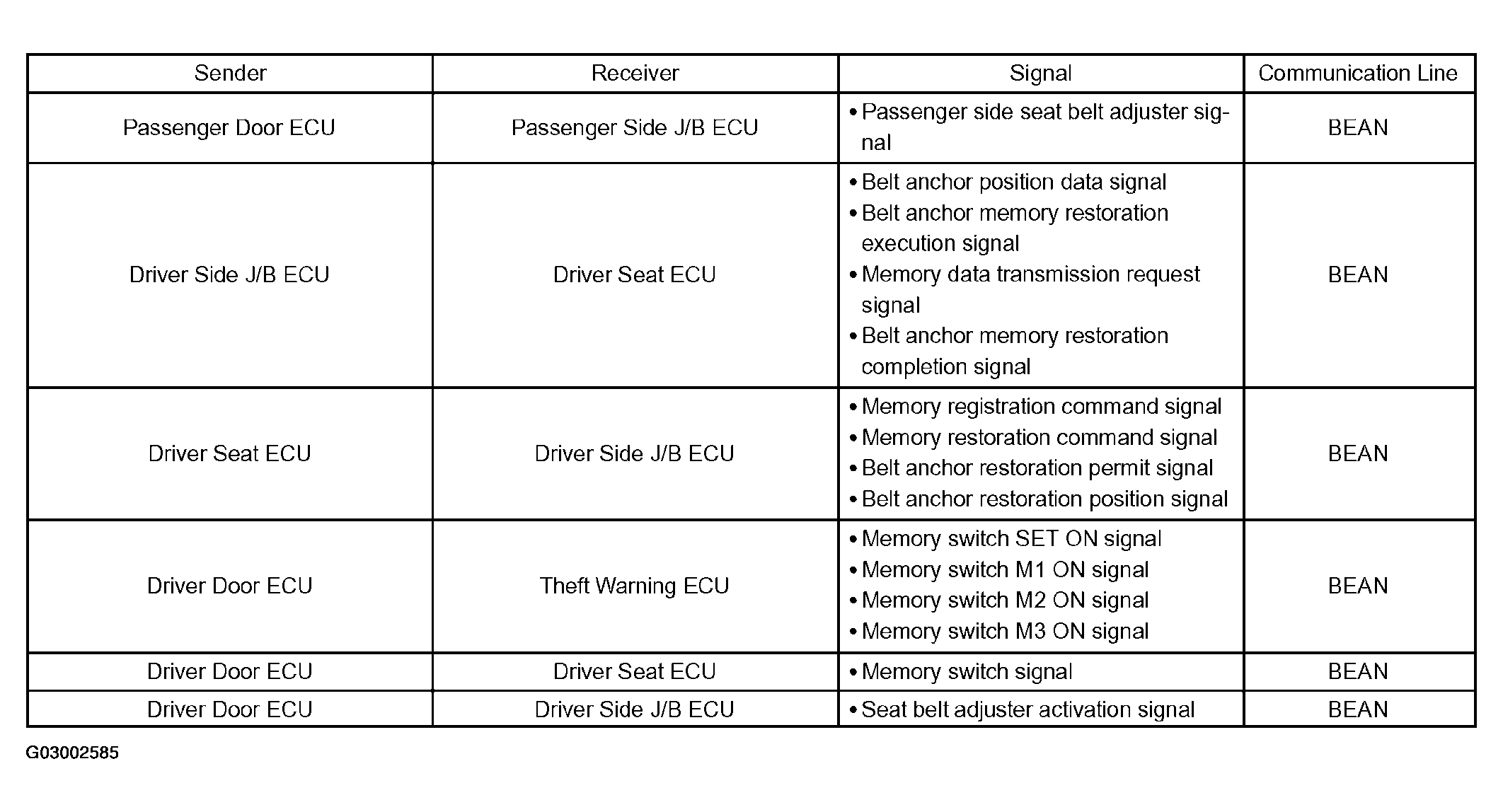

Fig 2: Power Shoulder Belt Anchorage System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
