Rear Door LH Ecu Power Source Circuit: Wiring Diagram

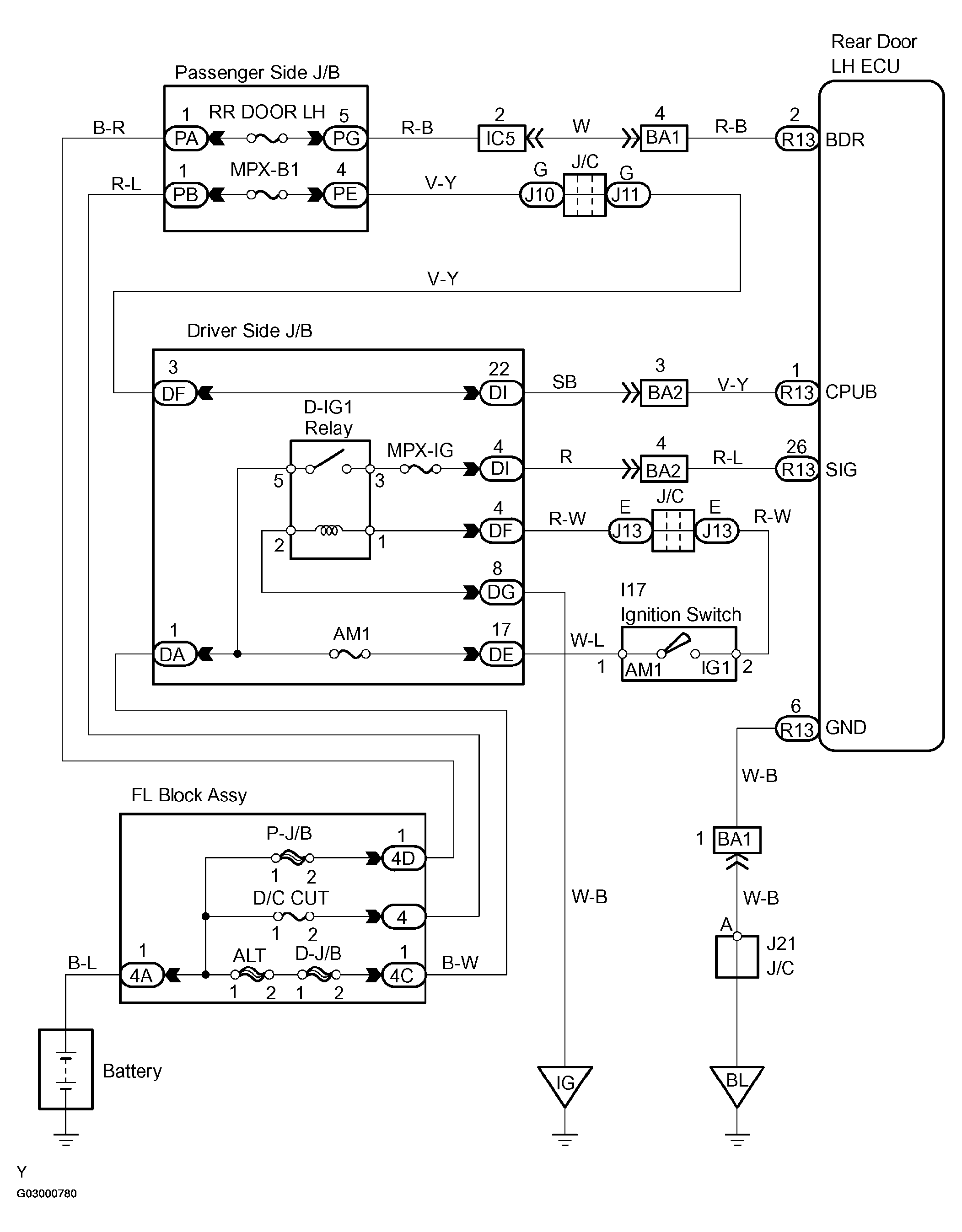

Fig 1: Rear Door LH ECU Power Source Circuit Wiring Diagram
G03000780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
