Driver Door Ecu Power Source Circuit: Wiring Diagram

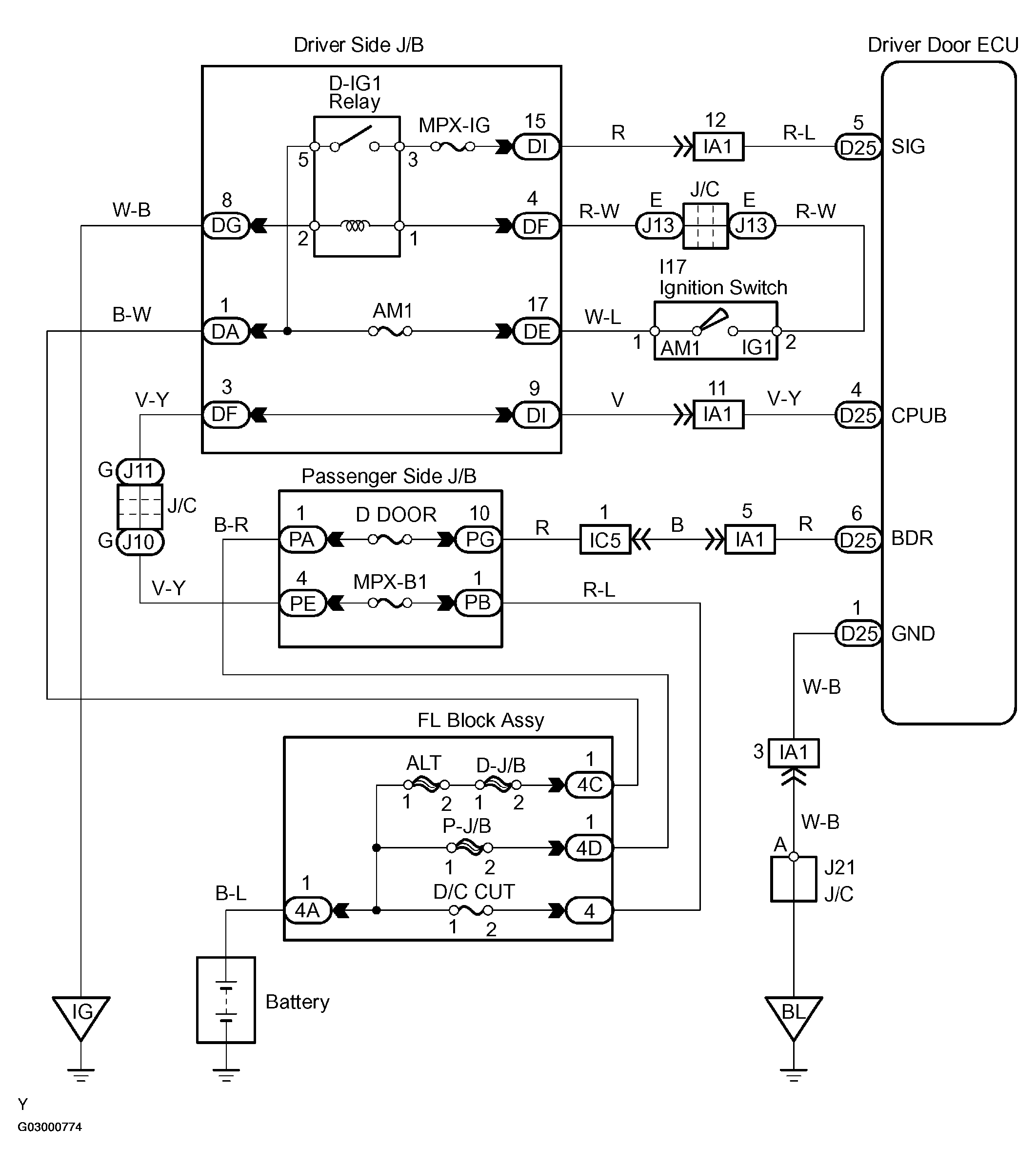

Fig 1: Driver Door ECU Power Source Circuit Wiring Diagram
G03000774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
