Position Sensor Circuit: Wiring Diagram

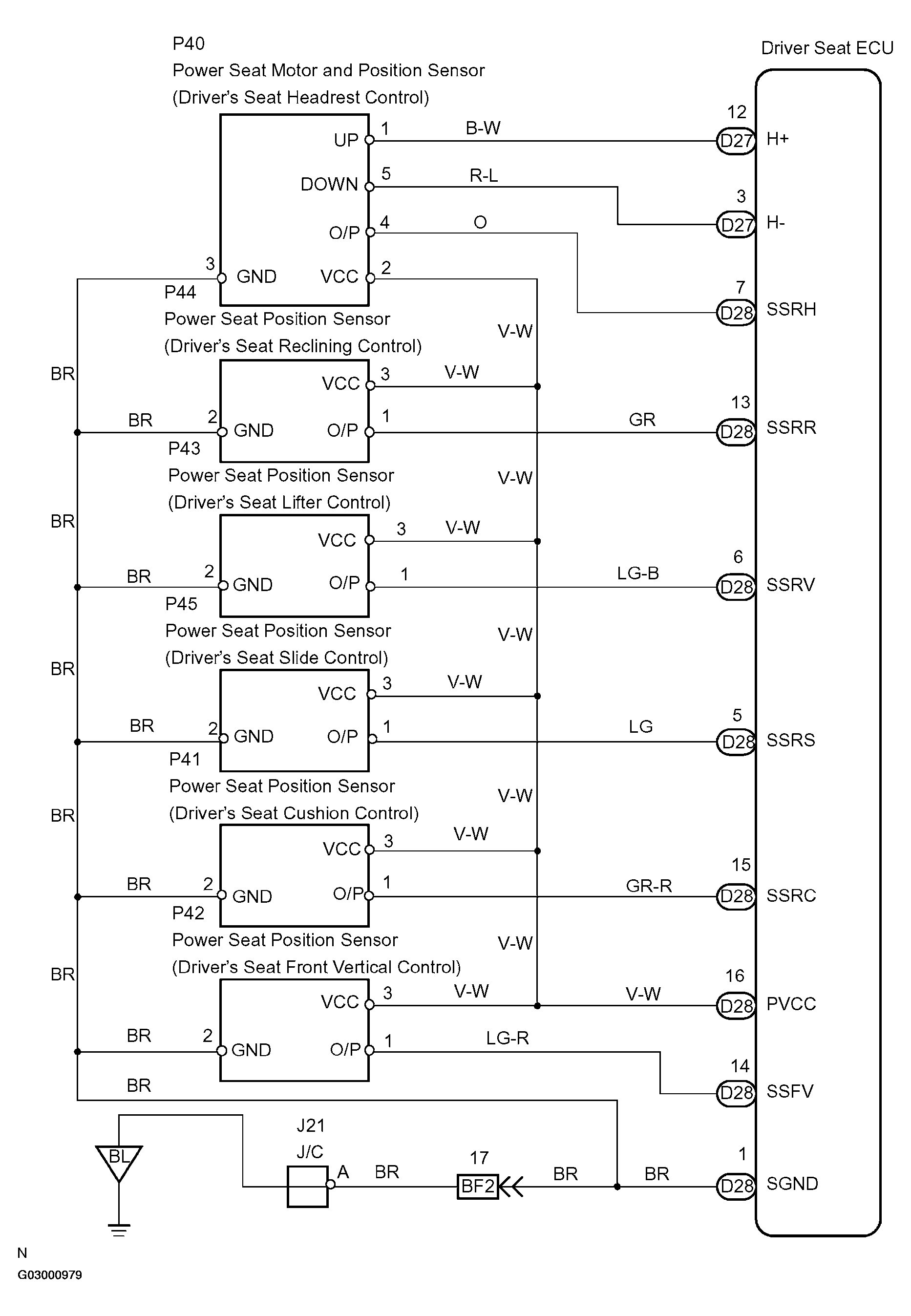

Fig 1: Position Sensor Wiring Diagram
G03000979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
